Discontinued.Door Closer - Dual Valve - # 3 Medium Duty -

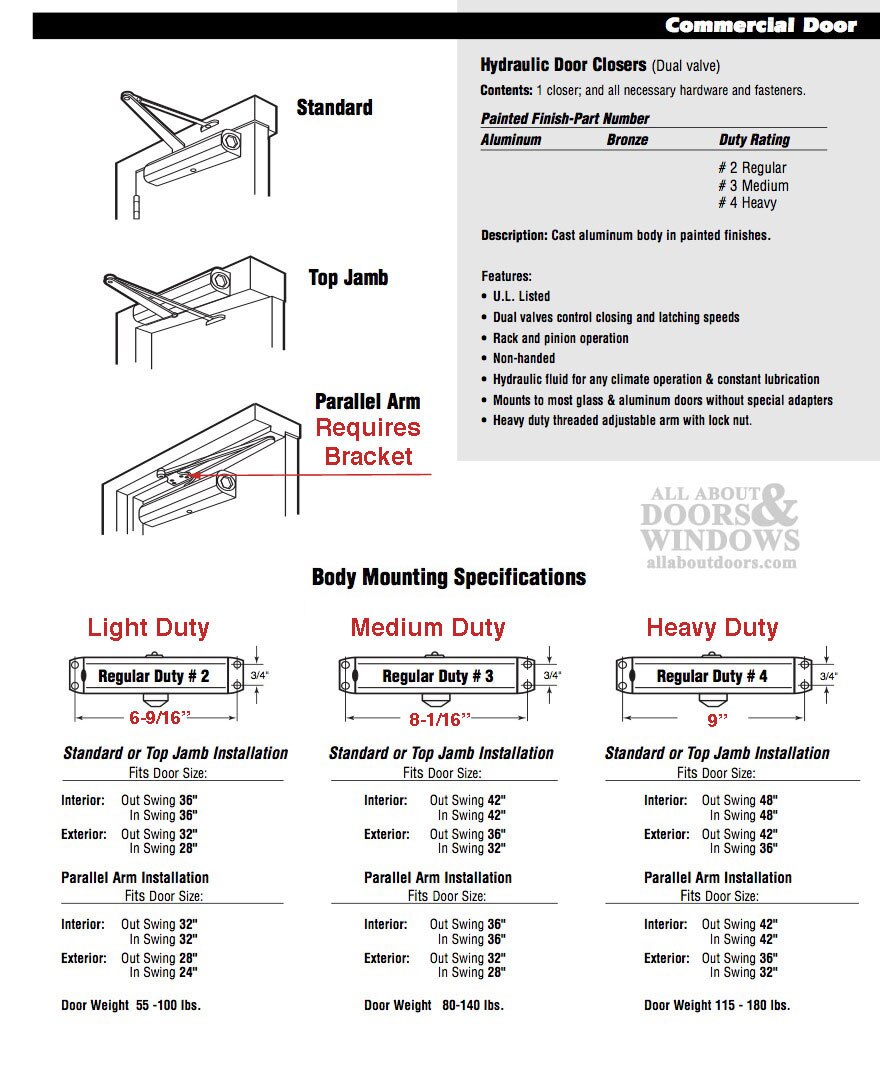

U.L. listed closer, Size: # 3; Exterior Door 32-36 inch width ( see additional images)
Door Weight: 80-140 pounds
Screw Holes Width: 8-1/16 inch (205mm)
Screw Holes Height: 3/4 inch (19mm)
Adjustment Values: 2 - Speed and Latching
Dual valves to control closing and latching speeds.
Rack and pinion operation.
Non-handed for standard, top-jamb or parallel arm installation (requires bracket)
Hydraulic fluid for any climate operation and constant lubrication.
Mounts to most glass and aluminum doors without special adapters.
heavy duty threaded adjustable arm with lock nut.
Cast aluminum body in painted finish.
Includes one closer and all necessary hardware, except parallel bracket
Available in Bronze or Aluminum
NOTE 1: Closers are rated Light Duty #2 Interior Doors to Heavy Duty #5 Exterior doors
NOTE 2: Screw hole mounting patterns vary depending on Closer
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: J 4611
