Discontinued Plastic Pivot Bar Assembly, Vinyl Window parts

This item is Discontinued and is no longer available.

Plastic pivot bar assembly for old style single hung vinyl window

Used on single hung vinyl window about 1995-99.

Sash is routed 1 inch tall  9/16 Thick (-) out to slide in.

1500 series old style single hung vinyl window

Plastic Pivot Bar: 1/2 inch x 2-5/16 inch

Nylon Housing Length: 2-5/16 inch

Nylon Housing Thickness:  7/16

Overall Length: 2-13/16 inch

Window used Constant Force Balance system, 1/2 thick single coil 1-1/8 wide.

Pivot Lock Shoe was 1-1/4 wide.

Option 1:

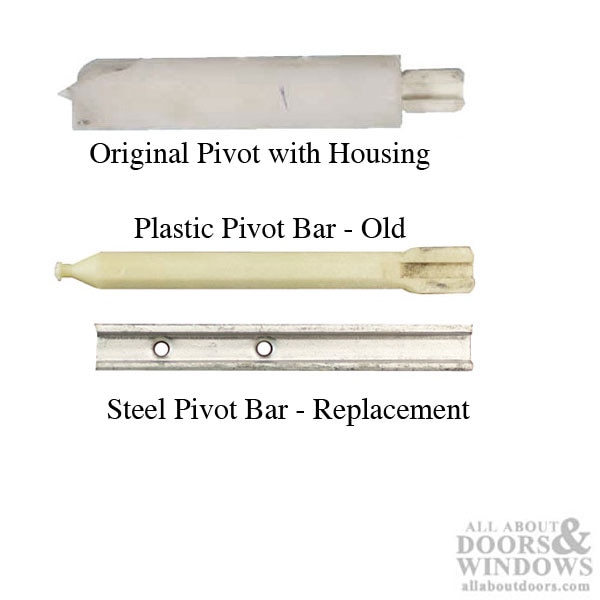

If Plastic pivot bar is broken, Replace with 532003 Steel Pivot Bar

1. Remove plastic pivot bar from housing

2. Crimp 1 end of Steel pivot bar # 532003

3. Insert crimped end into plastic housing

4. Tap lightly to drive metal pivot bar into plastic housing.

Option 2:

If pivot bar and housing are damaged, Replace with 532044

Requires modification to sash

Used by Several Companies:

Columbia Window, Kansas City, MO. Vinyl Single hung window about 1995-99

BTW ESP 1400 windows manufactured in Jasper Florida 1995.
