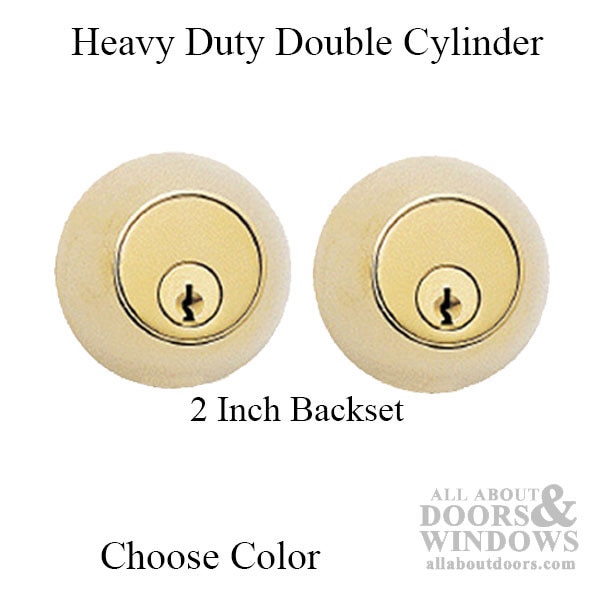

Deadbolt, 2 inch backset, Heavy Duty, Double Key - Choose Finish

Part Number: 40522
Price:$95.27 to $106.96
Special 2 inch Backset , Heavy Duty Deadbolt Lock
Fits Atrium style hinged swing patio doors
Replacement for Amerock and National Deadbolts
Low Profile projects only 9/16 inch outside and 9/16 inch inside
Replaces: Atrium Door, National Lock, Maywood and others narrow styled doors
Minimum Crossbore: 1-7/8 inch
Cylinder Collar is 2-1/2 inch Diameter

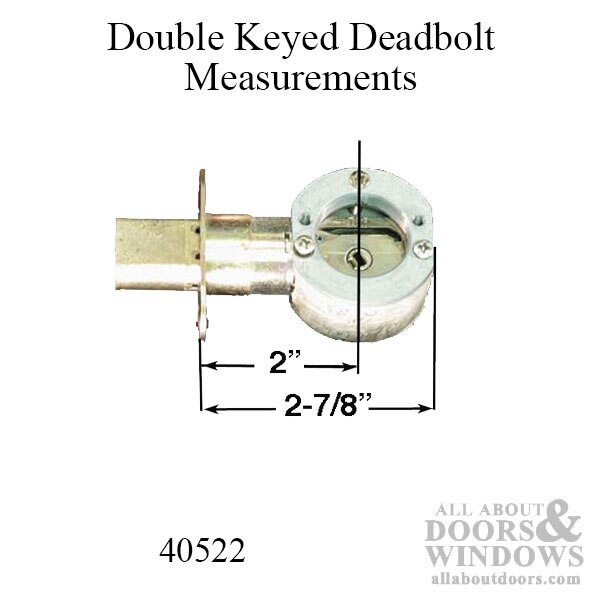

Backset: 2 inch
Optional Backsets: 2-3/8 or 2-3/4
Heavy Duty Dead bolt Lock with 2 inch backset
Door Thickness: Fits 1-3/4 inch Door
Standard Mortise Cylinder: Schlage 5 pin Sc-1 Rekeyable
Optional Cylinders: Schlage, Kwikset, Yale
Standard Finish: Polished Brass, Brushed Chrome, Oil Rubbed Bronze

Related Hardware:
40521 - Single cylinder with Thumb turn


Installing a Double Cylinder Deadbolt with a Two-Inch Backset (for Atrium Doors, Morgan Doors, etc)
