Wafer Type Replacement Cylinder, Storm Door

Part Number: 309008
Price: See Description

This item has been discontinued and is no longer available.

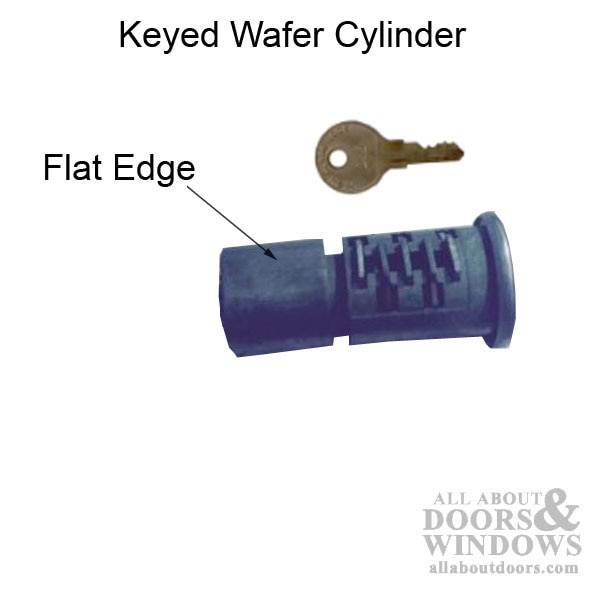

Wafer Cylinder for Exterior storm door handleset


Cylinder Type: Wafer

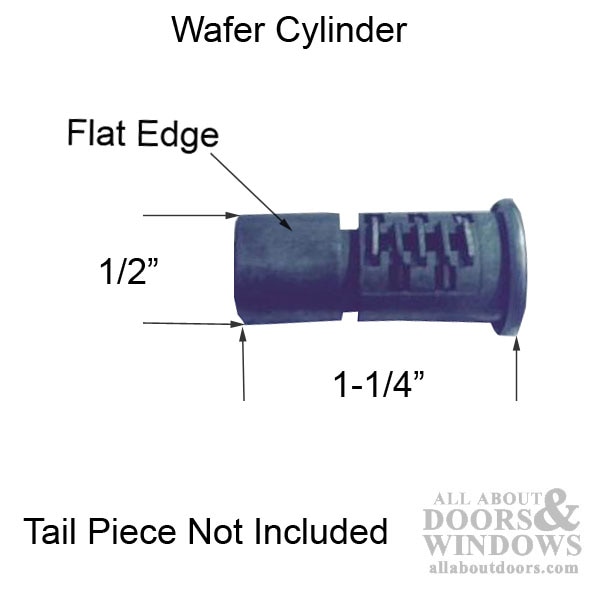

Overall Length:  1-1/4"

Diameter: 1/2"

Characteristics:  The end of cylinder has a 1/2" flat Edge

Keys: 2

Keyway: Y11

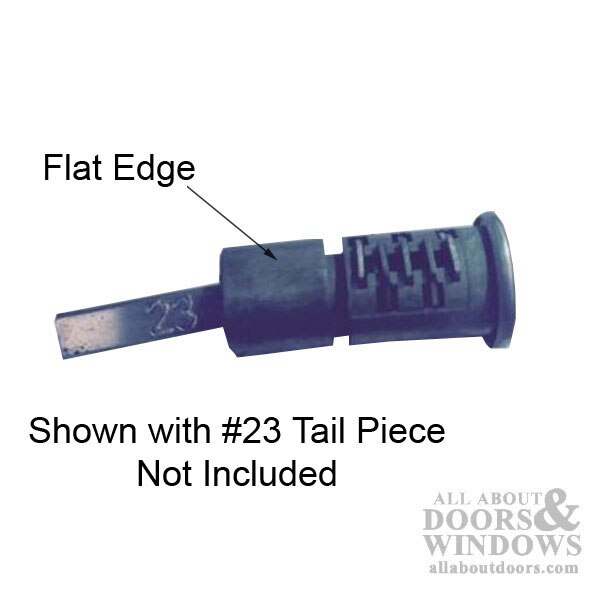

Tail Piece: # 23 is NOT included


Note:

1. To Install key cylinder the Lock must be off the door.

2. Flat edge up, insert into the cylinder hole and rotate 180 degrees

3. Remove key from cylinder

4. Install handleset back on door

4. Test operation, before closing door.


Related Hardware:

302001:  4 post storm door handle set trim

309008:  Key Cylinder Only

309008-23:  Tail Piece, number 23
