Concealed Internal Tilt-In latch, Wide - DISCONTINUED: See Notes
Outlook Vinyl Tilt in windows are out of business - No Parts Available

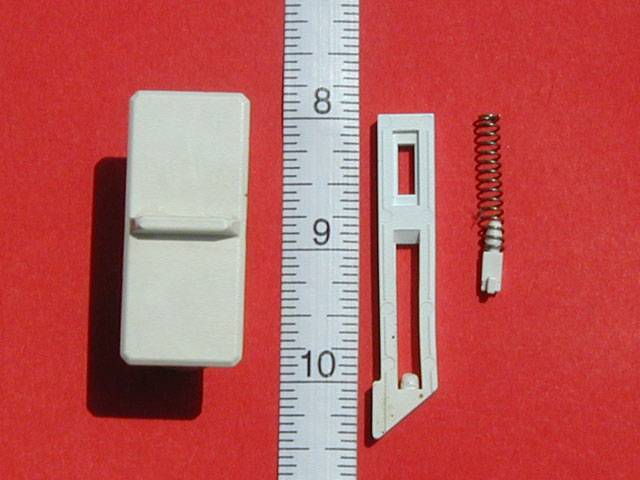

Concealed Internal Tilt-In latch with wide surface mount thumb button
DIMENSIONS:
7/8 X 2 inch Finger Pull
7/16 x 2-7/16 inch internal latch.
Color: White
The best solution is to remove old latch and apply surface mount Tilt latch.

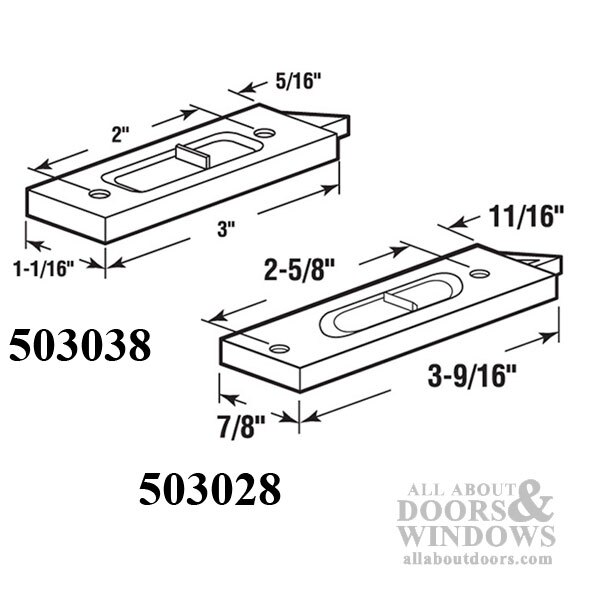

Use Part number 503028 or 503038
INSTALLATION NOTE:
1. Pry off top finger pull.
2. Depress the plastic inside hole.
3. Remove internal latch with spring.
4. Close window and position new latch
5. Screw on surface to mount latch in desired position.
