TC7000 SERIES Overhead Concealed Closer - Light Duty Spring Tension Back Stop w/HO at 105° Back

TC7000 SERIES Overhead Concealed Closer - Light Duty Spring Tension Back Stop w/HO at 105A degrees Back

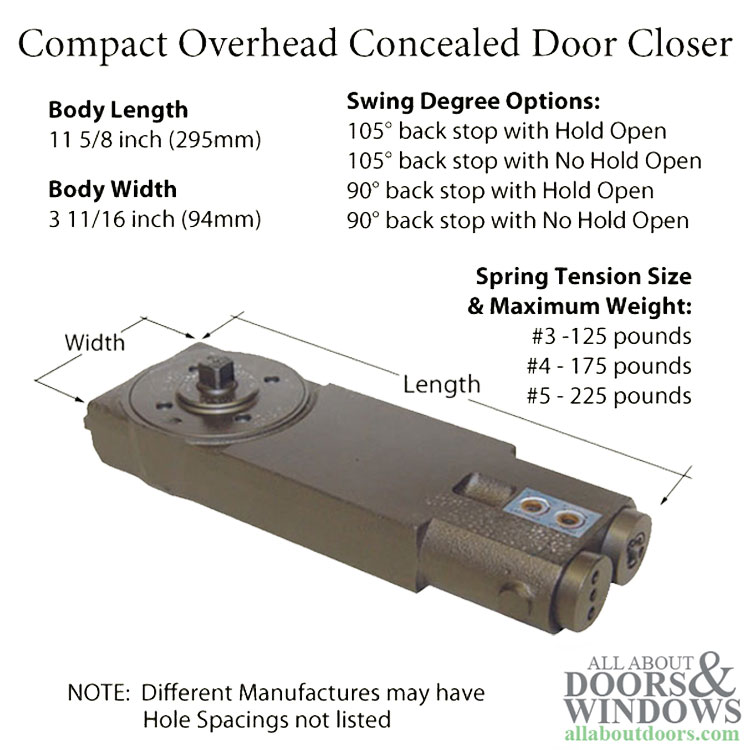

This compact designed door closer offers an excellent "hidden" solution.
It is center-pivoted for single and double acting doors.
This model is recommend for aluminum door and frame applications.
The closure speed is assured every time with its temperature-sensitive hydraulic fluid.

Spring Tension Size Options:
Light Duty - #3
Medium Duty - #4
Heavy Duty - #5

Maximum Door Size and Weight:
#3 - 36" interior / 30" exterior (125 lbs.)
#4 - 44" interior / 36" exterior (175 lbs.)
#5 - 48" interior / 42" exterior (225 lbs.)

Swing Degree Options:
105A degrees back stop with Hold Open
105A degrees back stop with No Hold Open
90A degrees back stop with Hold Open
90A degrees back stop with No Hold Open

Related Parts: (sold separately)
381101 - Side Load Arm
381102 - End Load Arm
381103 - K-Type Arm
381104 - Offset Arm with Track
381105 - Dual Purpose Bottom Pivot Set
381106 - AE Pivot Set
381107 - GE Pivot Set

NOTE: This is a Special Order Item and may take longer to ship.
