Commercial Door Light Frames, 12" x 12" low profile metal, screw together- Dark Bronze
We reserve the right to adjust shipping. We will notify the customer prior to adjustment, and if they do not agree we may cancel the order at our discretion.

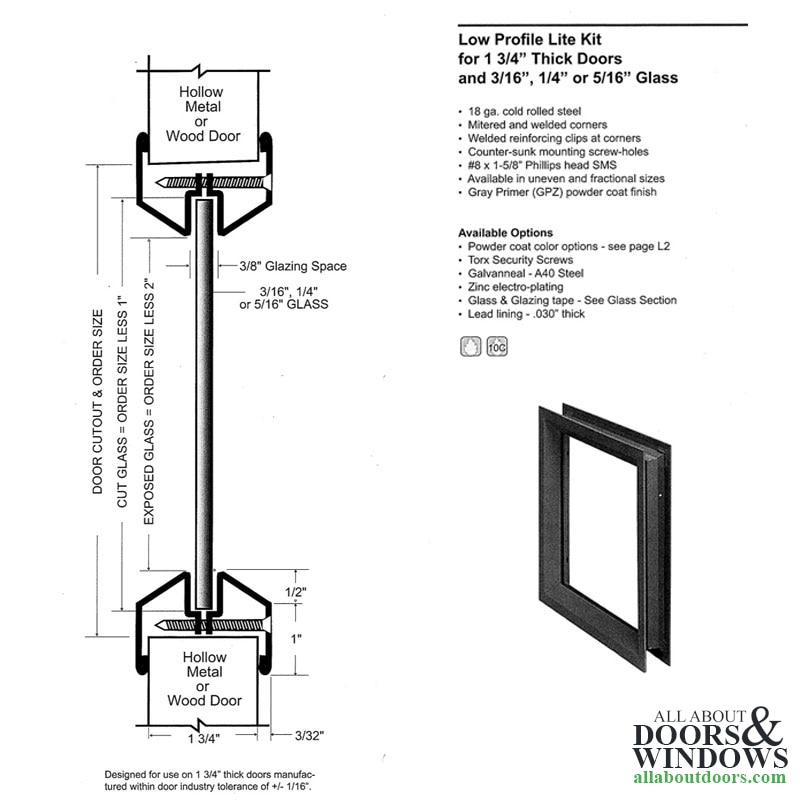

Low profile steel Commercial door light frames
Used on 1-3/4 inch thick hollow metal or wood doors.
Tip To Tip frame: 13-1-1/16 inch
Door Cut Out: 12 inches square
Actual Glass Size: 11 inches x 11 inches ( not included)
Exposed Daylight Glass: 10 inches x 10 inches
Color: Dark Bronze
Number of Screws: 8
Accommodates Glass thickness 3/16", 1/4" or 5/16" ( not included)
Standard screw together low profile frame
18 ga. cold rolled steel
Mitered and welded corners
Welded reinforcing clips at corners
Counter-sunk mounting screw-holes
Included:
(1) Steel Frame with Double-Faced Foam Tape for Glass Installation
(8) #8 x 1-5/8 Phillips head SMS
Low profile steel Commercial door light frames
Used on 1-3/4 inch thick hollow metal or wood doors.
Tip To Tip frame: 13-1-1/16 inch
Door Cut Out: 12 inches square
Actual Glass Size: 11 inches x 11 inches ( not included)
Exposed Daylight Glass: 10 inches x 10 inches
Color: Dark Bronze
Number of Screws: 8
Accommodates Glass thickness 3/16", 1/4" or 5/16" ( not included)
Standard screw together low profile frame
18 ga. cold rolled steel
Mitered and welded corners
Welded reinforcing clips at corners
Counter-sunk mounting screw-holes
Included:
(1) Steel Frame with Double-Faced Foam Tape for Glass Installation
(8) #8 x 1-5/8 Phillips head SMS
