Commercial Door Light 12" x 12" Clear Glass, Choose Color
We reserve the right to adjust shipping. We will notify the customer prior to adjustment, and if they do not agree we may cancel the order at our discretion.

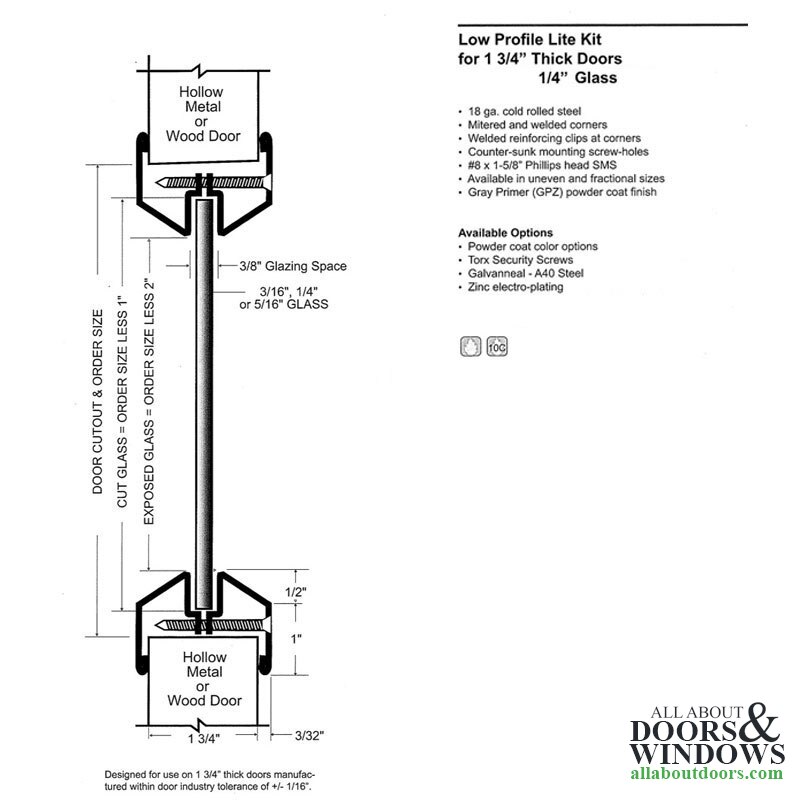

Low profile steel Commercial door light frames with 1/4" Clear Tempered Glass
Used on 1-3/4 inch thick hollow metal or wood doors.
Tip To Tip frame: 13-1/16 inch
Door Cut Out: 12 inches square
Actual Glass Size: 11 inches x 11 inches
Exposed Daylight Glass: 10 inches x 10 inches
Glass: Clear 1/4" thick
Frame Color: Dark Bronze or Grey
Number of Screws: 8
Fire Rated: Steel or wood doors up to 90 minutes
Other glass options provide better ratings when needed (please call for information or to order)
Security Grille, other options available by special order only. Please call.
Standard screw together low profile frame
18 ga. cold rolled steel
Mitered and welded corners
Welded reinforcing clips at corners
Counter-sunk mounting screw-holes
Included:
(1) Steel Frame with Double-Faced Foam Tape for Glass Installation
(1) Glass Sheet
(8) #8 x 1-5/8 Phillips head SMS
Low profile steel Commercial door light frames with 1/4" Clear Tempered Glass
Used on 1-3/4 inch thick hollow metal or wood doors.
Tip To Tip frame: 13-1/16 inch
Door Cut Out: 12 inches square
Actual Glass Size: 11 inches x 11 inches
Exposed Daylight Glass: 10 inches x 10 inches
Glass: Clear 1/4" thick
Frame Color: Dark Bronze or Grey
Number of Screws: 8
Fire Rated: Steel or wood doors up to 90 minutes
Other glass options provide better ratings when needed (please call for information or to order)
Security Grille, other options available by special order only. Please call.
Standard screw together low profile frame
18 ga. cold rolled steel
Mitered and welded corners
Welded reinforcing clips at corners
Counter-sunk mounting screw-holes
Included:
(1) Steel Frame with Double-Faced Foam Tape for Glass Installation
(1) Glass Sheet
(8) #8 x 1-5/8 Phillips head SMS
