Columbus 2D Non Removable Pin NRP Adjustable Set Hinge (V) 3-5/8 x 3-5/8

New Discontinued Columbus 2D Hinge, limited to existing inventory. May have minor finish imperfections or blemishes. Can be replaced with HOPPE Current Style Aluminum Adjustable Guide (H) and Set (V) Hinges

Hinge Type: SET Hinge (V) with NRP, Adjustable for Vertical movement
NRP is a Non Removal Pin, held in place by a set screw

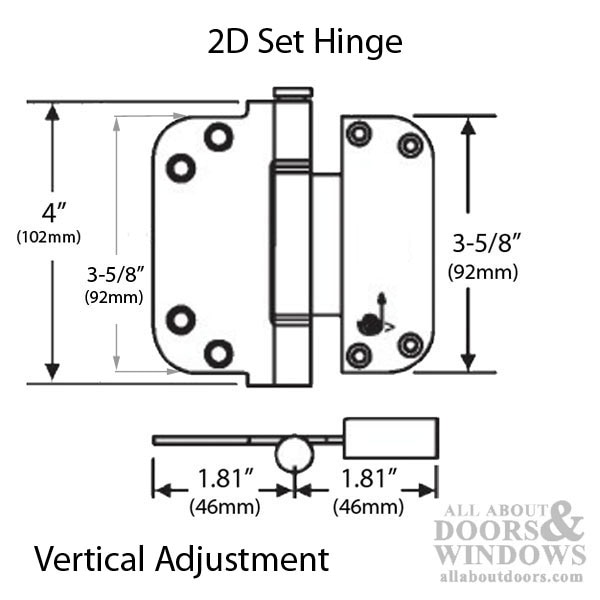

Hinge Size: 3-5/8 x 3-5/8 inch (92x92mm)
Material: Steel
NOTE on Color:

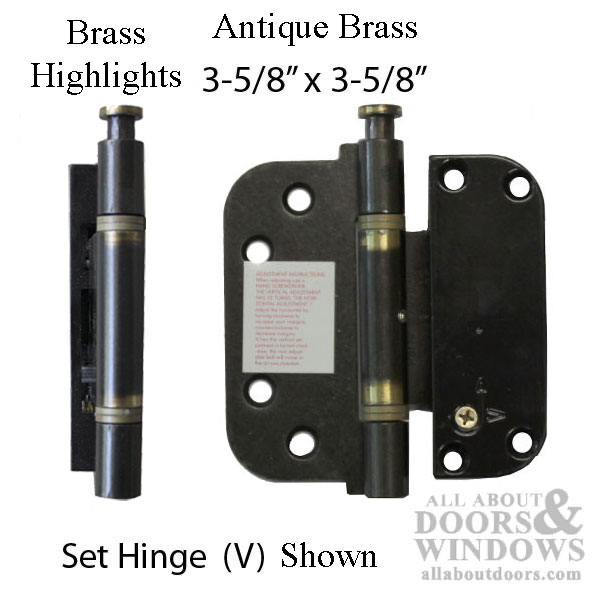

Antique Brass has Brass highlights on knuckle. See Additional Images #5

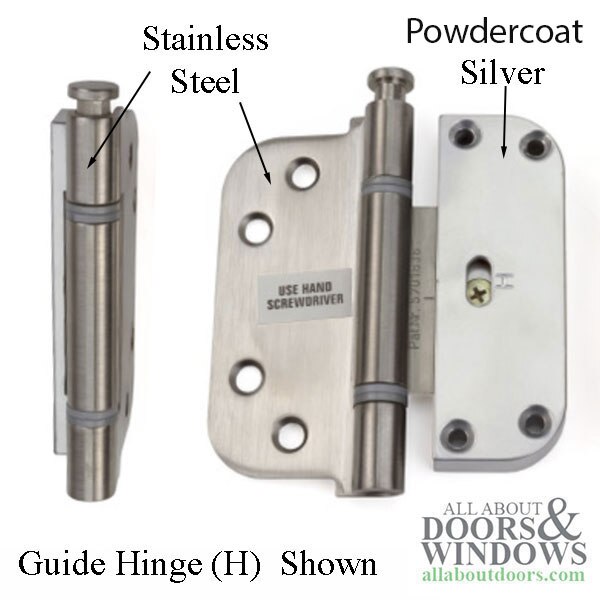

Stainless Steel is 1/2 stainless on the frame leaf and knuckle (barrel), the Door side is Painted Silver See Additional Images #6
Sold Each, Priced Each - NO Screws

Additional 2D Hinge Info:
This hinge was sold by HOPPE HTL and used by Fuhr, Pozzi, Caradco, Hurd, Jeldwen, Windsor, Crestline, Weather Shield and other door companies
Typically found on doors using the Fuhr or Hoppe brand multipoint lock.
The old style 2D hinge fit a route in the door panel and frame of 3-5/8 inch (92mm)
Hinge will work on Outswing Doors, but does not have NRP set screw to prevent pin removal.

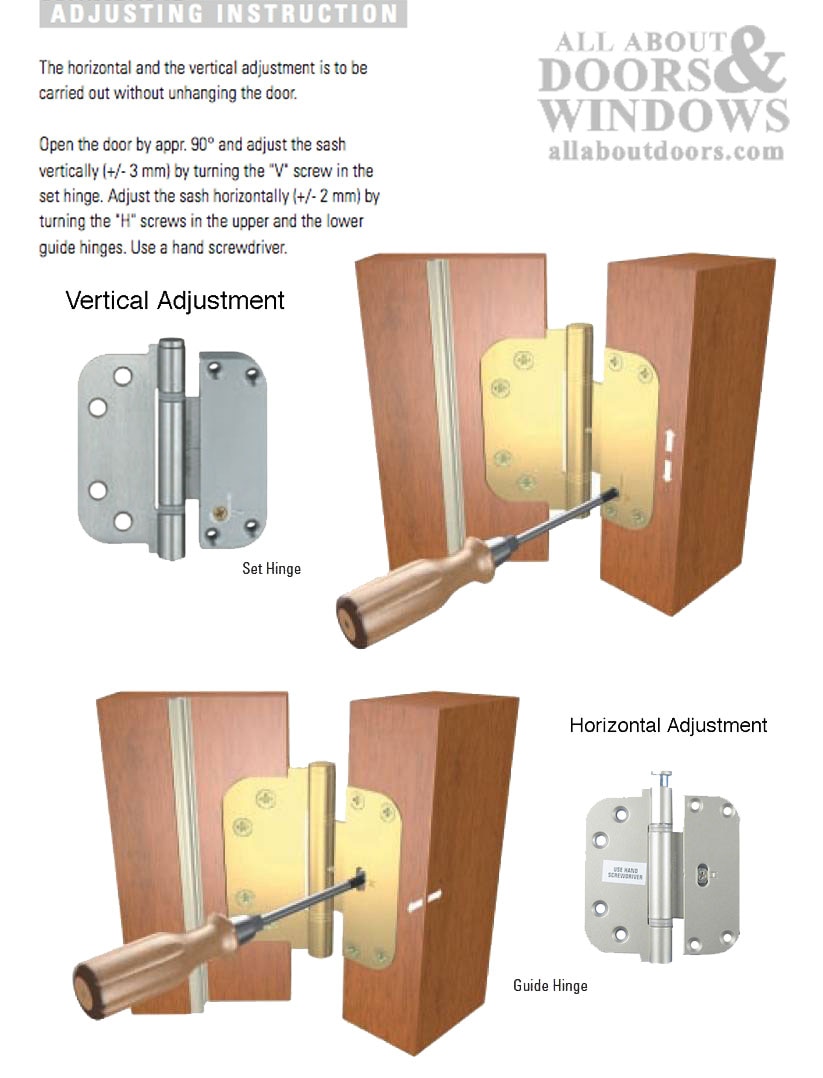

Adjustable Hinge Specifications:
The Guide Hinge (H) is installed at the top and bottom to provide horizontal adjustment.
They are used with the SET HINGE (V) which is installed at the center for vertical adjustment
Four hinge doors have an additional Set or Guide Hinge depending on weight.
Jamb Screws - #9 x 3/4 Phillips Flathead;
Panel Screws - #8 x 1-1/2 Phillips Flathead.
Handing: Non-handed, Reversible, Removable Pin for Left or Right hand doors

Related Columbus 2D Style Adjustable Hinges - Limited to existing Inventory:
369900 - 2D Horizontal Guide Hinge (H)
369901 - 2D Vertical Set Hinge (V)
369902 - 2D Horizontal Guide Hinge (H) NRP ( Non-Removable Pin for Outswing doors )
369903 - 2D Vertical Set Hinge (V) NRP
369904 - 2D Horizontal Guide & Vertical Set Hinge (H-V)
369905 - 2D Horizontal Guide & Vertical Set Hinge (H-V) NRP

Other Replacement Options: Thicker Hinge
Option 1. Hoppe - We suggest replacing with the Hoppe Aluminum Adjustable Guide and Set Hinge.
If replacing with Hoppe hinges, you need to replace all 3 hinges ( 3 hinges, 1 set and 2 guide.)

Option 2. Amesbury - makes a Steel all in one Adjustable Hinge, with Vertical and Horizontal adjustment.
If replacing with Amesbury hinges, you need to replace all 3 hinges ( 3 hinges, 1 set and 2 guide.)

NOTE: Columbus 2D Hinge was thinner than other hinges - Can be Replaced with Hoppe or Amesbury
If they need to have 100% precision, they can route, shave or sand the door 1 mm on the bottom side of the route
