Columbia Pin-On Picture Storm Window
Columbia Pin on Picture Storm Window with master frame and removable glass insert
Available in natural aluminum (mill), white, bronze, black, brown & sandstone painted finishes.
* Master frame head pocket type drip cap
* Marine wrap around glazing
* Glazing available in single strength, double strength or 3/16″ crystal
* All windows come with installation holes prepunched and installation screws furnished
* Screens are available
* 1″ or 2″ sill expanders are available
* Inset corners are secured with snap in clips to allow easy re-glazing
* Available with vertical or horizontal mullions
* Finger grip insert lift rail for easy removal
* Custom sizes available
Additional Information:
Small windows made with Single Strength Glass (SS)
Large windows made with Double Strength Glass (DS)
Extra Large windows made with 3/16" Crystal

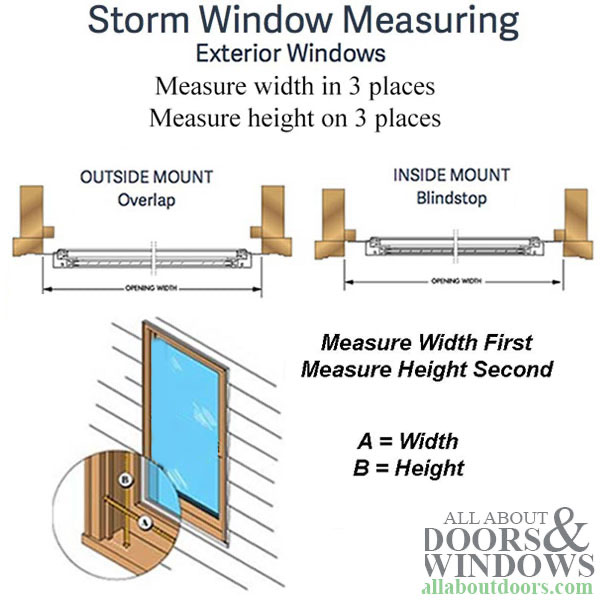

ORDERING & MEASURING INFORMATION: ALWAYS Width First, Height Second
All storm windows are custom made to exact size (tip-to-tip)
You tell us what size you want, we will make it that size to the nearest 1/8 inch increment.
Measure the Width, top middle and bottom, Measure the Height, Left Center and Right side
Use the smallest measurement - Width is shown First, Height Second
* Aluminum / Metal window storms are normally installed using a cork tape between the primary and storm window to reduce metal to metal contact.
* Wood windows are usually cut back 1/8 to 1/4 inch for blind stop installations depending on application.
* Storm windows come standard with an adjustable bottom expander
** LOCAL PICK UP ONLY ** BASIC PRICING SHOWN UNDER ADDITIONAL INFORMATION TAB
Available in natural aluminum (mill), white, bronze, black, brown & sandstone painted finishes.
* Master frame head pocket type drip cap
* Marine wrap around glazing
* Glazing available in single strength, double strength or 3/16″ crystal
* All windows come with installation holes prepunched and installation screws furnished
* Screens are available
* 1″ or 2″ sill expanders are available
* Inset corners are secured with snap in clips to allow easy re-glazing
* Available with vertical or horizontal mullions
* Finger grip insert lift rail for easy removal
* Custom sizes available
Additional Information:
Small windows made with Single Strength Glass (SS)
Large windows made with Double Strength Glass (DS)
Extra Large windows made with 3/16" Crystal
ORDERING & MEASURING INFORMATION: ALWAYS Width First, Height Second
All storm windows are custom made to exact size (tip-to-tip)
You tell us what size you want, we will make it that size to the nearest 1/8 inch increment.
Measure the Width, top middle and bottom, Measure the Height, Left Center and Right side
Use the smallest measurement - Width is shown First, Height Second
* Aluminum / Metal window storms are normally installed using a cork tape between the primary and storm window to reduce metal to metal contact.
* Wood windows are usually cut back 1/8 to 1/4 inch for blind stop installations depending on application.
* Storm windows come standard with an adjustable bottom expander
** LOCAL PICK UP ONLY ** BASIC PRICING SHOWN UNDER ADDITIONAL INFORMATION TAB
All storm windows are made to exact size ( tip-to-tip) - ** MEASURMENTS & ORDERS MUST BE IN WRITING !
United Inch Glass Mill Finish Painted Finish
0 To 50 SS Glass $ 166.30 + $ 35.20
51 To 60 SS Glass $ 229.30 + $ 35.20
61 To 70 SS Glass $ 267.10 + $ 35.20
71 To 80 SS Glass $ 324.80 + $ 35.20
81 To 90 SS Glass $ 377.50 + $ 35.20
91 To 100 DS Glass $ 404.80 + $ 35.20
101 To 110 DS Glass $ 444.70 + $ 48.20
111 To 120 DS Glass $ 483.60 + $ 48.20
121 To 130 DS Glass $ 531.30 + $ 48.20
Over 130" Quote Quote
OPTIONS:
Glazed with Bronze Solar Tint + $ 6.90 Sq Ft
Glazed with Low "E" Glass + $ 6.90 Sq Ft
Glazed with 3/16 Crystal Glass + $ 8.40 Sq Ft
Glazed with Acrylic Plexi Glass + $ 11.60 Sq Ft
Glazed with Tempered Glass + $ 15.60 Sq Ft
United Inch Glass Mill Finish Painted Finish
0 To 50 SS Glass $ 166.30 + $ 35.20
51 To 60 SS Glass $ 229.30 + $ 35.20
61 To 70 SS Glass $ 267.10 + $ 35.20
71 To 80 SS Glass $ 324.80 + $ 35.20
81 To 90 SS Glass $ 377.50 + $ 35.20
91 To 100 DS Glass $ 404.80 + $ 35.20
101 To 110 DS Glass $ 444.70 + $ 48.20
111 To 120 DS Glass $ 483.60 + $ 48.20
121 To 130 DS Glass $ 531.30 + $ 48.20
Over 130" Quote Quote
OPTIONS:
Glazed with Bronze Solar Tint + $ 6.90 Sq Ft
Glazed with Low "E" Glass + $ 6.90 Sq Ft
Glazed with 3/16 Crystal Glass + $ 8.40 Sq Ft
Glazed with Acrylic Plexi Glass + $ 11.60 Sq Ft
Glazed with Tempered Glass + $ 15.60 Sq Ft
