Butt Hinge Aluminum Balcony and Terrace doors Bottom & Middle

Bottom and Middle Butt Hinge Aluminum Balcony and Terrace doors, shipped unassembled.
Adjustable: Yes

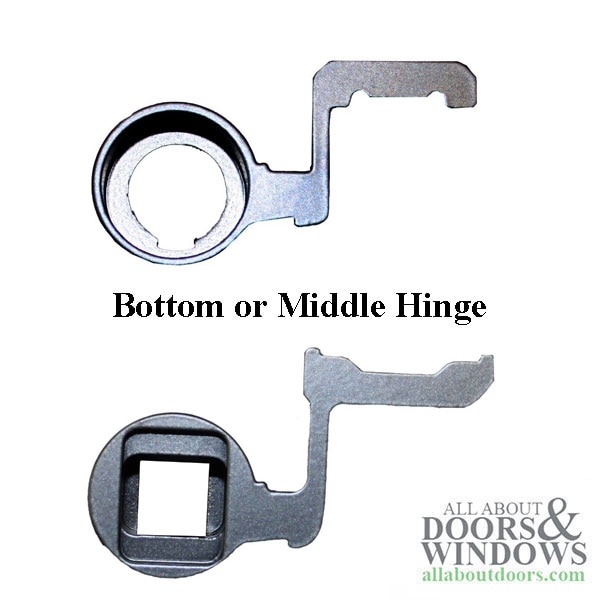

Note: The top hinge is slightly different than the middle or bottom hinge
When Top hinge is removed the underside of the hinge has a "T" stamped in the upper section

Application: Aluminum Balcony and Terrace Doors and sometimes windows
Hinge Height: 2-1/4 inch each half
Overall Length: 4-5/8 inch when assembled

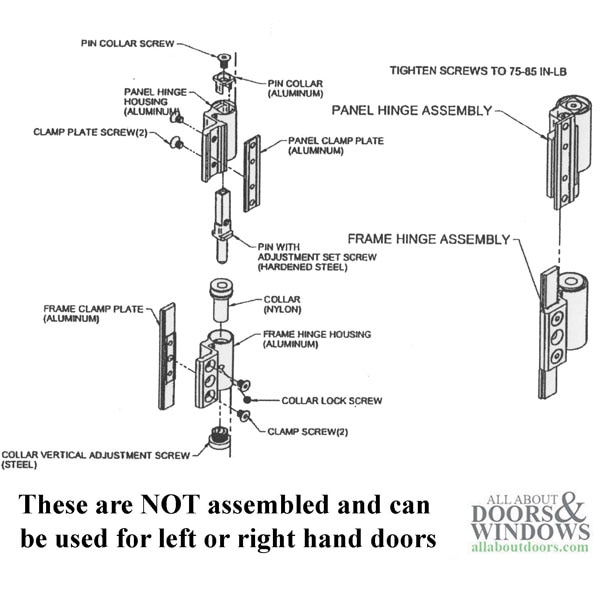

Assembled: No
Handed: No, fits Left and Right hand doors
Material: Aluminum
Colors: Gray
Sold Each

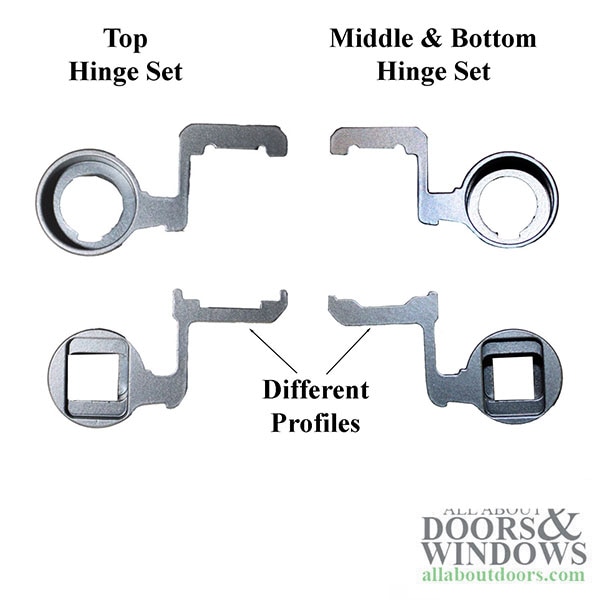

Important: there are several of these hinges that look the same. However, there are slight variations in different door brands
This brand the top hinge is different than the bottom or middle hinge CH-58-331 Bottom or Center CH-58-332 Top
