Brake Shoe 1-1/4 Pocket, pivot lock, back locking

Brake Shoe for 1-1/4 Pocket constant force balance, back locking brake shoe

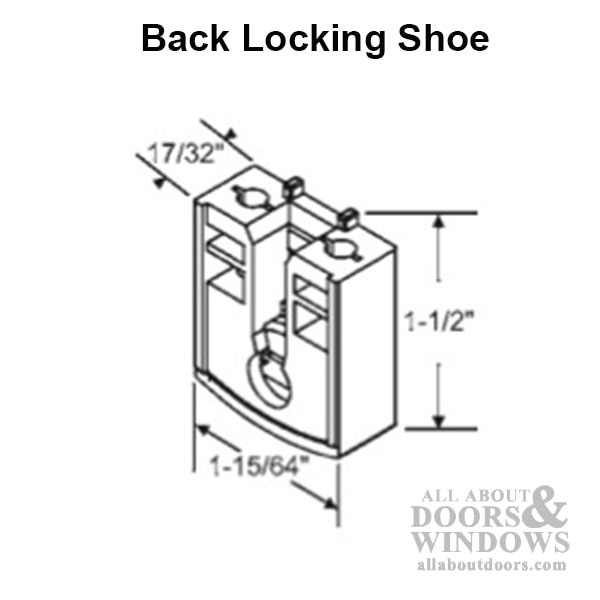

Width: 1-15/64 inch
Length: 1-1/2 inch
Thickness: 17/32 inch
Color: White


The side locking brake shoe puts pressure on the sides to hold window in place when tilting in.
The back locking brake shoe has a pad on the pack that applies pressure.




This product is similar to or the same as the following part numbers in these brands:
Strybuc Industries: 96O-102
