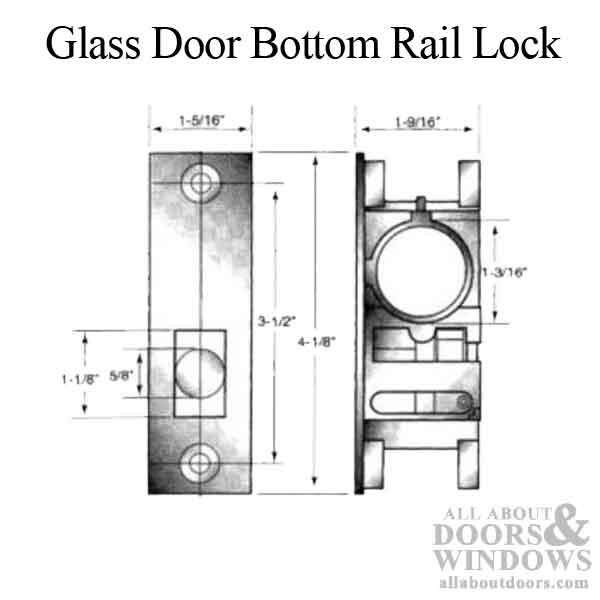

Bottom Rail Lock, 1-9/16" for Glass Doors

Part Number: 380078
Price: $39.24

Kaba ilco BRL-03 bottom rail lock for glass doors.

Faceplate Width: 1-5/16 inch
Faceplate Length: 4-1/8 inch
Lock Depth: 1-9/16 inch
Screw Holes: 3-1/2 inch
Bolt Diameter: 5/8 inch
Bolt Projection: 1-3/32 inch
Material: Cast Zinc

Sold Each, No screws

Note:
This lock is installed in the bottom rail or in patch fitting of an “all glass” door.
Bolt is retracted by a 1-5/32" (29.35 mm) mortise cylinder with standard cam.
