Bottom Mount Roller Assembly 1-1/4 Inch Nylon Wheel

Bottom Mount Roller Assembly – 1-1/4 Inch Nylon Wheel

Bottom-mount roller for sliding mirror doors. Features a 1-1/4 inch non-ball bearing nylon wheel
in an adjustable steel housing. Some housings are stamped ICH Miami or ACE (ACE versions are
not flared).

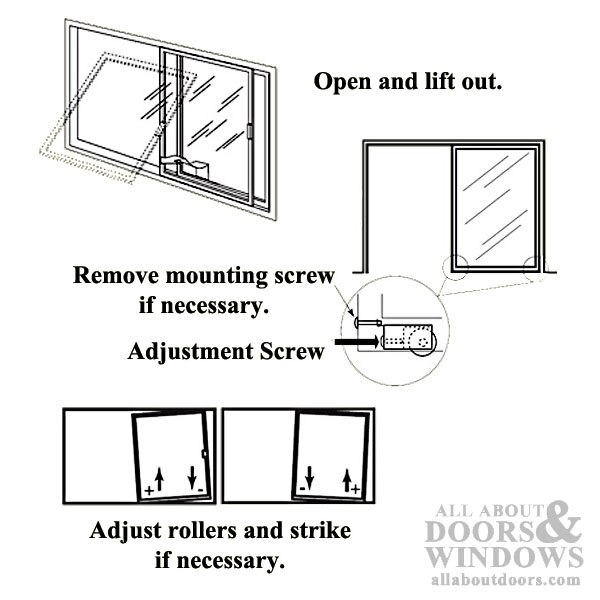

Model 25130 can replace ACE rollers if the housing is pressed to reduce flare. To remove,
unscrew the frame edge screw securing the roller tab. Commonly used on King Mirror Door
Co. doors and similar models.

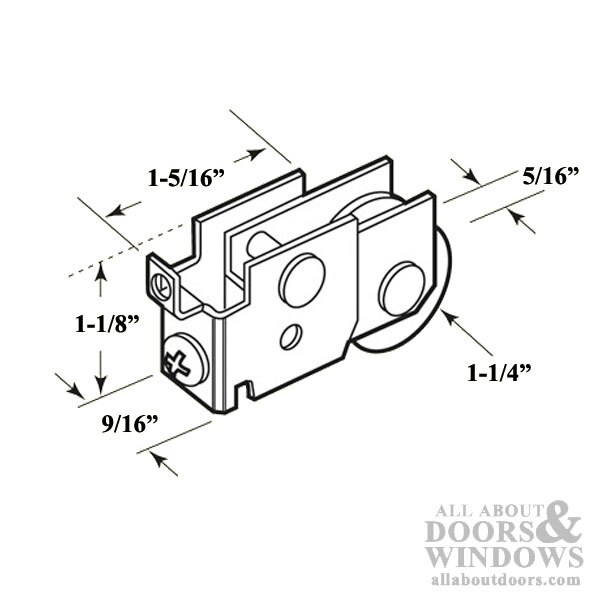

Roller Diameter: 1-1/4 Inch
Roller Width: 5/16 Inch
Housing Thickness: 9/16 Inch
Housing Length: 1-5/16 Inch
Housing Height: 1-1/8 Inch
Material: Nylon
Mount: Bottom
Roller Edge: Concave

Contents: 2 Rollers

Priced and sold in pairs.
