Berlin Active Lever handleset trim for the G-U Ferco automatic

Part Number: K-U8592-Z1-0
Price: $341.78

G-U Ferco handleset trim for the G-U Ferco automatic latchbolt series with minimum 2" backset locks.

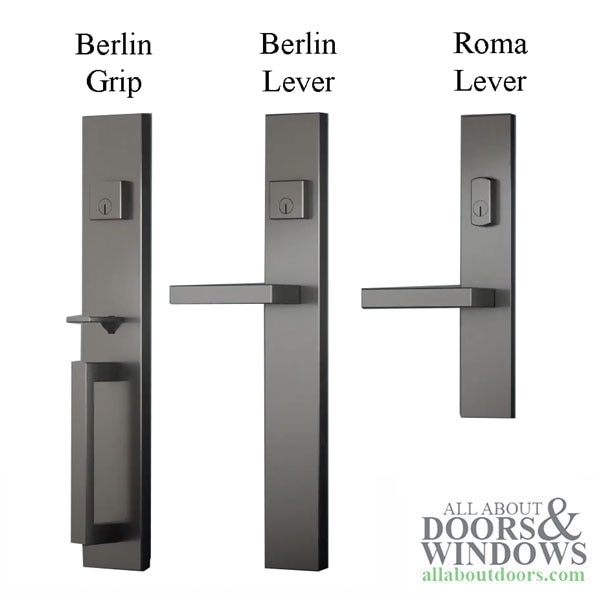

Style: Berlin Lever

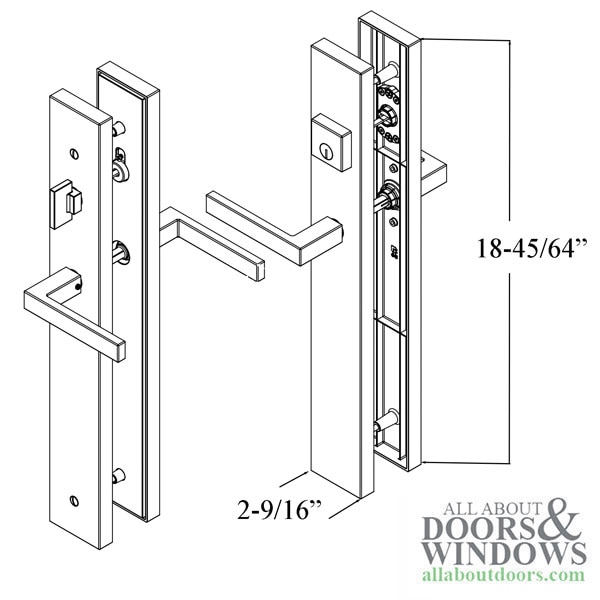

Plate Width: 2-9/16 inch (65mm) 2.559 ( Requires minimum 2" lock backset )
Plate Height: 18-45/64 inch (475mm) 18.7
Handed: No fits left or right hand doors
Door Thickness: 1-3/4 or 2-1/4
Available Colors: Dark Bronze, Black, Satin Nickel
Available Functions: Active - Keyed, Semi Active-Non-keyed, Dummy fixed levers
Note: Active trim kits are converted to Semi-Active and Dummy using a pre-assembled cylinder plug and screw-in Dummy brackets (included in the kits)

Please note that these handle sets are special order and may take 2 to 4 weeks for delivery.
No returns, refunds or exchanges.

Related Hardware - Long Plate Lever / Lever
K-U8592-Z1-0-* Handle sets for active doors with US-cylinder
K-U8546-Z0-0-* Handle sets for semi-active doors
K-U8510-Z0-0-* Handle sets for fixed doors
K-U8592-D0-0-* Handle sets for smart lock

Additional information
 Unassembled Zamac trim kits
 US-cylinder with standard 5 pins Schlage “C” keyway
 New snapping mechanism for the 90° locking with thumb-turn
 Self-centering 8mm diameter spindle
 Stainless steel set screw on levers to secure spindle
 Kit for 1 3/4" and 2 1/4" thick doors
 US-cylinder above handle
