Baldwin Replacement Entrance Lever x Lever Mortise Lock Emergency Egress with Brass Latch

Baldwin Replacement Entrance Lever x Lever Mortise Lock Emergency Egress with Brass Latch

NOTE: This is a Baldwin replacement Lock and does not have the faceplate, you may reuse yours.

Specifications:

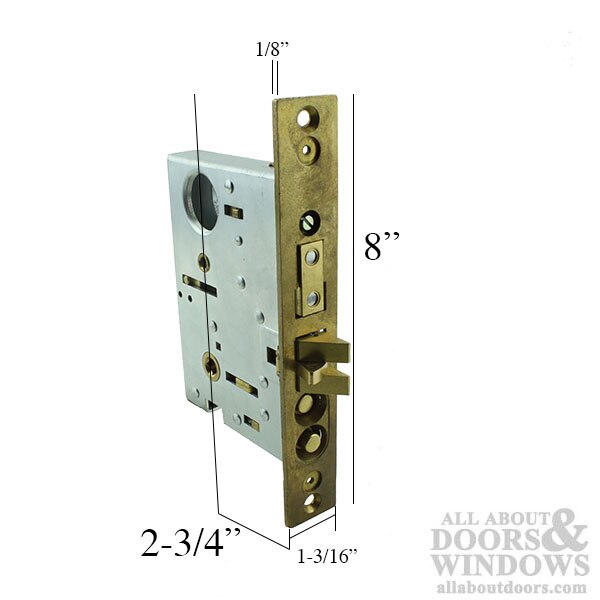

• Backset: 2-3/4 Inch (70mm)
• Handed: Yes, Doors are viewed from outside hinge location.
• Do not use lever strength mortise locks with knobs. They only turn one way and have a stiff turning action suitable for levers.
• Deadbolt Throw: 1 inch with saw-proof inserts
• Faceplate: NO
• Strike Plate: NO
• Latch Color: Brass ( =Nickel Optional)
• Spindle Hub Diameter: 1/4 Inch (7mm)
• Weight: 3 lbs. (1.36 kg)
• Federal Specification Equivalent: U/L Listed, ANSI Series: 1000-F12/F20

Additional Information:

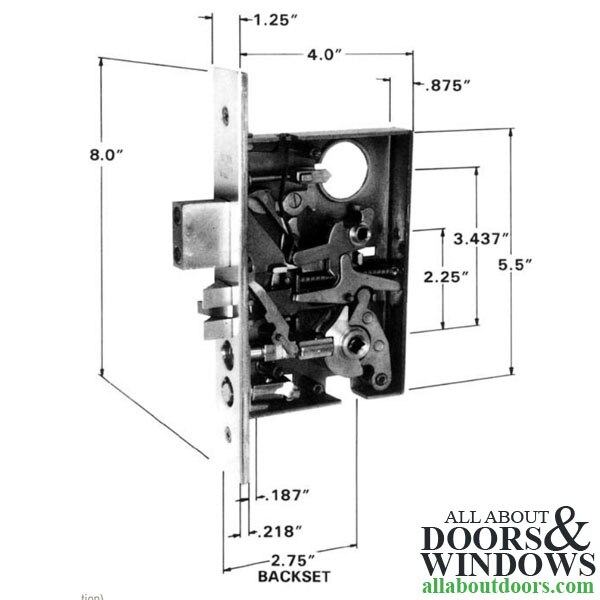

* Backset is measured from the front of the faceplate to the center of key cylinder.
* This mortise lock is not recommended for double cylinder applications.

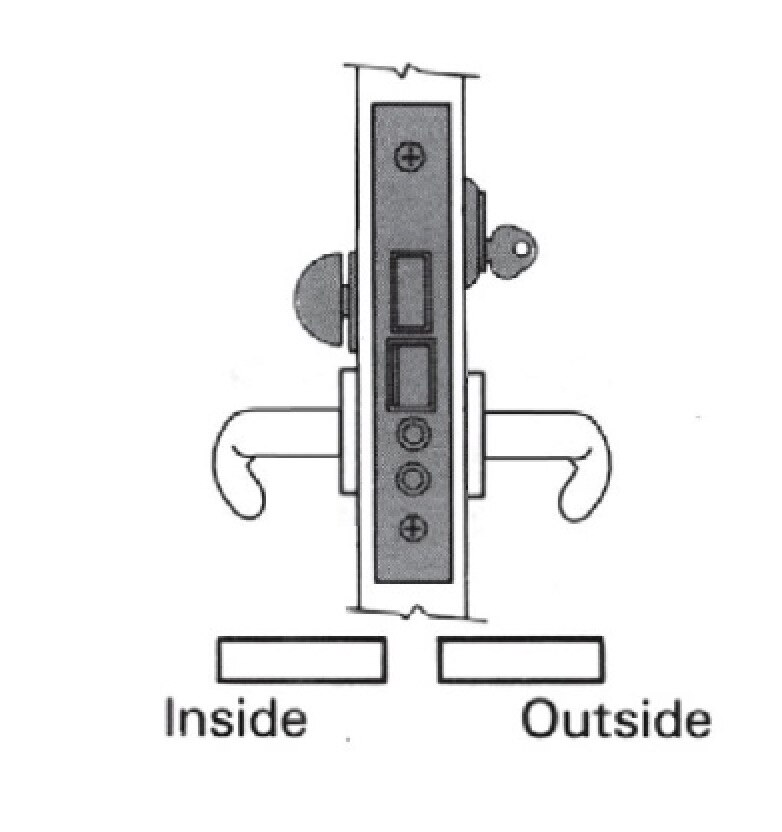

* Inside lever retracts latch and dead bolt simultaneously but does not free outside lever
* When dead bolt is thrown, stop is automatically activated making outside lever rigid.
* When dead bolt is extended, dead bolt deadlocks latch bolt.
* Below the Latch and Deadbolt are two round buttons. These activate the exterior handle to be locked or unlocked when closing the door.
*. Includes Mortise Lock, no screws or other components
