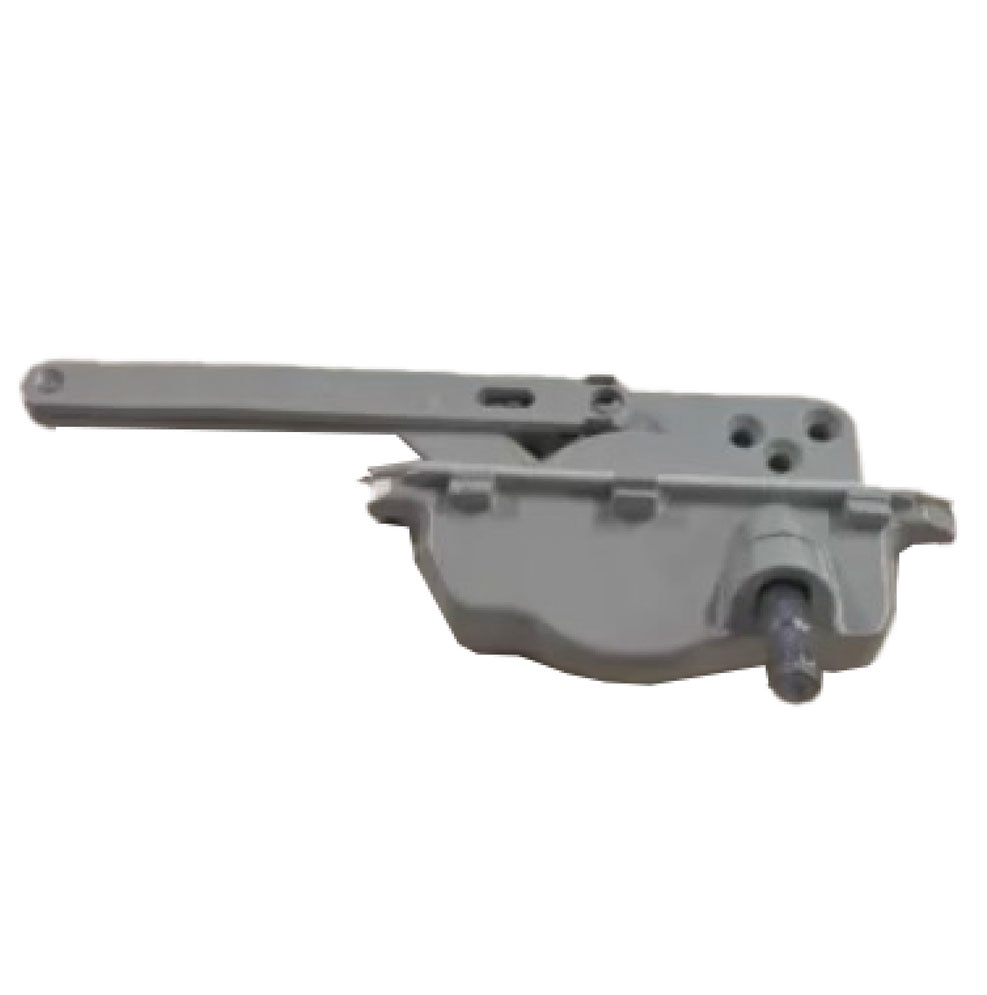

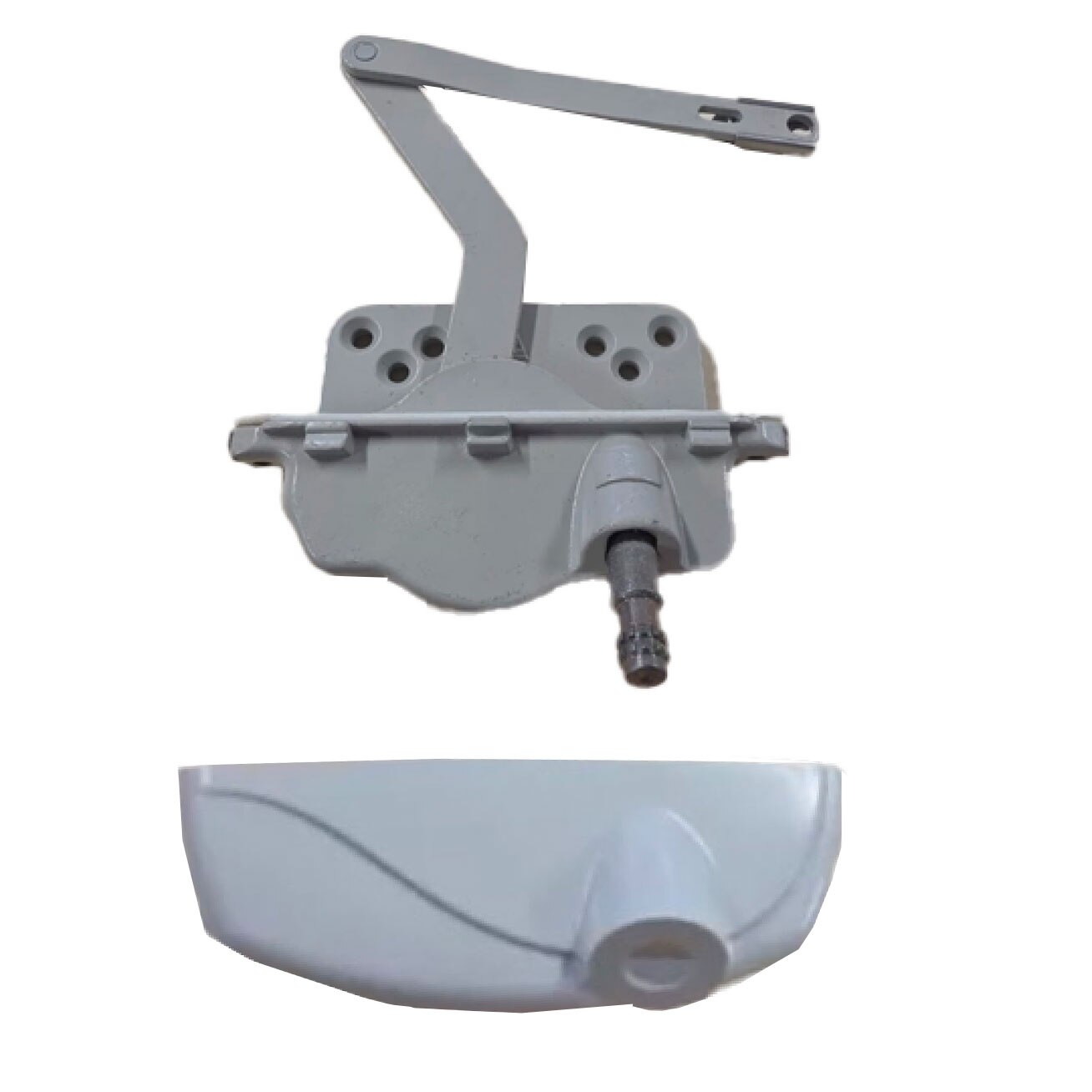

Ashland Old Style Dyad, Split Arm Casement operator LH

Ashland Old style casement operator - Discontinued, Limited inventory

Handed: Yes, As shown
Detach Clip: on Underside of arm
Link Position: Down
Link Length: 5 inch
Base Width: 3-3/8 Prox
Cover Width: 5 inch prox
Handle Spline: Silver
Markings:
Operator Base C-1040-5a
Arms-f-1040-16 and f-1040-67
Marking on hardware is an A underlined twice ( Ashland)

Additional Information
'That is a very old Ashland operator… no longer made.
Does not appear to be replaceable by current Optima operator either and have nothing currently that could sub for it.’

I think that perhaps if the customer is able to modify the window where the operator sits, they may be able to use the Encore or the Ashland

If I’m correct, Encore 50.60.00.211 and 50.60.00.212 have a wider base and one small off-set down on that arm.

Another possible option would be 55083 LH and 55084 RH
Other options contact office
