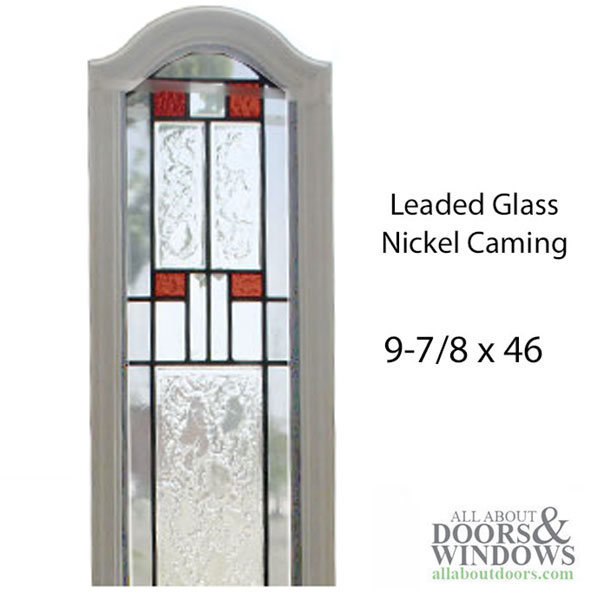

Arch Top, Leaded Clear, Red and Pattern Bevel Glass, Zinc Caming 9-7/8 x 46
Therma-Tru Fiberclassic Old Style 9-7/8 x 46 paintable side lite or door glass with frame.
Application: New or Replacement Door Glass with white paintable Frame
Glass Type: Clear, Pattern, and Red Leaded Glass with Zinc / Nickel caming, Safety Tempered
Door Thickness: 1-3/4 inch
TIP-TIP Frame Surround: 9-7/8 x 46
Frame Color: White, Paintable
Actual Glass Measurement: 8 x 44
Insulated Glass Thickness: 1 inch
Door Cut-Out Hole: TBD - see note 2
NOTE 1: These are New, Discontinued size. Limited to existing inventory. No Refunds, No Returns
NOTE 2: When cutting out a flush or panel door, we suggest making a cardboard template. The template can be traced from inside frame part.
Additional Information:
These are Not Standard sizes, these are special sizes for older doors - Measure carefully
Therma-Tru door lite for wood, steel and Fiberglass Doors
May fit other brands like Benchmark, Ceco, Masonite, Jeld-Wen, Pease, Pella, Stanley, and others when dimensions match, will NOT work on Peachtree doors.
Can be installed in flush or hinged doors with panel designs that match shape of the surround
White surrounds are paintable, the buff or dark color glass frames are stainable.
