Andersen Exterior Keyed Lock Parts Replacement Kit
Andersen exterior gear and keyed lock parts replacement kit for gliding patio doors manufactured 1982 to present. This kit will rebuild one Andersen exterior lock. Priced and sold as a kit.
Works With:
200 Series Narroline Gliding Doors
200 Series Perma-Shield Gliding Patio Doors
400 Series Frenchwood Gliding Doors
Includes:

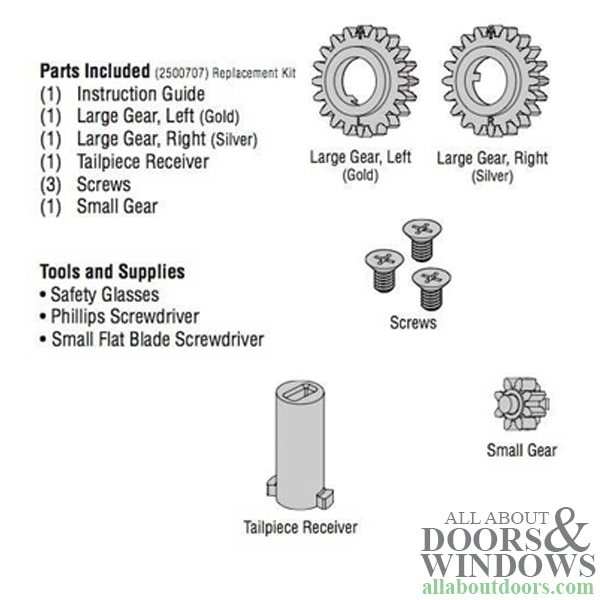

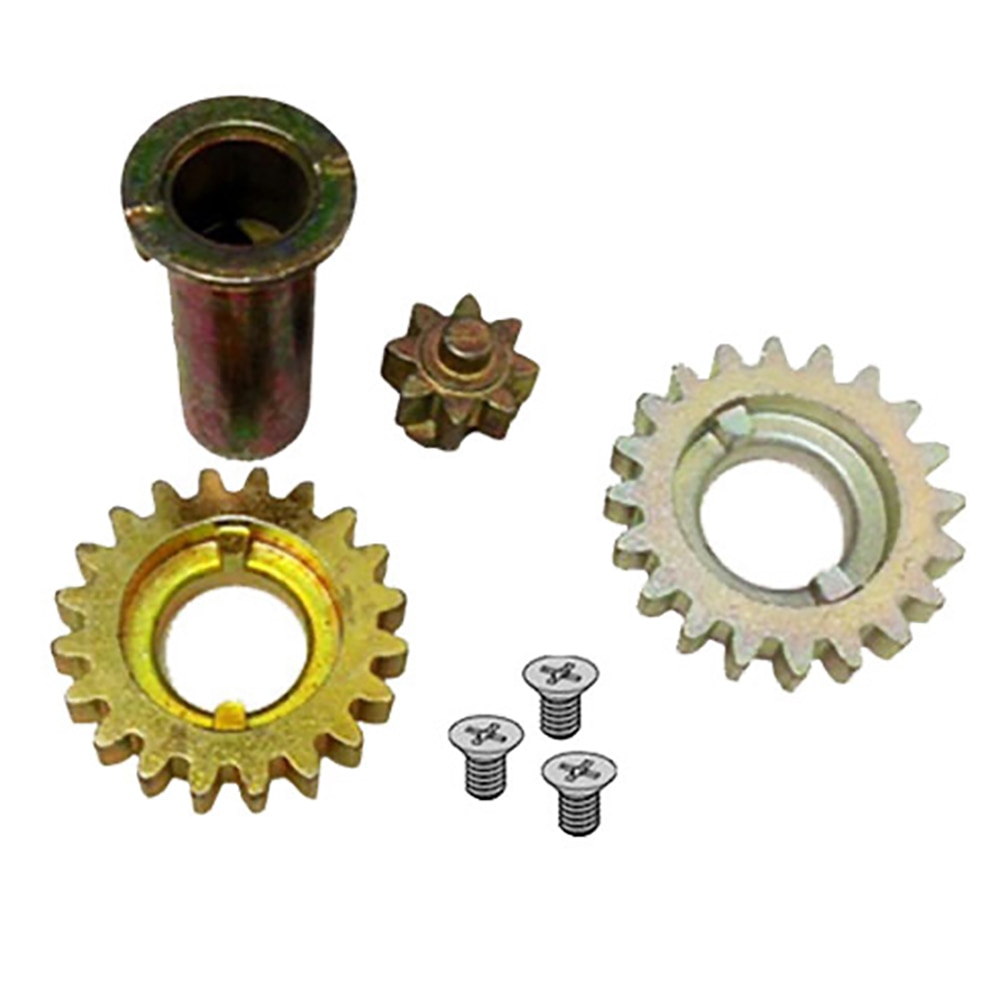

Large silver & gold gears
Tailpiece
Small gear
Screws
Instructions
NOTE: Does not include back cover plate, key cylinder, or lock housing. The large Silver gear is for right-handed doors, Gold gear is for left-handed doors. There is a timing mark on the gear. The arrow points to the 12 o'clock position, the R or L is at the 6 o'clock position. When assembled you should be able to see the L or R below the tail piece. (notch in cover plate)
Tools Required:
Phillips screwdriver
Small flat blade screwdriver
Safety glasses
Related Parts:
2573526 - Lock Cylinder w/Keys - 6 pin - Multiple Colors
2573648 - Bolt for Keyed Lock - Tribeca - Lock Housing/Exterior - Stone
2565715 - Lock Cylinder w/Gears and Keys - Reachout/No Tail - Silver
Online Instructions: Andersen Perma-Shield Narroline Removal and Installation Instructions
Article: How to Install Andersen Gliding Door Handleset and Lock
Article: How to Change the Handing on an Andersen Exterior Keyed Lock
Article: Replacing a Sheared Tailpiece Receiver in an Andersen Sliding Patio Door
