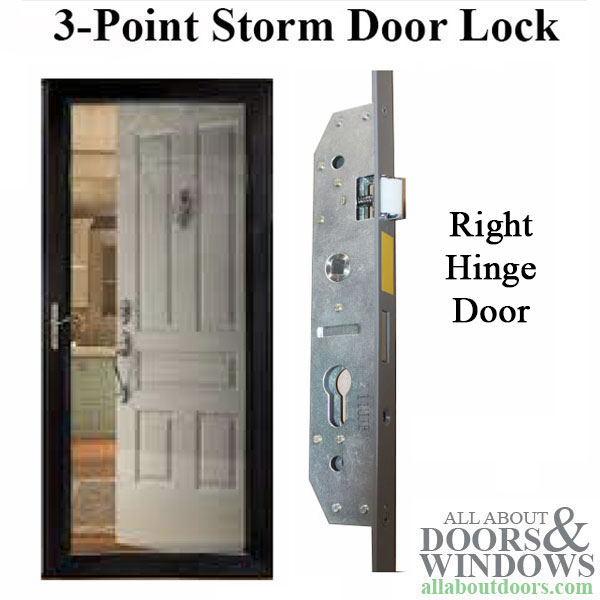

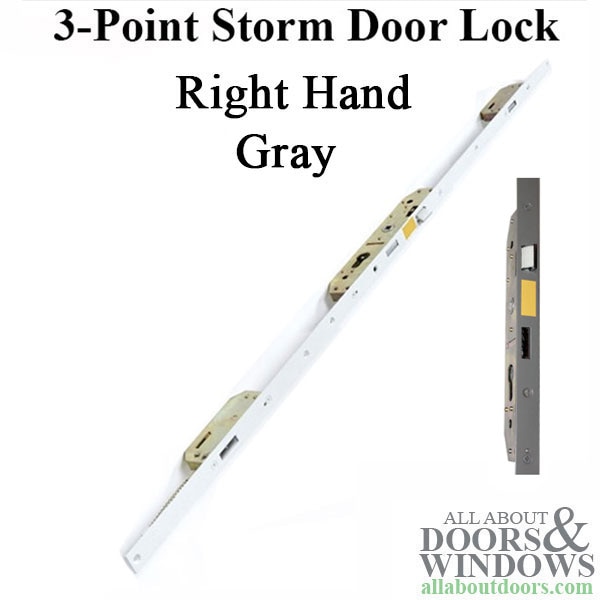

Andersen / Emco Storm Door Multipoint Lock (MPL), 2 Hooks and Deadbolt, RH- Gray

Part Number: 42541
Price: $135.85
Andersen / Emco Storm Door Multipoint Lock (MPL), 2 Hooks and Deadbolt, RH- Gray
Andersen / Emco 4000 series storm door with multipoint lock, can be used with 1 or 3 locking points
Can be used as single point lock, deadbolt at handle only or a 3-point lock engaging upper and lower deadbolts
This Andersen lock is used with the full view laminated safety glass models

Backset: 1-1/16 inch (27mm) 1.063
Deadbolt Throw: 3/8 inch (10mm)
Faceplate Width: 13/16 inch (21mm)
Spindle Hub: 5/16 inch (8mm)

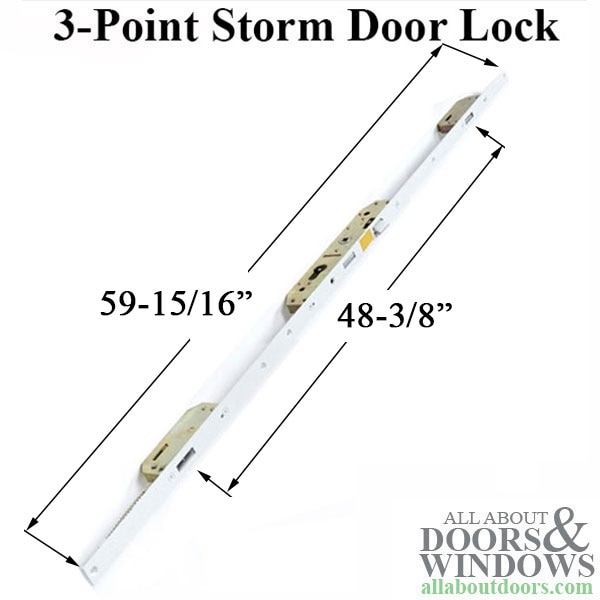

Faceplate Length: 59-15/16 inch
Faceplate Color: Gray ( white or gray)
Handed: Yes, Left Hand or Right Hand from Factory
NOTE: Handing can be changed by loosening the faceplate screws and rotating the spring latch
Handle to Cylinder PZ: 2-1/2 inch (63mm)
Deadbolt Spread: 48-3/8 inches top to bottom deadbolt

Lock Operation:
1. Center Deadbolt only - can be locked with key or thumb turn on cylinder
2. 3-point lock - Lift handle and use key or thumb turn to engage all 3 locking points
3. Unlocking 3-point lock - Lift handle and use key or thumb turn to disengage all 3 locking points
