Andersen 3-Panel Perma-Shield Gliding Door - Lock Housing and Bolt Assembly, - Stone

Part Number: 1997221
Price: $31.10
Andersen Window - Perma-Shield Sliding Door - Lock Housing and Bolt Assembly, 3-Panel Door - Stone (1981 - Present )

Lock Parts for 3 panel Door.
Part numbers may include 1997149 or 71338-5.

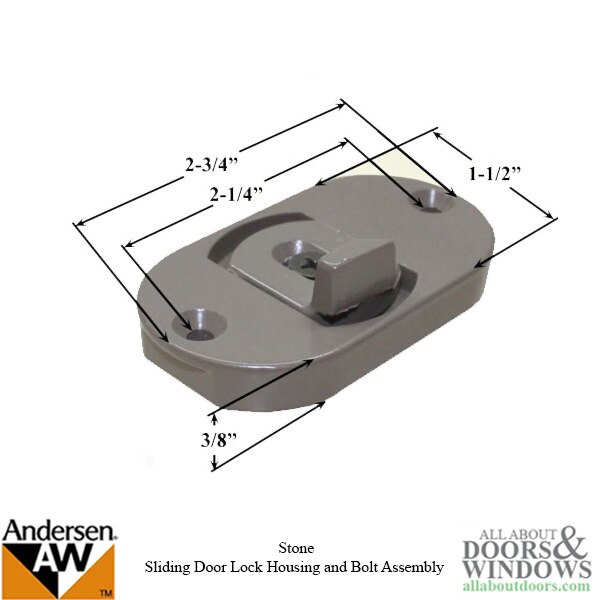

Outside Dimensions: 1-1/2 x 2-3/4 inch.
Screw holes spaced by 2-1/4 inches.
Available in Stone or White

Andersen lock housing and adjustable bolt assembly in stone color.
This part attaches to the lock side stationary panel and serves as the locking mechanism for the operating panel.
This part is for a 3-Panel patio door configuration only.
This part is used to replace the patio door handle manufactured from 1982 to present.

Related Parts:
1997162 - Latch Mechanism - 3 panel - Stone
1997161 - Inside Latch - 3 panel - Stone
2573069 - Left Hand Tribeca Lock
2573079 - Right Hand Tribeca Lock
