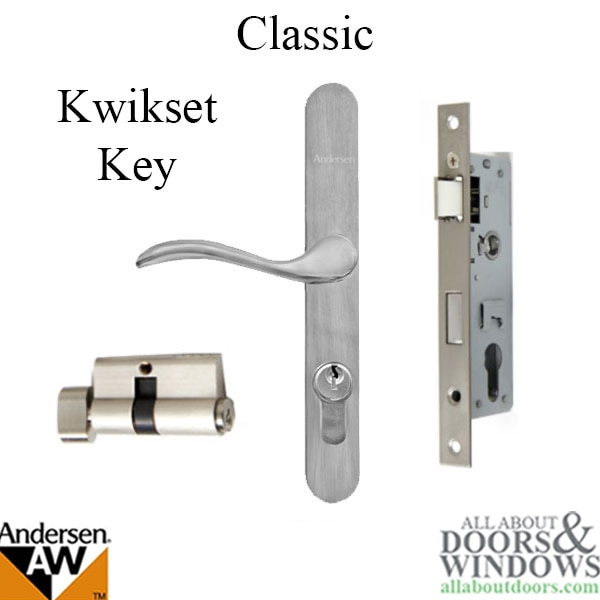

Special 1 inch backset with special off center cylinder
Used on Andersen 2000 Series storm doors with mortise lock.
Euro-Style Profile cylinder: off-center
Cylinder Type: offset tail piece
Overall Length: 2-1/8 inch (55mm)
Key Cylinder Inside Measurement: 1-1/4 inch (32mm) to screw hole
Key Cylinder Outside Measurement: 7/8 inch (22mm)
Keyway: Schlage 5 pin, SC1
Backset: 1 inch. Mortise lock body (standard is 7/8 inch)
Trim plate mounting screw holes: spaced 6-11/16 inch
Door Thickness: 1-1/4 inch
Handle Style: Classic
Handle Diameter Hole: 9/16\'' (standard 5/8\'')
Handle Spindle: 5/16\'' square, 3-1/4\'' length
Color / Finish: Satin Nickel, Polished Brass
PLEASE NOTE - This Lock will work only on doors with these measurements,
Style might be different than current lock.
Old Style had a round hole for outside plate. (discontinued)
To reverse the handing of the Mortise Lock, simply remove the Faceplate and rotate the Spring Latch 180 degrees, then reconnect the faceplate.
