Anderberg 201SS 4 Bar Window Hinge No Stop Stainless Steel

Anderberg 201SS 4 Bar Window Hinge No Stop Stainless Steel

This hinge is designed for casement windows only.
When replacing hinges it is best practice to replace them in pairs.
NOTE: These hinges are priced and sold each.

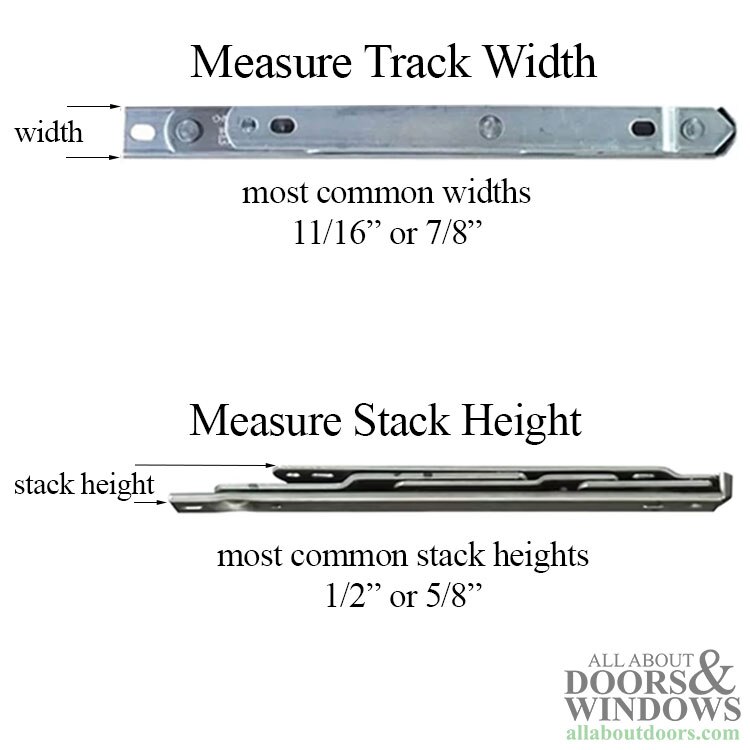

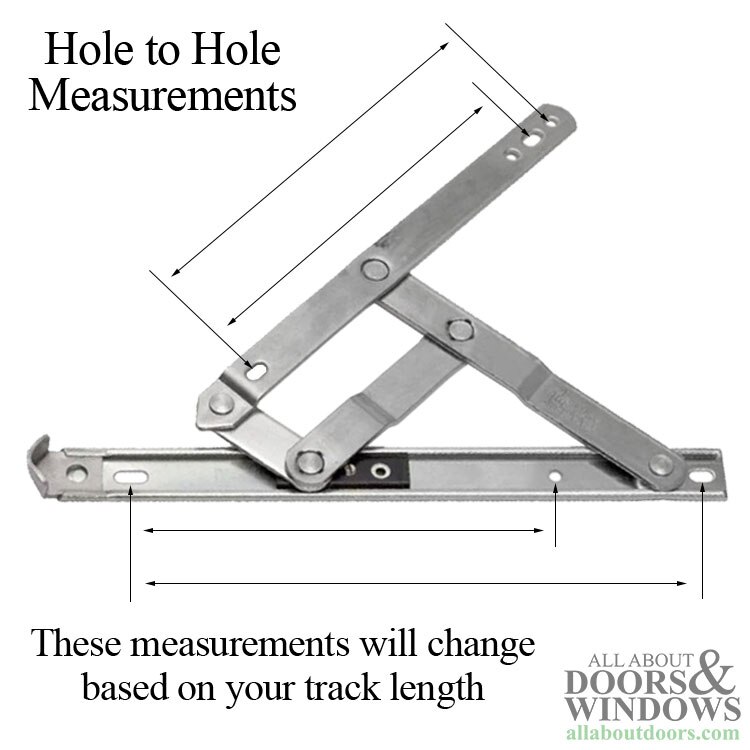

See additional images for how to measure these features of your hinge.
If your measurements do not match these then you may need a different hinge. (see related items below)

Track Width: 11/16 inch (0.687)
Track Stack Height: ½ inch (0.5)
Stop: NO (designed for casement windows only)
Handing: Left or Right Hand (reversible)
Shim: None - If you need a shim for your replacement please contact our office for ordering information.

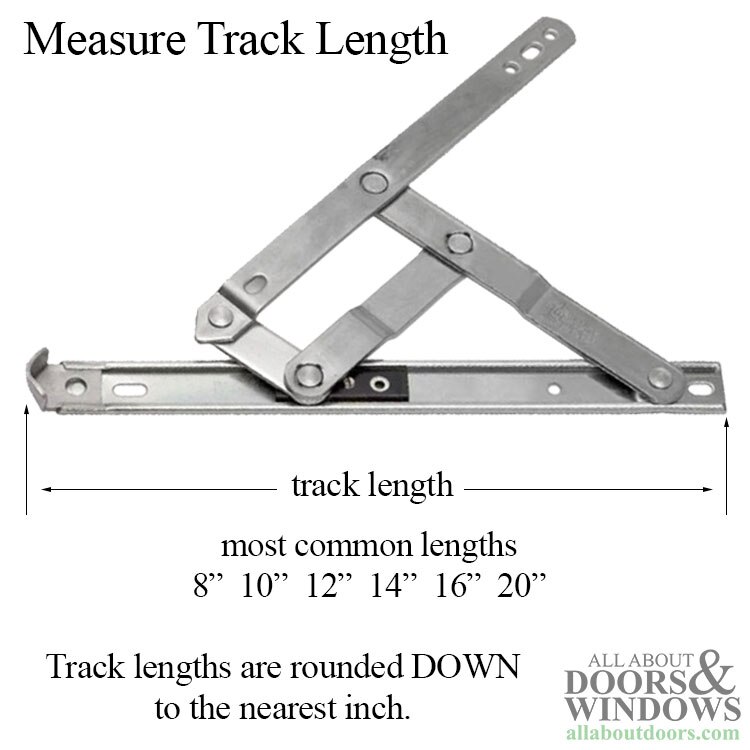

Available Track Lengths: (rounded DOWN nearest to one of the following lengths)
8"
10"
12"
14"
16"
20"

IMPORTANT NOTE (new construction projects)
Use the following chart to account for Window Weight and Width
8" Track Length - Supports up to 65 lbs at a width of 32"
10" Track Length - Supports up to 65 lbs at a width of 32"
12" Track Length - Supports up to 65 lbs at a width of 32"
14" Track Length - Supports up to 65 lbs at a width of 32"
16" Track Length - Supports up to 65 lbs at a width of 32"
20" Track Length - Supports up to 65 lbs at a width of 32"
