Amarlite Replacement Mortise Lock for Narrow Style Doors.

Amarlite  / GUARD Amarlock Replacement Lock for Narrow Style Doors.

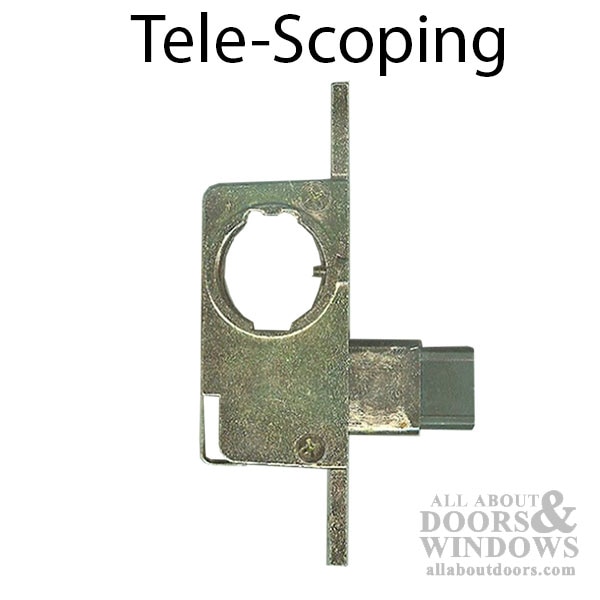

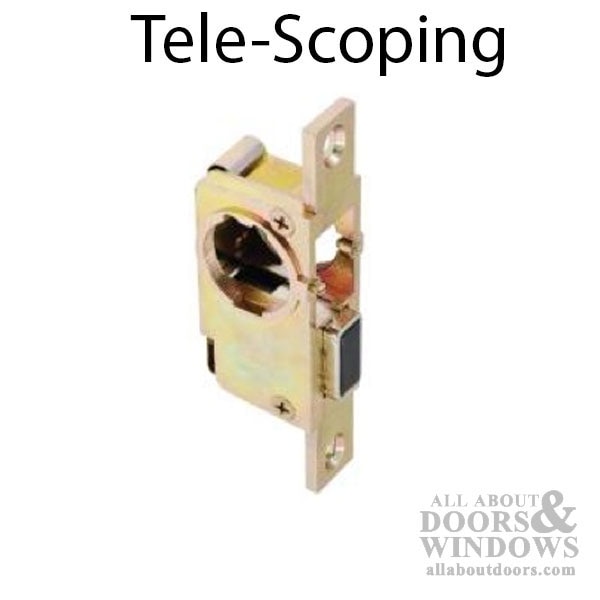

Unique, tele-scoping bolt-in-a-bolt, for a total throw of 1-1/4.

Uses a 1-3/16 diameter cylinder. ( not Included )

Backset: 7/8

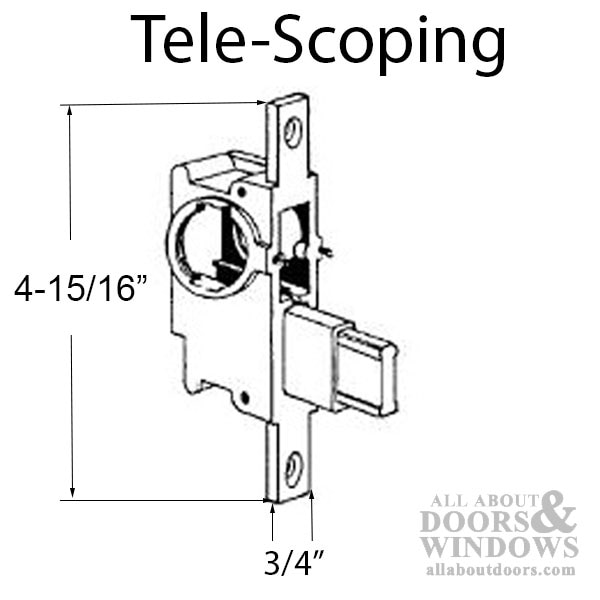

Case Size: 1-1/8 x 1-1/2 x 2-15/16 Bolt:

Housing: 1/2 x 3/4 x 1.

Steel extension: 11/32 x 19/32 x 7/8 cast steel.

Face: 1 x 5 with 4-1/2 CC oval screw holes.

Cylinder not included.

The 380070 is the only exact replacement for the original Amarlite Telescopic Bolt lock.

Cylinder holes are threaded for original Amarlite cylinder and other standard size mortise cylinders. Special cam is required to work with this lock, such as #6 Yale, or #4 ilco narrow.
