Active Concealed Rod Version 60mm Mortise Lock - Square Face

Active Door, Multi-point Mortise lock body used with concealed Vertical rods
Typical Used on Vinyl Doors like Milgard, Marvin and others

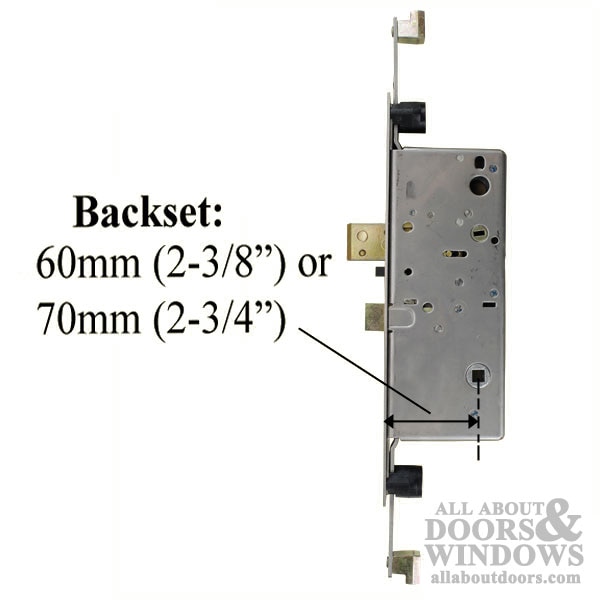

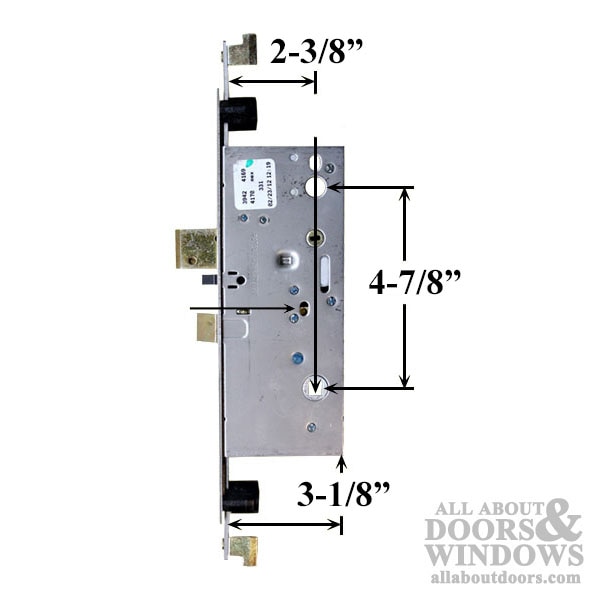

Lock Backset: 2-3/8 inch (60mm)
Faceplate Attached: Yes
Faceplate Length: 10-3/8"
Faceplate Width: 1-1/16"

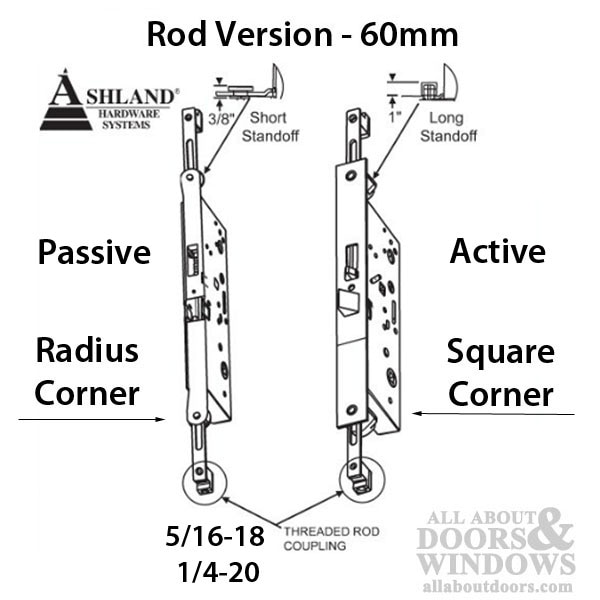

Standoff: Long, 1 inch Thick Plastic
Coupling Thread: 1/4-20
Handle PZ Spacing: 3-5/8 inch ( 92mm)

Sticker on the lock may have similar numbers:
3149 611
0039
09/22/04 09:42
Sold Each - lock mortise body only, no rods

Operation:
1. Lift handle to Extend Rods
2. Turn Key or Thumbturn to extend deadbolt

Change Handing: reverse latch bevel
1. Insert a screwdriver into the slot behind the latch
2. Pull down on Handing Release, latch pops out
3. Rotate the latch and push it back into the lock case
Always check the function of the lock before closing the door
