Academy Security Door Mortise Lock - Complete w/ key Cylinder - Black

Security Door Mortise Lock - Diecast, Low Profile lever handle set.
Used on Storm and security doors.


Faceplate Width: 19/32 inch (15mm)

Faceplate Length: 7-7/16 inch (190mm)

Backset: 1-3/16 inch (30mm)

Handle Length: 7-1/4 inches.

Width: 1-1/4 Inches.

Strike plate: 7-7/8 inches x 1-3/8 inches.

Cylinder Lock: 2-7/16 inches x 1-1/4 inches.

Mortice Lock Assembly: 6-1/8 inches x 1-3/4 inches.

Mortice Lock Assembly Screw Center Length: 6-3/4 Inches

Latch Receiver: 1-5/8 inches x 1-3/16 inches.

Latch Receiver Screw Center Length: 2-9/16 Inches

Spindle Length: 2 Inches

Color: Black Finish

Keyed Cylinder with Thumbturn and 2 keys.
Color: Black Finish on plates and handles.
Cylinder: Euro Type; Brass with thumb turn
Optional Chrome Cylinder with key on both sides - Add $10.00
This is a replacement for an Academy Storm Door.
Markings on some Locks: Star Die Casting, Inc.
Patent No 4.573.967
This also Replaces Some mortise locks used by Columbia and Security Door and window, Miami Florida

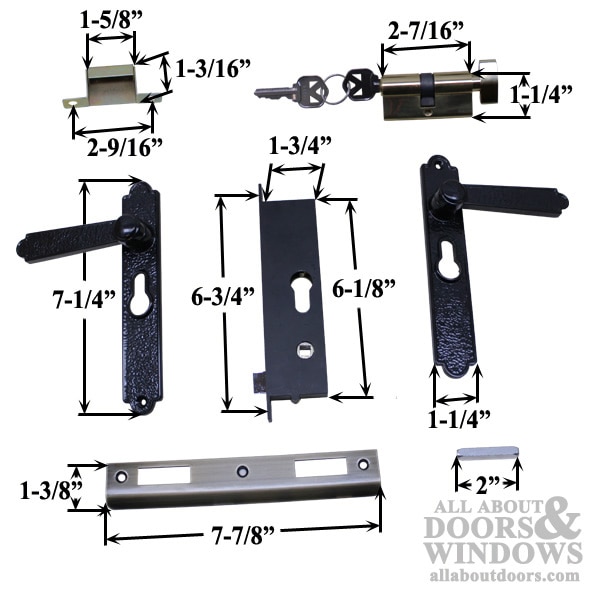

Please see the second picture for the difference and for issues with rehanding this lock.
NOTE: To change handing on new style lock.
1. Loosen screw located below handle ( see picture)
2. Insert spindle / handle and retract latch and remove screw
3. Release pressure on latch, remove and reverse
4. Re-install latch and apply pressure to retract latch
5. With latch retracted install screw and tighten
6. Latch reversal complete; Check lock before installing on door.
Individual parts sold separately if you don't want compete handle

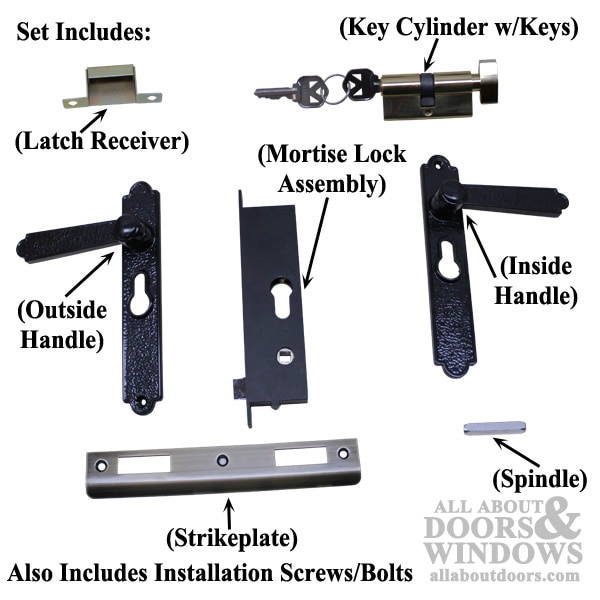

Diagram Shown Here
Installing Your Security Door Lock

Priced and Sold Each.
