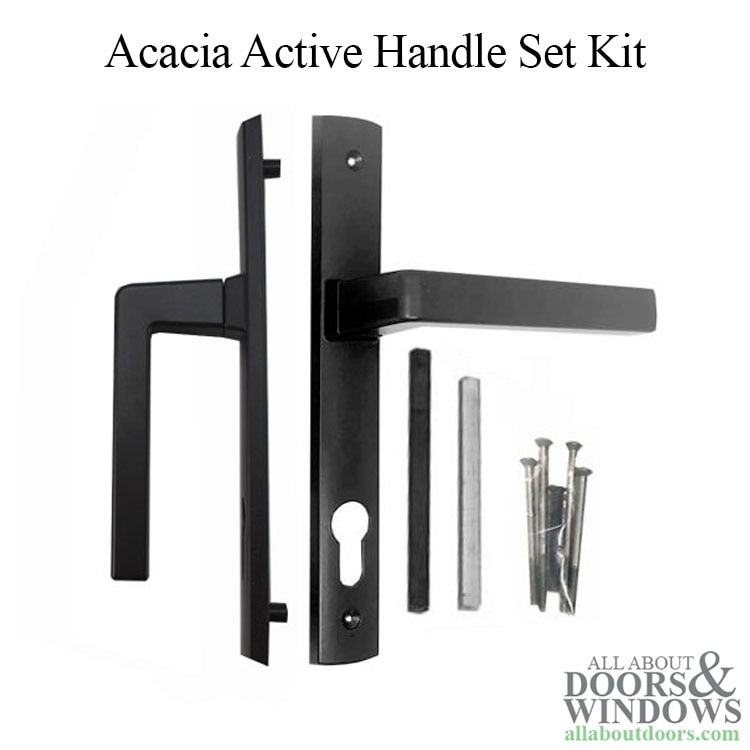

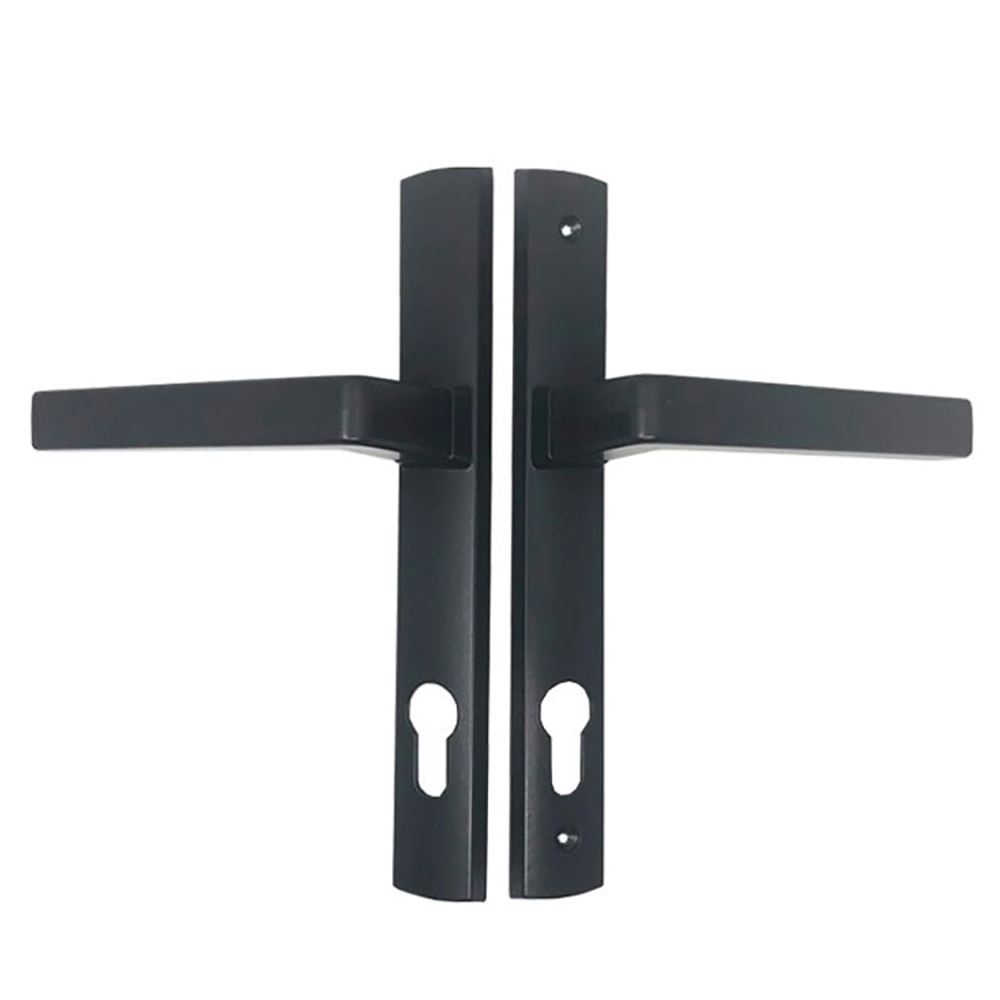

Acacia Active Handle Kit for 1-3/4" and 2-1/4" Doors

Part Number: DL01-6160-DBRZ
Price: $148.97
Non-handed and designed to be compatible with the INTERLOCK® lever compression lock, our handles complete the ideal multi-point locking solution for aluminum and vinyl swing door applications.

Door Thickness
Minimum 32mm (1.25 Inch)
Maximum 45mm (1.77 Inch)

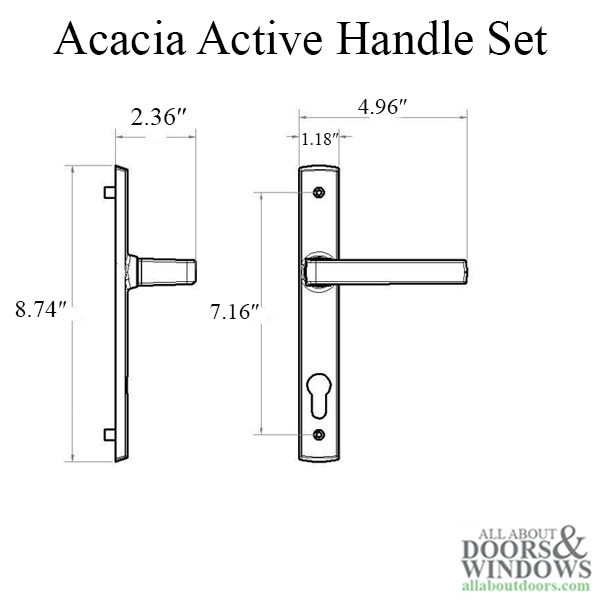

Plate Dimensions
222mm(H) x 30mm(W) x 5mm(D) (8.74 in. X 1.18 in. X 0.19 in.)

Lever Dimensions
Length 122mm (4.80 Inch)
Projection 56mm (2.20 Inch)
Finger clearance 41mm (1.61 Inch)

Features
Single-Motion handle activation of deadbolt and all remote locking points
Zinc alloy composition with nickel plating
