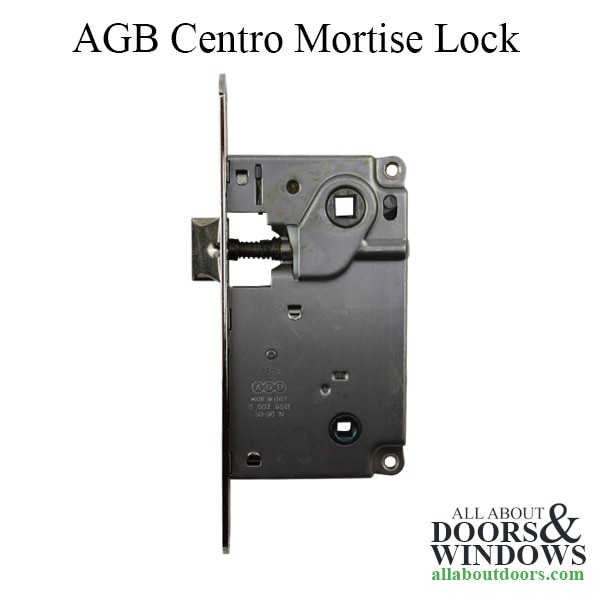

AGB Centro Mortise Lock, 50mm Backset, 18mm Radius Faceplate, Bathroom Function

Part Number: B01013.50-NI
Price: See Description

Out of Stock

AGB Centro Mortise Lock, 50mm Backset, 22mm Radius Faceplate, Bathroom Function

Centro lock box only
Faceplate Size: 18mm x 196mm (23/32" x 1-23/32" )
Faceplate : Radius End, 3mm thick, Beveled latch only, No Deadbolt
Mortise Lock Box: 13.5mm (17/32") thick
Backset: 50mm (2")
PZ Center of handle to center of thumbturn: 90mm (3-17/32")
Spindle Hub: 8mm (5/16") Square
Handing: LH or RH Reversible
Function: Bathroom, requires thumbturn interior, Locking latch only, no deadbolt
Finish: Nickel Plated (optional : Brass Plated, Bronze Plated)

Related Parts:
18mm faceplate: B01013.50-Choose Color
22mm faceplate: B01012.50-Choose Color
