Discontinued ADA Compliant Door Closer Adjustable # 1-4, Dual Valve - Duranodic Bronze

ADA Compliant Door Closer - Dual Valve -Adjustable # 1-4 - Duranodic Bronze
ADA model offers adjustable spring power sizes 1- 4 for use on interior doors requiring less than 5 lbs. of opening force and exterior doors requiring less than 8.5 lbs.
This complies with ADA handicap codes and ANSI/BHMA standard requirements.

Economical Streamline, Non-Hold Open, Non-Handed Door Closer

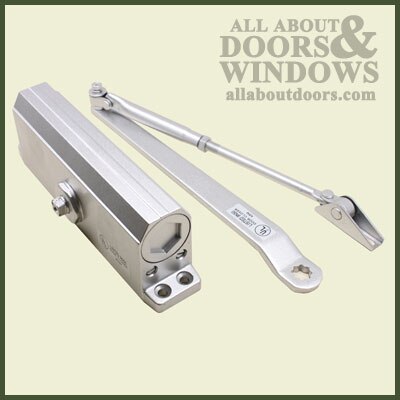

Includes one closer and all necessary hardware for Regular or Top Jamb Installation
UL Listed Closer: Yes
Adjustment Values: 2 - Speed and Latching
Dual valves to control closing and latching speeds.
Cast aluminum body in painted finishes.
Rack and pinion operation.
Non-handed, Non-Hold Open Closer for standard, top-jamb or parallel arm installation.
Hydraulic fluid for any climate operation and constant lubrication.
Mounts to most glass and aluminum doors without special adapters.
heavy duty threaded adjustable arm with lock nut.

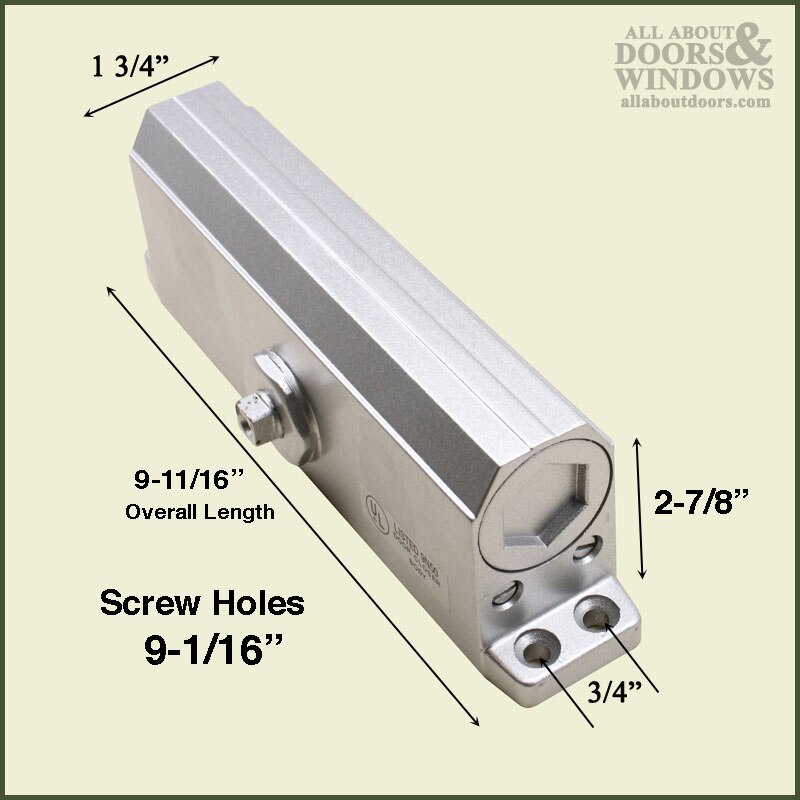

Measurements:
Size: # 1-4 Adjustable Strength for Interior / Exterior Doors
Screw Holes Height: 3/4 inch
Screw Holes Width: 9-1/16 inch

Available Finishes:
Aluminum
Bronze - Discontinued

NOTE:
Parallel Arm Installation requires mounting bracket 381037 - Not Included
Hold open applications requires arm and bracket - Not Included

Related Accessories:
Wide Drop Plate - 381027
Narrow Drop Plate - 381028
Hold Open Arm - 381032
Regular Arm - 381031
Top Jamb Extender - 381034
Parallel Arm Bracket - 381037
Hold Open Parallel Arm Bracket - 381036
Cover - 381026
Thru Bolts -  381030
