Marks Entrance Door Lever Lock Set Marks Series 9215 Ornamental Iron Door Mortise Lock

Marks 9215 Series Ornamental Iron Door Mortise Lock set. Used primarily with steel security doors.

Marks Series 9215 Unilock Entrance Lockset - 1" x 7-1/8" Lock Face - Right Hand Reverse - Choose Color

Important Keyway Information:
1 inch thick door option comes with a Marks "A" Keyway (Kwikset KW1)
1-¾ inch thick door option comes with a Marks "C" Keyway (Schlage SC1)

Available Colors: Polished Brass, Brushed/Satin Chrome, Antique Brass, Oil Rubbed Bronze

Door Thickness: 1" (standard) or 1-3/4" (special order, please allow 4-8 weeks)
Face Plate: 1 inch by 7-1/8 inch
Blue Box measures 5-1/2 by 3-3/8 inches.
Backset: 2-1/2 inches from faceplate to center of holes for lock or handles.
Spindle: 5/16 inch (8mm) Square
Locks: Double Cylinder Mortise lock with 2 keys.
Handles: Lever Handles inside and outside with trim plates.

Handing: Right Hand Reverse (if key is below lever, handles are on the right when you stand outside the house)

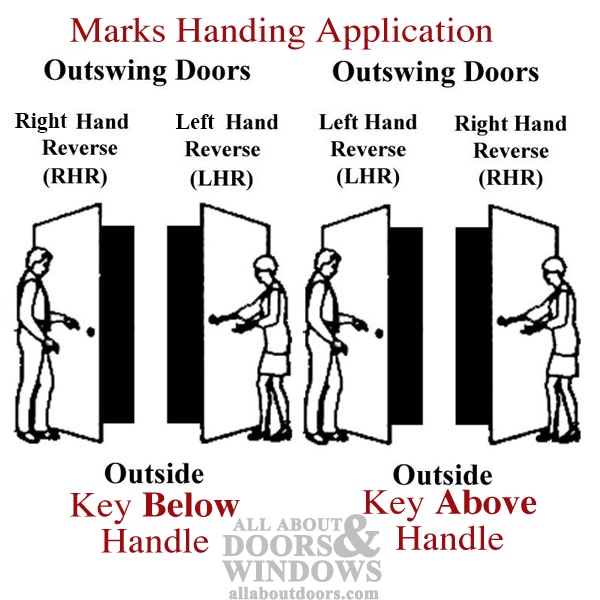

HANDING INFO: The key can be installed ABOVE or BELOW handle on OUTSWING security doors

Key Below Lever:
Viewed From Outside, Hinges on Left, Handle on Right = Right Hand Reverse (RHR)
Viewed from Outside, Hinges on Right, Handle on Left = Left Hand Reverse (LHR) --> see 301076

Key Above Lever:
Viewed From Outside, Hinges on Right, Handle on Left = Right Hand Reverse (RHR)
Viewed from Outside, Hinges on Left, Handle on Right = Left Hand Reverse (LHR) --> see 301076

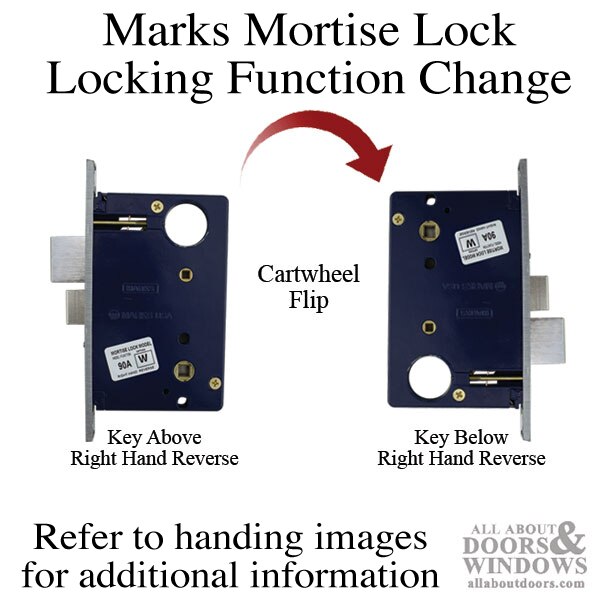

When the lock is inverted it changes the locking function.

Locks are reversible, but better to get what you need.

Resources:
How to change a Marks lockset from right hand reverse to left hand reverse (and vice versa)

For the same lock with knobs instead of levers, see 301073 - Marks Series 22 Unilock Entry Lockset with Knobs
