9" Magnum Flush Slide Bolt 3/8" Standard Profile, 5/8" Width Tip

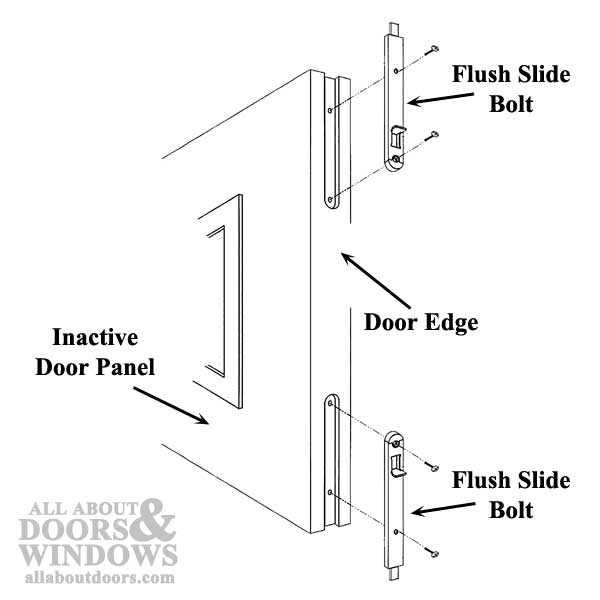

Magnum 9 inch flush slide bolt for wood door astragals.
This slide bolt is used primarily with Trilennium multipoint locks.

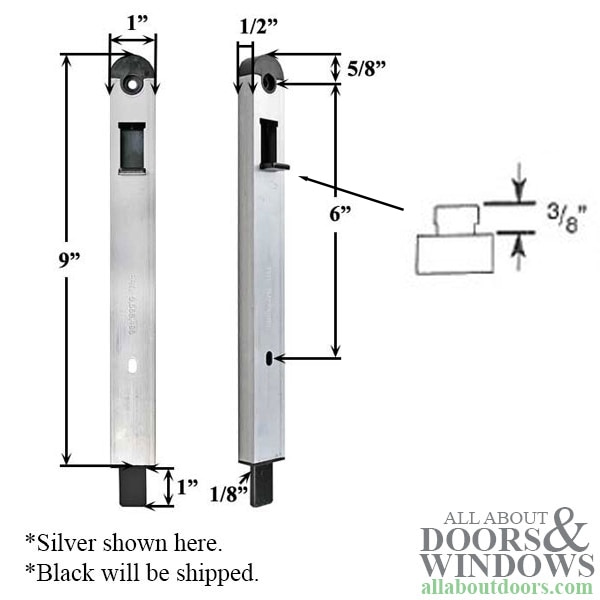

Magnum Bolt Specifications:
Housing length: 9 Inch
Housing thickness: 1/2 Inch
Bolt throw: 1 Inch
Bolt width: 5/8 Inch
Bolt thickness: 1/8 Inch
Screw Center: 6 Inch
Top to Screw Center: 5/8 Inch
Markings: Pat. # 6,666,486 ( 6.666.486)
Contents: 1 Flush Bolt, no screws, no strike plates

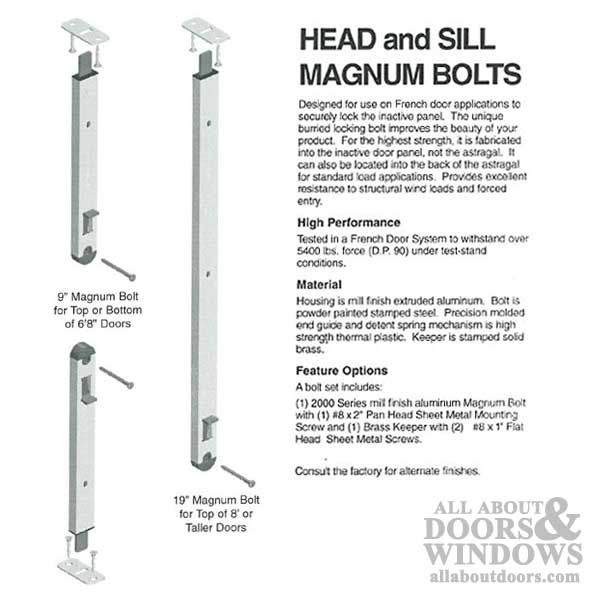

Available in 2 Lengths: 9 or 19 inch for taller doors.
Available in 2 Profiles: 1/4 or 3/8 inch
Available in 2 Tip Widths: 3/8 or 5/8 inch
Related Parts:
362039 - Magnum Strike Plates
