60.5/10 Hoppe Inactive 90° Non-Logo Cylinder - Satin Nickel
Hoppe New Style 90° non-keyed inactive profile cylinder with screw pack. Used on doors that are 2-3/4 inch thick
PZ00090C PACK - Insert with 90° turn and C-knob, accessories pack -
Insert with 90° turn and C-knob, accessories pack
Size: 60.5 mm / 10mm

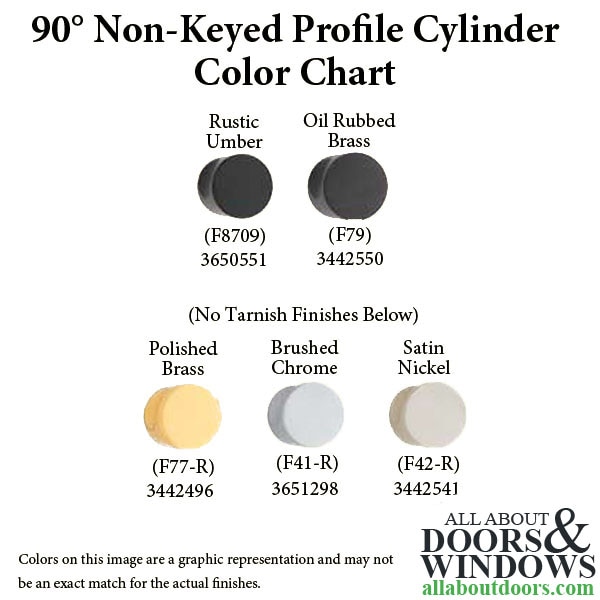

F42 satin nickel F42 satin nickel neutral
1 profile spindle 8x140 mm
3 screws M5x75 mm 17.46x20.63x1.58 mm
Country of origin: Germany;
CN Code: 83014011
The new style 90° allows homeowner to look at thumb turn and know if door is locked or unlocked. This is a non-keyed cylinder and typically used on inactive/passive doors.
This cylinder can be converted to a 360 degree cylinder if needed.

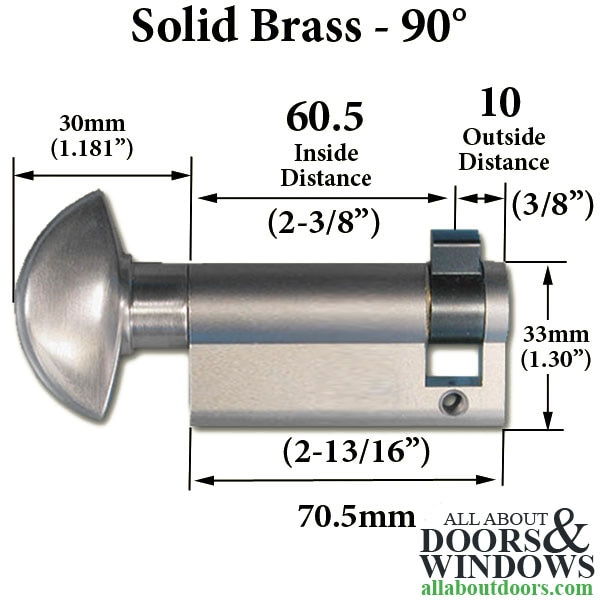

Measurements:
Inside Distance = 2-3/8 inch (60.5 mm)
Outside Distance = 3/8 inch (10 mm)
Overall (inside + outside) = 2-13/16 inches (70.5 mm)
Installation Instructions:
1. Remove Thumb Turn
2. Insert Aux. Tool and pull down on Release Tab
3. Turn cam and insert into lock.
4. Replace Thumb turn.
