6-5/8 x 63-1/2 x 1" Surround Only, No Glass

Part Number: 330066310
Price: $162.95

We reserve the right to adjust shipping. We will notify the customer prior to adjustment, and if they do not agree we may cancel the order at our discretion.

Old size door lite or sidelite surround only (No glass) Older Style, discontinued, Limited to Existing inventory

Plastic frame, no glass, Not Standard Size

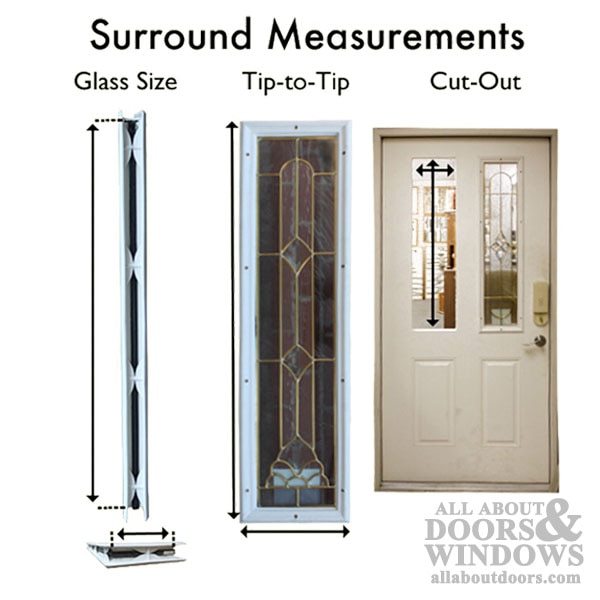

For Glass Size: 6-5/8 x 63-1/2 ( size Discontinued 2011)
For Insulated Glass Thickness: 1 inch ( glass not included)
Door Cut out Hole: 7-1/2 x 64-3/8
Tip-to-Tip Rim Dimensions: 8-7/16 X 65-1/2

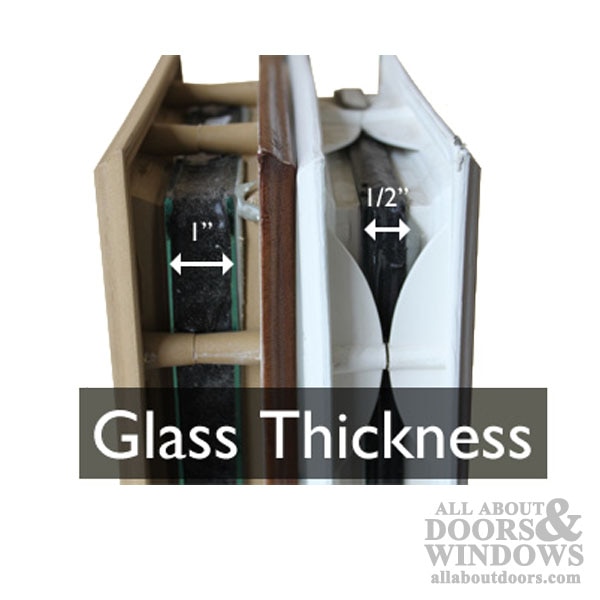

NOTE: Surrounds came with 1/2" & 1" insulated glass - be sure and check your glass thickness

Read our articles:
Basic info on ordering lites if you don\'t understand the above information
How to replace surrounds in an entry door or sidelite

Priced Each, Sold Each.

Please Note:
An adhesive like butyl caulk will be needed for installation of this product (not provided). Please contact us if you have any questions about installation.
