55.5/55.5, Hoppe Non-Logo 90 degree Keyed Euro Profile Cylinder
Hoppe Cresent Knob, Euro Profile Cylinder.
Satin Nickel New Style with 90 degree Thumb Turn allows looking at thumb turn to see is door is locked.

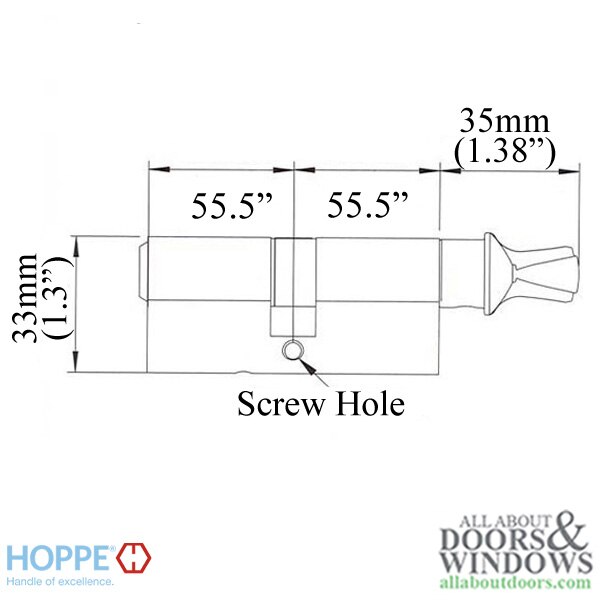

Cylinder Size 55.5mm / 55.5mm ( 2.18 / 2.18 = 4-3/8 inch)
Used with 2-3/4 to 3 inch Thick Doors depending on thickness of escutcheon plates
Take door thickness 3" x 25.4
3" X 25.4 = 76.2mm
Plus 1/2" on each side plates = 76.2 + 25.4 = 101.6mm
Divide by 2 = 50.8 minimum length - next size up 55/55
Available finishes: Satin Nickel, Rustic Umber, Matte Black
Article:
HOPPE Cylinder Installation and Rekeying
