50/50 Key/TT 100mm Euro profile cylinder - Satin Nickel

*Note: This part has been discontinued and is limited to existing inventory; can be replaced with 6-U7401-00-0-11

G-U / Ferco  50/50 Profile cylinder for 3" (76mm) thick doors with multipoint locks

This cylinder is for doors with the Multipoint lock centered in Door

Used with the Key operated and other applications requiring a Euro Profile cylinder.

Call Size: 50/50

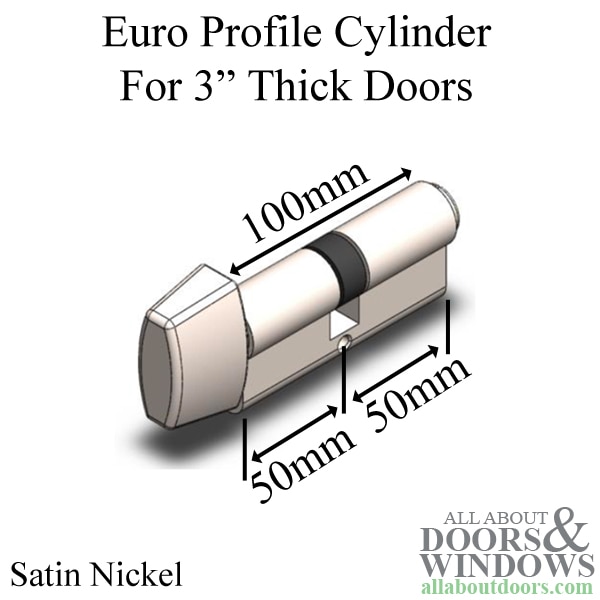

Overall Cylinder length: 4 inch (100mm)  3.937

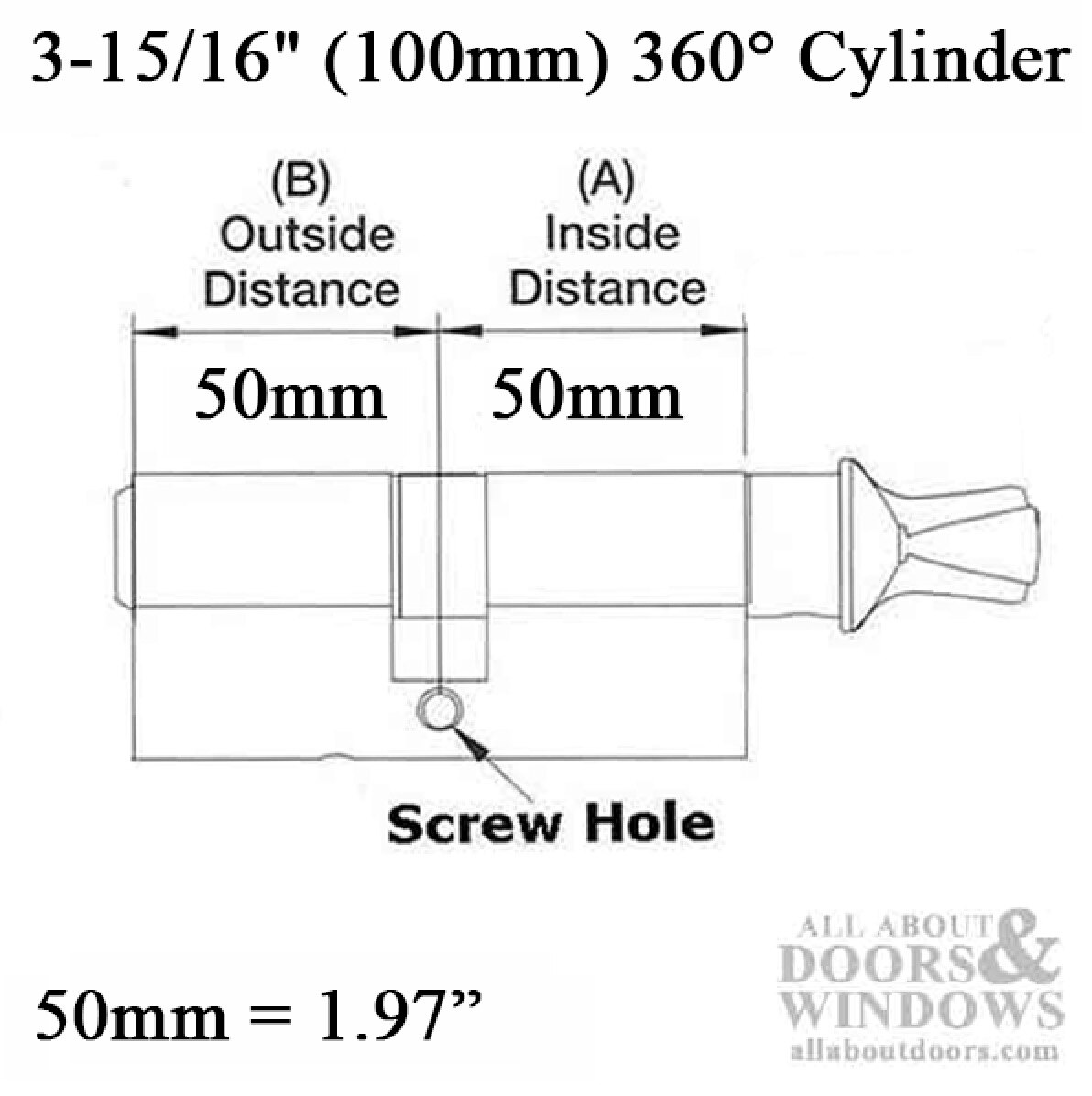

Measurements: 2 inch x 2  inch (50mm x 50mm ) 1.967 x 1.967

Thumbturn: Crescent Shape

Finish: Satin Nickel

Note on Cylinder Length:

To determine the length of profile cylinder needed for your door

1. Measure door thickness

2. Measure thickness of Exterior Trim Plate

3. Measure thickness of Interior Trim Plate

4. Add together the dimensions, this is the minimum length to be flush with trim plates

A longer cylinder is better that being  short.
