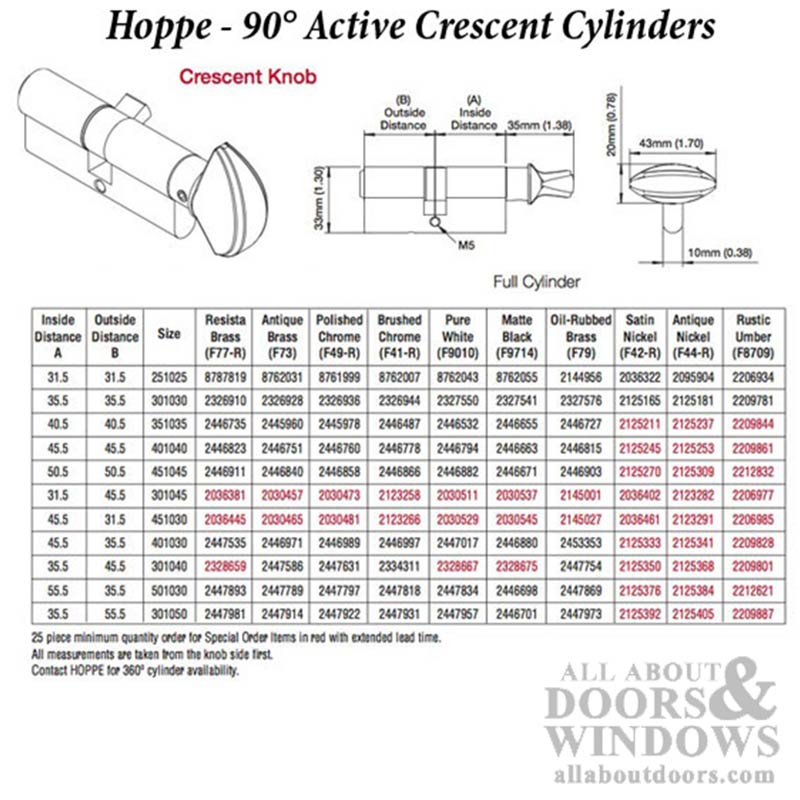

New style 90 degree HOPPE keyed profile cylinder with crescent knob.
Used on doors that are 1-1/8 to 2-1/4 inches thick.

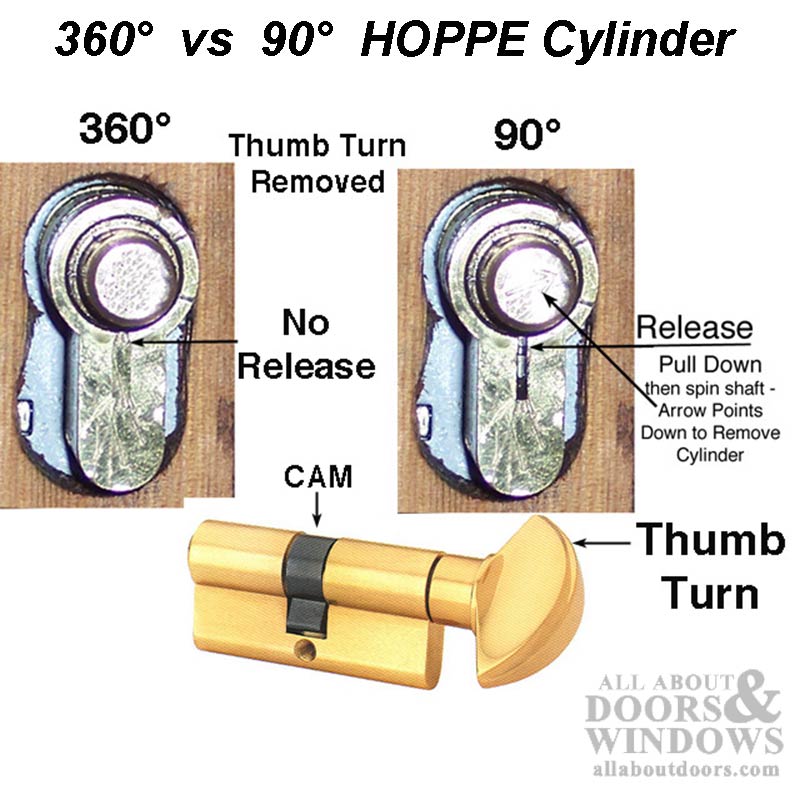

The new style 90 degree allows homeowner to look at thumb turn and know if door is locked or unlocked.
This cylinder can be converted to a 360 degree cylinder.

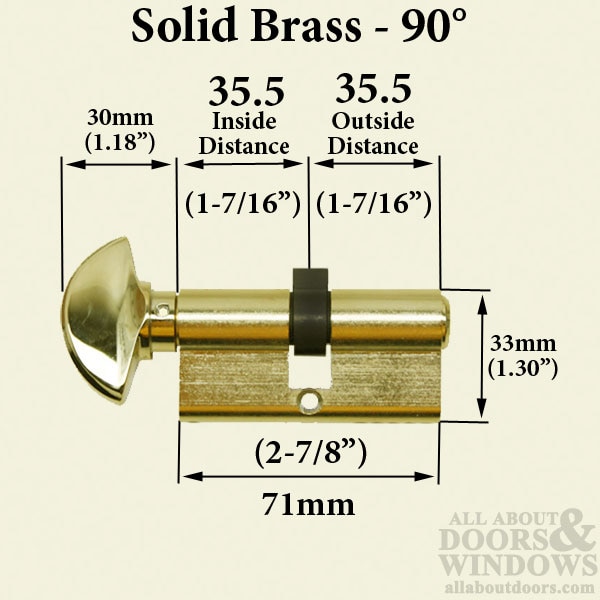

Inside Distance = 1-7/16 inch (35.5 mm)
Outside Distance = 1-7/16 inch (35.5 mm)
Overall (inside + outside) = 2-7//8 inches (71 mm)

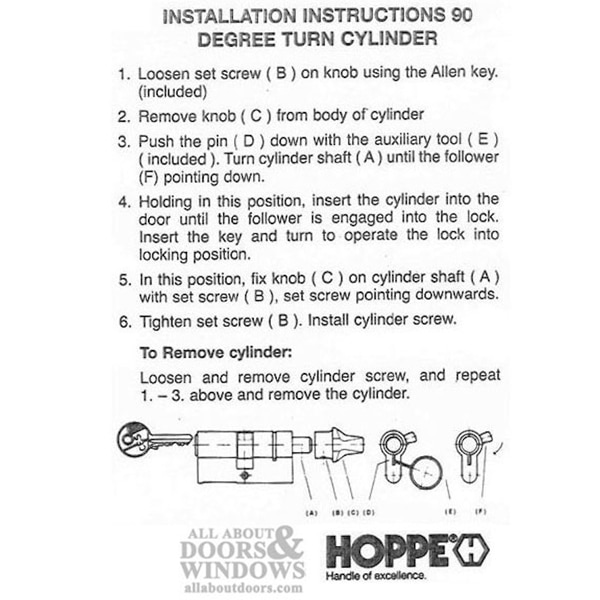

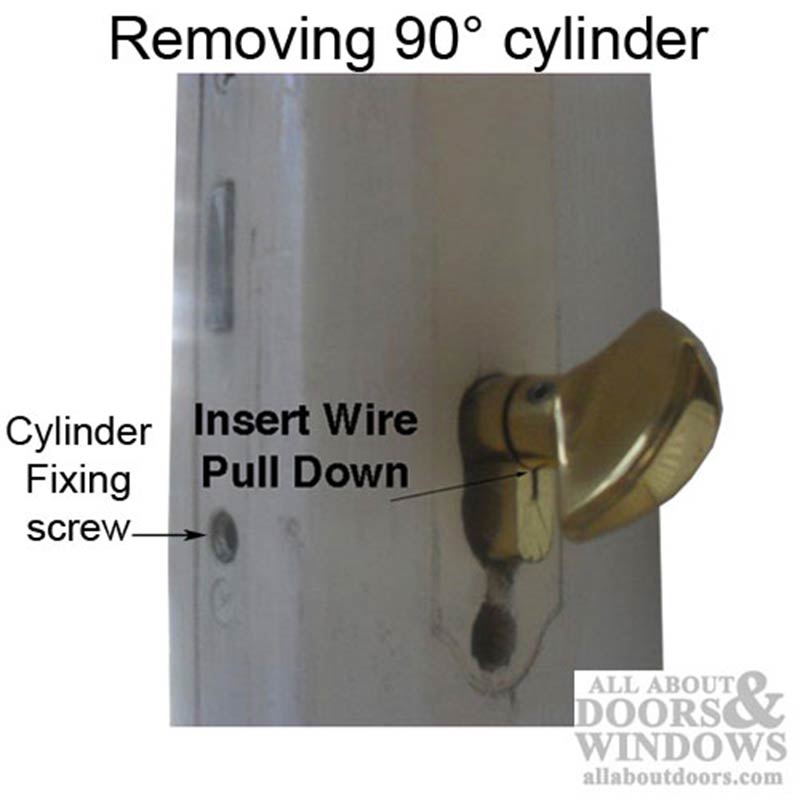

1. Remove Thumb Turn
2. Insert Aux. Tool and pull down on Release Tab
3. Turn cam and insert into lock.
4. Replace Thumb turn.

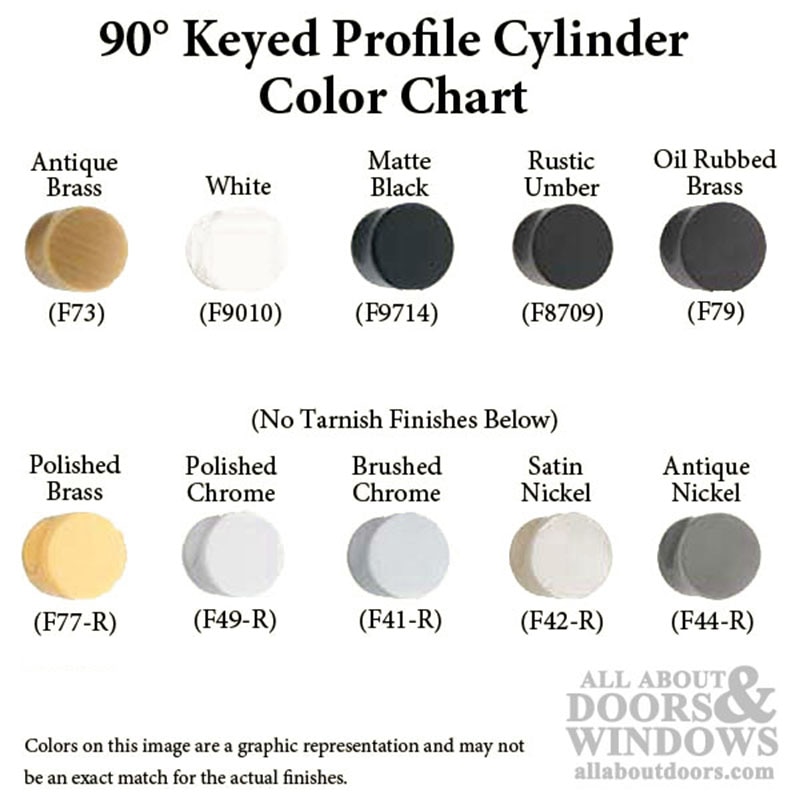

Rustic Umber (F8709)
Oil Rubbed Brass (F79)
Flat Black (Matte Black) (F9714)
Resista no-tarnish finishes:
Polished Brass (F77-R)
Brushed/Satin Chrome (F41-R)
Brushed/Satin Nickel (F42-R)
Note: Some colors may be special order, resulting in longer shipping times.
