45.5/10 New Style HOPPE Non-Logo 90° Non-Keyed Profile Cylinder Lock, Brass, Choose Color

Part Number: 414510010
Price:$122.14 to $143.87

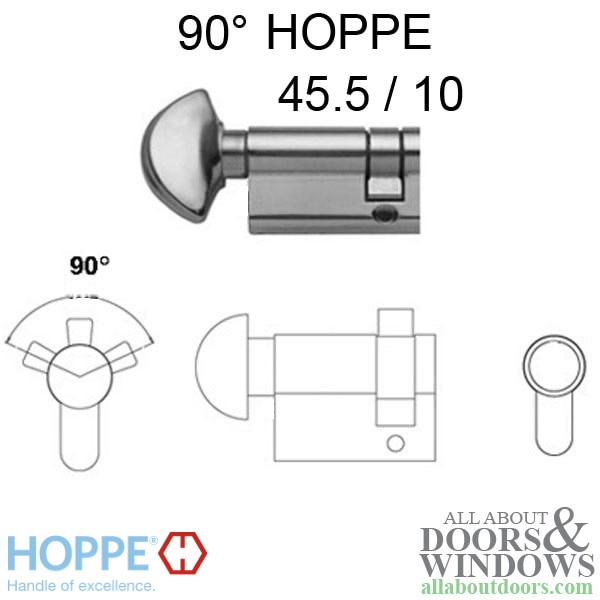

New Style 90 degree HOPPE non-keyed profile cylinder with Crescent Knob

Used on doors that are 1-3/4 inch or thicker.

Overall housing Length: 45.5mm/10mm (2-3/16 inch)
The New Style 90 degree allows homeowner to look at thumb turn and know if door is locked or unlocked.

This is a Non-keyed cylinder and typically used on inactive / passive doors.

This cylinder can be converted to a 360 degree cylinder.
Some finishes are a ''Resista'' : No-Tarnish Finish

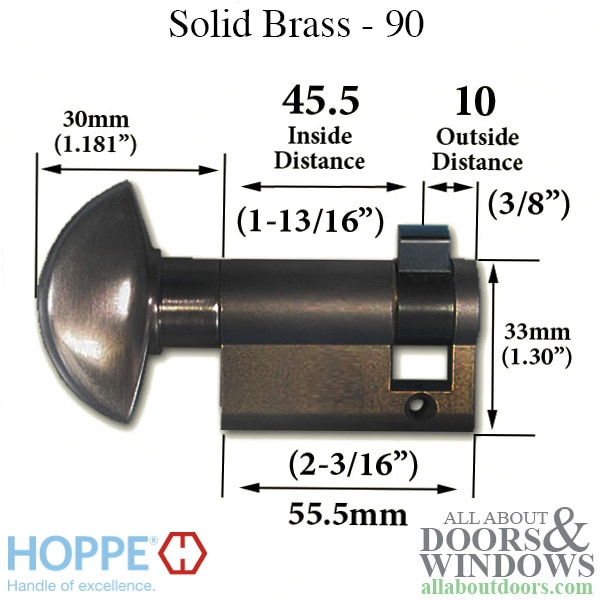

Measurements:
Inside Distance = 1-13/16 inch (45.5mm)
Outside Distance = 3/8 inch (10mm)
Overall (inside + outside) = 2-3/16 inches (55.5mm)

Installation Instructions:
1. Remove Thumb Turn
2. Insert Aux. Tool and pull down on Release Tab
3. Turn cam and insert into lock.
4. Replace Thumb turn.

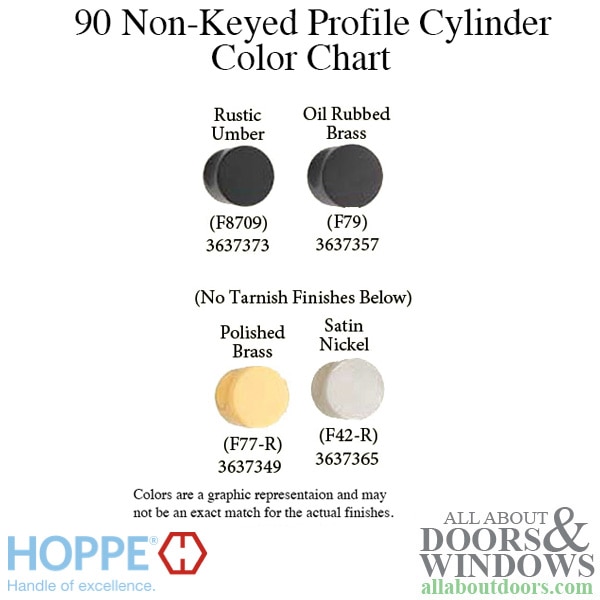

Color / Finish Options:
Rustic Umber (F8709)
Oil Rubbed Brass (F79)
Brushed Chrome - Note: Has a Satin Nickel Body, Brushed Chrome Knob

(No Tarnish Finishes)
Polished Brass (F77-R)
Satin Nickel (F42-R)

NOTE:
Some colors may be special order, resulting in longer shipping times.

Guides:
Installing a 90 Degree Cylinder
HOPPE Cylinder Installation and Rekeying
Converting a HOPPE 90 Degree Cylinder into a 360 Degree Cylinder
