3 roller Sidelight Hardware, 25mm Operable, Silver Ferguard
G-U Operable Sidelight Hardware with a 25 mm (1 inch) Backset
Series: Multi-point Door Lock Accessories
Backset: 1 inch (25mm)
Faceplate Width: 5/8 inch (16mm)

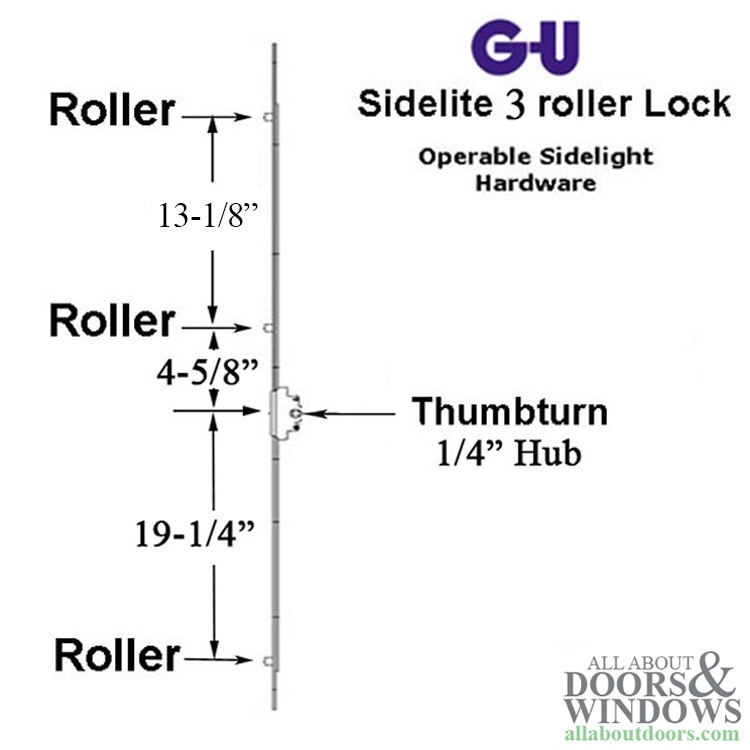

Overall Length: 44-3/8 inch (1128mm) 44.41
Top Roller: 13-1/8 inch (330mm) 13.180
Middle Roller: 4-5/8 inch (118mm) 4.645
Bottom Roller 19-1/4 inch ( 490mm) 19.29
Spindle Hub Diameter: 7mm Square
Faceplate Finish: Silver Ferguard ( other finishes available)
Related GU Parts:

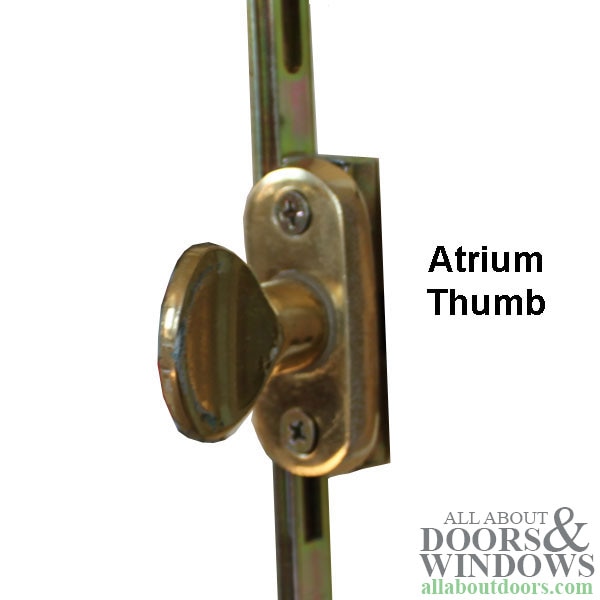

6-U1982-00-0-03 - Polished Brass Rosette and Thumb-turn
9-U9903-00-0-3 - Sidelight Locking Plates
9-U2500-50-0-03 - Attachment Screws - Rosette (Not Shown)
6-U0050-00-0-2 - Attachment Screws - Sidelight (Not Shown)
