Marks 22 Series Ornamental Iron Door Mortise Lock set.
Available Colors: Polished Brass and Brushed/Satin Chrome
Door Thickness: Components are for a 1 inch thick door.
Used primarily with Steel Security Doors.
Face Plate: 1 inch by 7-1/8 inch
Blue Box measures 5-1/2 by 3-3/8 inches.
Backset: 2-1/2 inches from faceplate to center of holes for lock or handles. Spindle: 1/4 inch (7mm) Square
Locks: Double Cylinder Mortise lock with 2 keys.
Standard Keyway: Kwikset 5 pin KW1
Handles: Round inside and outside knobs.
HANDING INFO: OUTSWING DOORS
NOTE: PLEASE read all information; View All Images

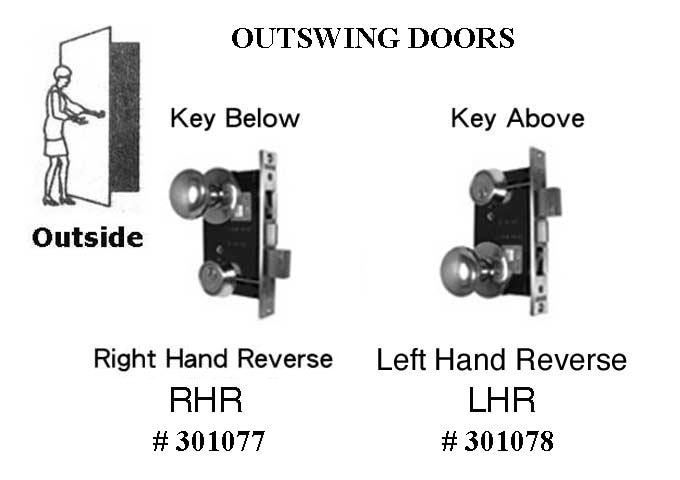

Key can be above or below handle, if key is opposite of diagram, then handing changes from RHR to LHR.
THIS LOCK HAS KEY BELOW HANDLE

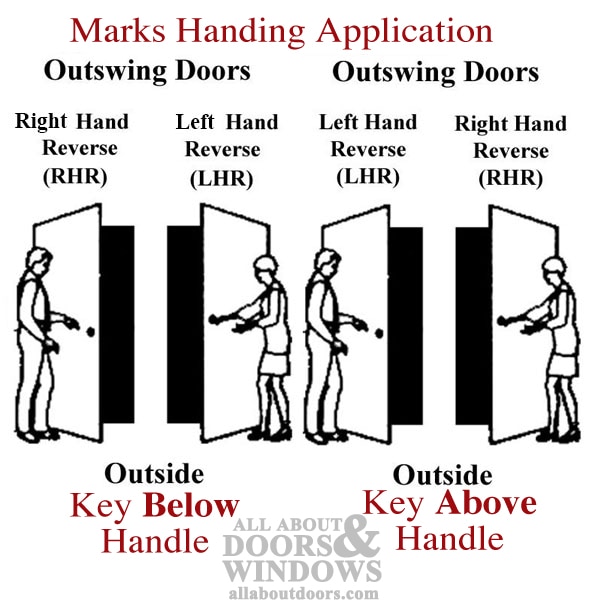

When standing on the outside of home and the handle is on the right, this is a Right hand Outswing Door or Left Hand Reverse (LHR)
Handing can be Reversed, better to get the correct handing up front.
Please see additional pictures for more illustrations.
Changing the Handing of Marks Mortise Locks
