20mm Winkhaus OML Replacement 45/92 P2000 92-1/2" Single Door

Part Number: 49906-2045H-202
Price: $310.00
This Winkhaus Multipoint lock Fits 92-1/2" Tall Doors Only
This is a custom Replacement for the Winkhaus 1-3/4" thick, 92-1/2" Tall Door with Active Multipoint Lock.
This is an American Cylinder version - Will need new Handle Set Trim

Application: Active Door, 3 point lock, 1 deadbolt and 2 Hooks

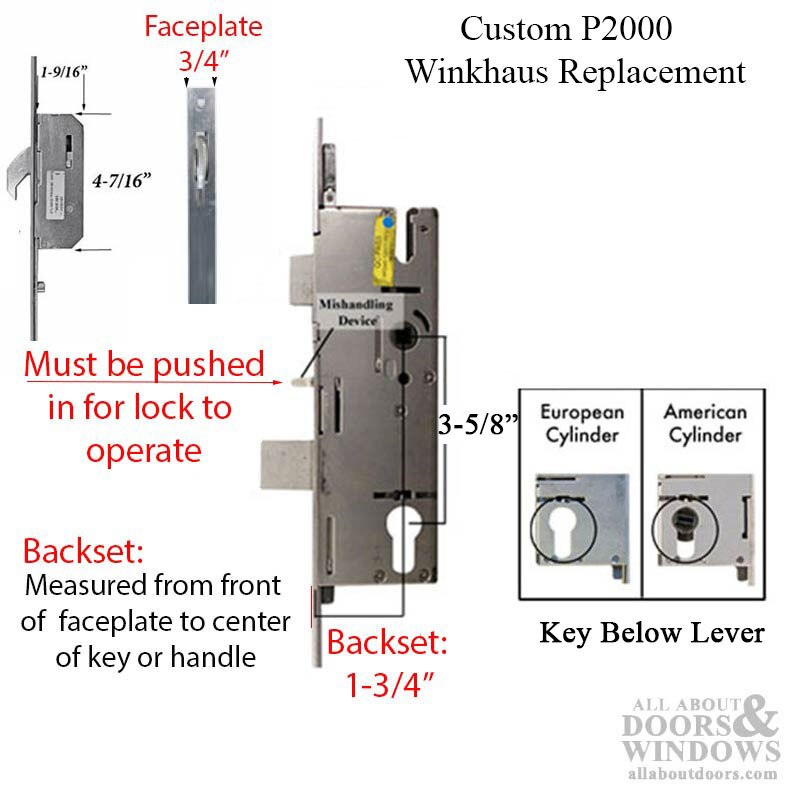

Lock Faceplate Width: 25/32 inch (20mm)
Backset: 1-3/4 inch (45mm)
Handle Height: 38.559" (979.4mm)
Handle Position: Key below lever ( original was key above lever)
Overall Door Height: 92-1/2 inch (1936.75mm) Custom Size
Door Thickness: 1-3/4 inch
Lock Version: American

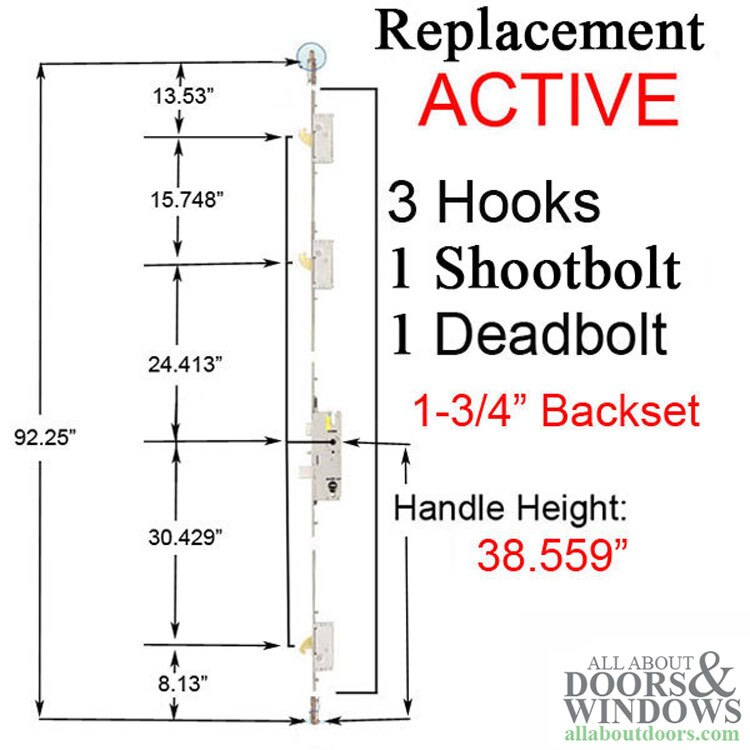

Top Hook Position: 24.413 (to center of Handle) & 40.161 / Shootbolt
Bottom Hook Position: 30.43 inches (772.9mm) to center of Handle

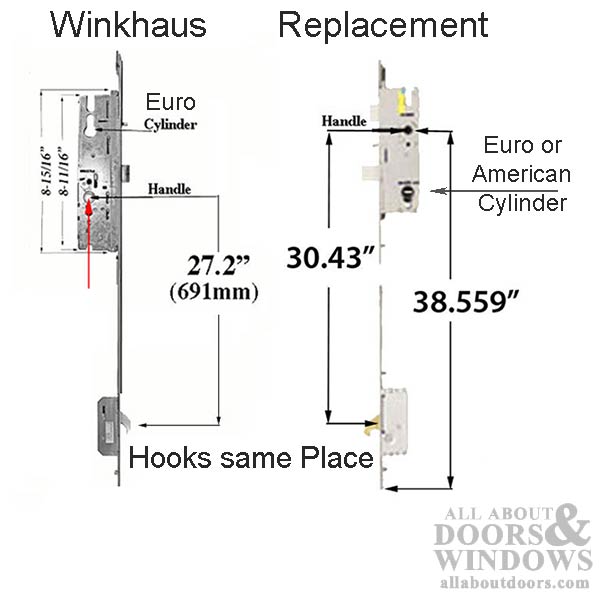

NOTE: The new upper and lower hook positions fit in the same door route as the old Winkhaus lock, the positions have changed in relation to the handle position. The original door had the key above the lever, this one has the Key below changing the handle height changes from 36" to 38-1/2"

Replacement Lock for Winkhaus One Motion Multipoint Single Door
20-8745-2239LA: 20mm Active 45/92 Gear, hook @ 30.43" Handle Height @ 38.559"
20-2238: 20mm P2000 Active Upper 2 Rhino Hook @ 24.413 & 40.161 / Shootbolt Assembly (with new handle height)
8785695: (15) Screws, 8 mm Head, 1-3/8 Length (35 mm) - Stainless Steel
Strike Plates Available Here (double doors may not use a strike plate)

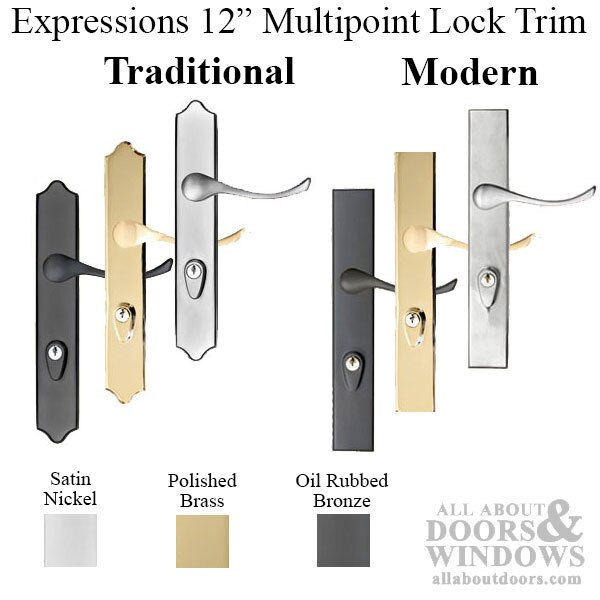

Other Replacement Handleset Trim - We suggest the following For American Version. (not Included)
395007 - Expressions Keyed 2" x 12" with Arch Top
395009 - Expressions Keyed 2" x 12" with Square Top
Available Finishes: Oil Rubbed Bronze, Satin Nickel or Polished Brass
