20mm Winkhaus 45/92 One Motion 71-1/2 -85" Double Door Replacement Kit
Winkhaus One Motion nominal 6'-8" tall Double Door Replacement Kit - 1-3/4 inch Backset
NOTE:

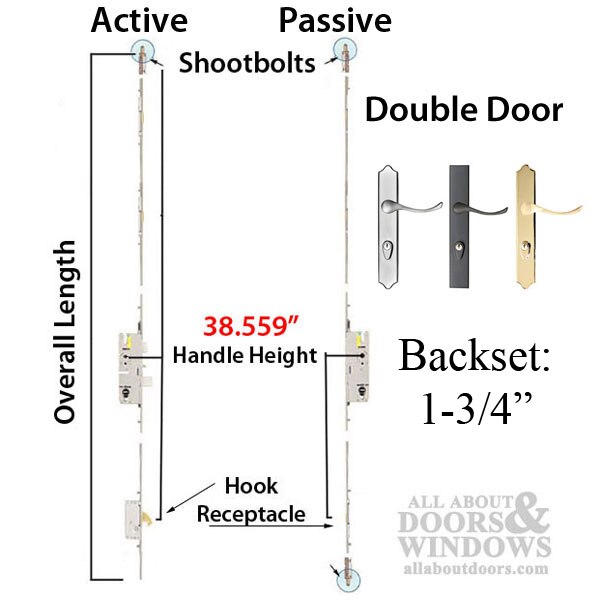

This door system can be used with or without Astragal between the Active and Passive Panel
Active Door - 3 point Lock, Deadbolt, Bottom Hook with Upper Top Shootbolt
Passive Door - 2 point Lock, Bottom Hook Receptacle with Shootbolt & Upper Shootbolt
This Kit fits doors from 71-1/2 to 85 inches - Cut to length for door height
Backset: 1-3/4 " (45mm)
Winkhaus Replacement Double Door Kit for One Motion Multipoint Lock

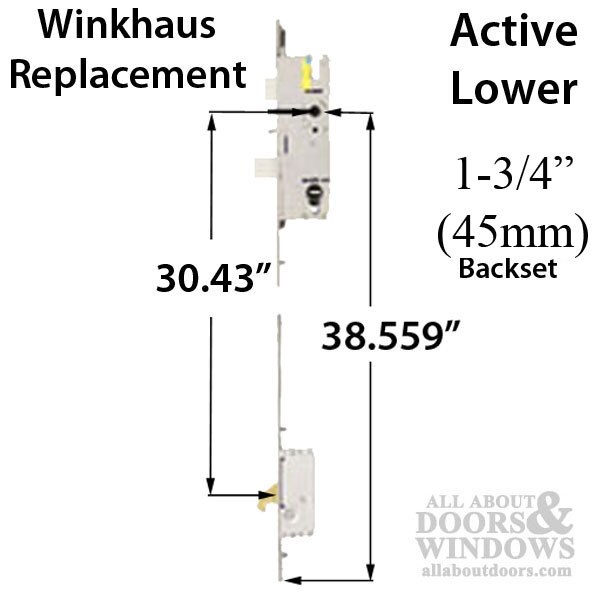

8745-2239-81LA 20mm Active 45/92 Gear w 1 hook 38.559\" HH
20-2294 20mm Middle SB Extension
5670-80-81 20mm Shootbolt Tip
Socket Strike, Brass 20mm
8545-2237-81LA 20mm Passive 45/92 Gear w 1 hook Receptacle & SB
20-2274 20mm Middle SB Extension
5670-80-81 20mm Shootbolt Tip
NO Screws or Strike Plate, Most double doors have a latch ramp on passive panel and the latch and deadbolt locks into.
OPTIONAL HARDWARE
Multipoint Lock Trim - Expressions 2\" x 12\" - No thumb on passive
Trim Style: Traditional or Modern Styles,
Color / Finish: 3 finishes, Polished Brass, Satin Nickel, Oil Rubbed Bronze
Door Thickness: 1-3/4 or 2-1/4
This trim is large enough to cover any existing blemishes on door.
The active side has a thumb, the passive side does not.
HANDING:
To change the direction of spring latch - pull out and spin around
LOCK OPERATION:
To Lock door: Lift the handle to lock door and turn thumbturn to secure in locked position
When the handle is lifted the Deadbolt extends with other locking devices.
To unlock door: Turn thumb turn or key to unlocked position and push down on lever
