20mm P2000 Active 60/92 SPL Mortise Lock Body, American Version Gearbox

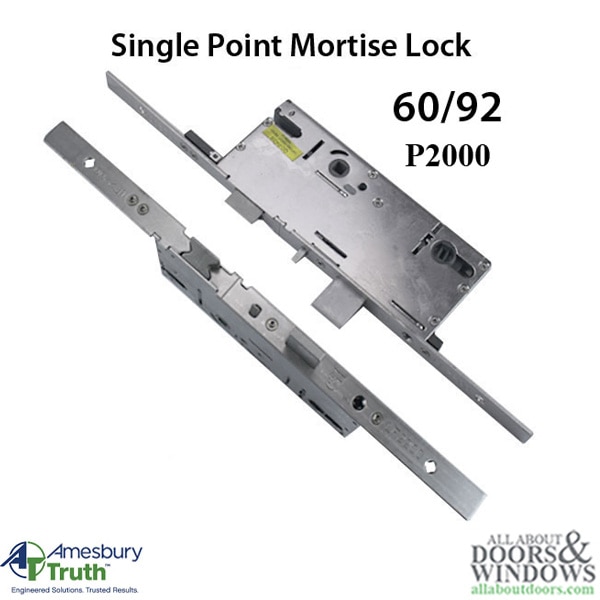

P2000 Active single point lock (SPL) 60/92 Gearbox
The Single Point Lock (SPL) has a deadbolt and spring latch only - It is NOT a Multipoint lock (MPL)

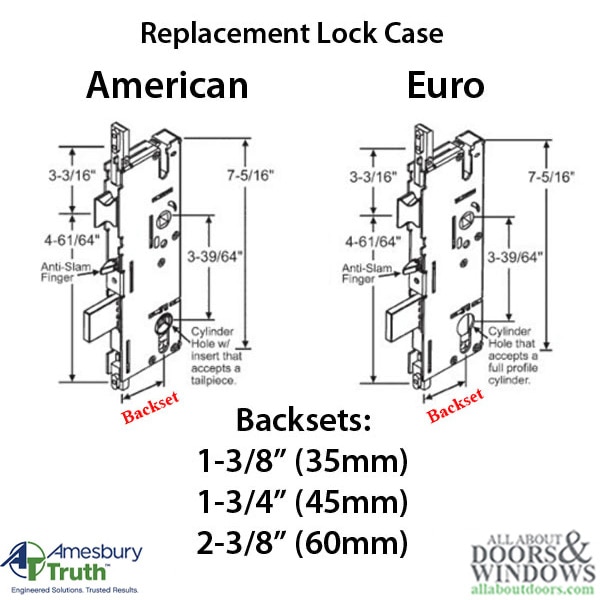

This mortise Lock case will replace the active gearbox on Amesbury MPL with the same size and configuration. Amesbury has 3 different locks - compare information

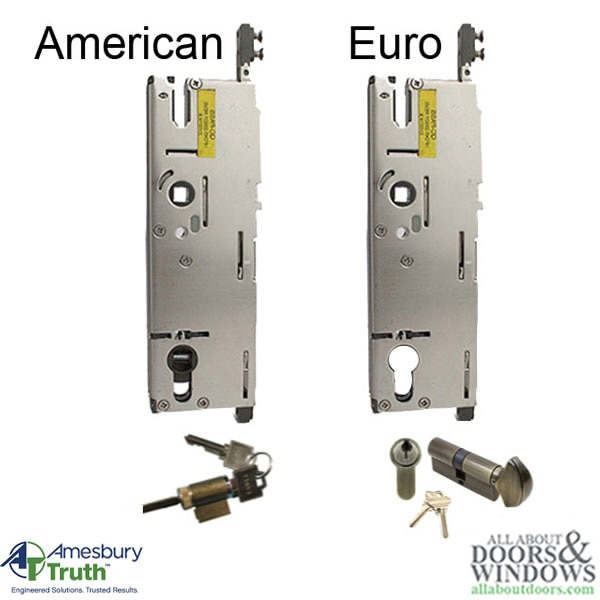

Cylinder Type: American

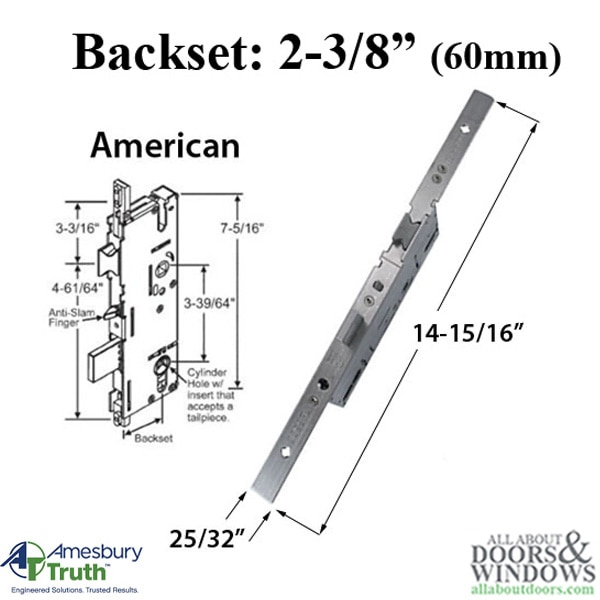

Backset: 2-3/8 inch (60mm)
Handle PZ: 3-5/8 inch ( 92mm)
Deadbolt Throw: 1 Inch (25.4mm)
Faceplate Width: 25/32" (20mm)
Faceplate Markings: LF2200
Lock Depth: 2-1/2 inches (64mm)
To Change Handing / Latch Reversal:
1. Extend the Deadbolt and pull the spring latch out
2. Rotate to correct position
3. Check the function of the lock before closing the door
Installation Note:

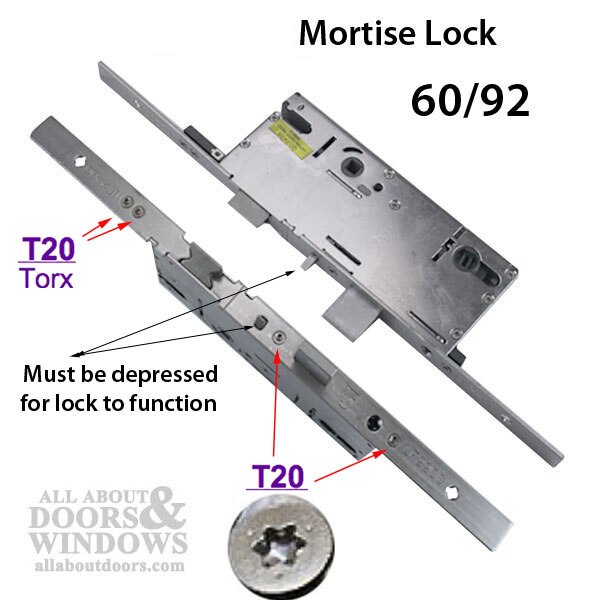

The T-20 torx Star bit screws require 12-13 pounds of torque
