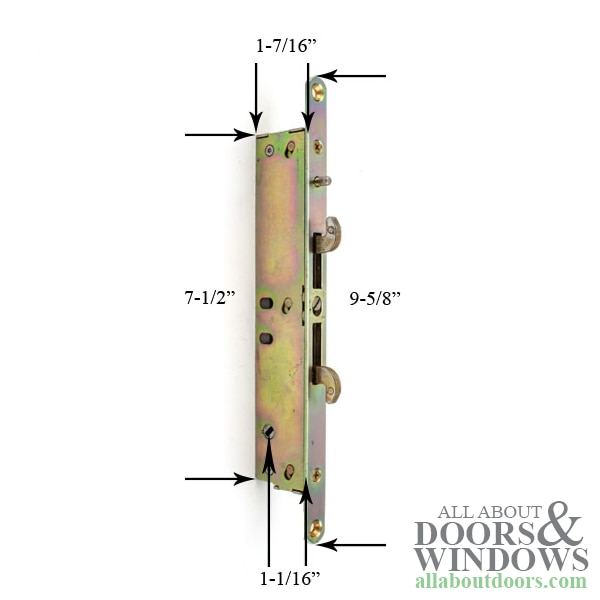

Truth Nexus 2-point Double Hook Sliding Door Lock Outward Hooks
Truth Nexus lock, Internal Latch, 2-point Double Hook Sliding door mortise lock for wood or vinyl doors.
Double Hook Latch insures greater security.
Face plate Width: 5/8" (16mm)
Face Plate Length: 9-5/8" ( 244.3mm)
Markings: MZO
Note 1: This locks comes with 16mm and 20mm faceplates. Standard and Extended adjustment range, Steel or Stainless.
Note 2: Faceplate can be changed using a Torx T-10 bit
Strike for Truth Nexus Lock: 15342
Related Truth 2 point Lock, Long Face, Adjustable Hooks -
Material Faceplate width Adj. Range
13318 - STEEL .63(16 mm) STANDARD
13319 - STAINLESS STEEL .63(16 mm) STANDARD
13320 - STEEL .63(16 mm) EXTENDED
13321 - STAINLESS STEEL .63(16 mm) EXTENDED
13322 - STEEL .79(20 mm) STANDARD
13323 - STAINLESS STEEL .79(20 mm) STANDARD
13324 - STEEL .79(20 mm) EXTENDED
13325 - STAINLESS STEEL .79(20 mm) EXTENDED
Material Faceplate width Adj. Range
13318 - STEEL .63(16 mm) STANDARD
13319 - STAINLESS STEEL .63(16 mm) STANDARD
13320 - STEEL .63(16 mm) EXTENDED
13321 - STAINLESS STEEL .63(16 mm) EXTENDED
13322 - STEEL .79(20 mm) STANDARD
13323 - STAINLESS STEEL .79(20 mm) STANDARD
13324 - STEEL .79(20 mm) EXTENDED
13325 - STAINLESS STEEL .79(20 mm) EXTENDED
