16mm GU Rhino Europa Active, Multipoint Hook/Shootbolt Lock Kit-Stainless Steel

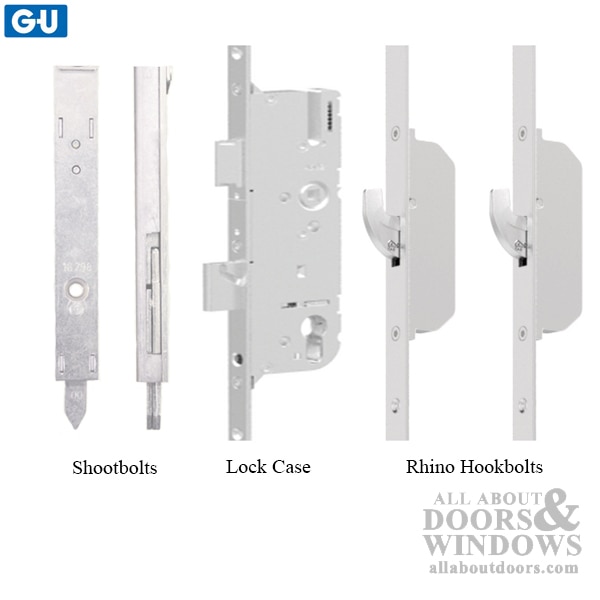

G-U/Ferco Active Multipoint Lock Kit includes:
2 Rhino Hook-bolts and 2 Shoot-bolts
20 Stainless Steel Screws
1 Deadbolt
This kit fits door panels up to 90 inches tall.
For door panels greater than 90 inches, extensions can be purchased separately.
Please contact our office for ordering information.

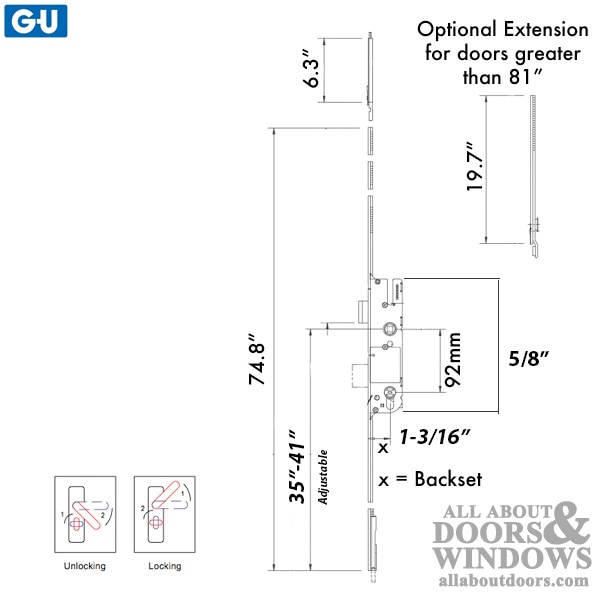

Measurements:
Faceplate Width: 5/8" (16 mm)
Handle Height: 35"
Backsets: 1/3-16" (30 mm)
Handle PZ: 3-5/8" (92 mm)
Overall Length: 79-1/4" (2060mm) The gear can be cut to accommodate shorter door heights.
Handle to Top Hook: 22-3/8" (Measured from the center of handle to the center of hook).
Handle to Bottom Hook: 25-15/16" (Measured from the center of handle to the center of hook).
Cylinder Type: American Cylinder with flat tailpiece.
Lock Body Style: Europa - Key Below Handle
Faceplate Finish: Stainless Steel
Priced and sold as a kit.
2 Rhino Hook-bolts and 2 Shoot-bolts
20 Stainless Steel Screws
1 Deadbolt
This kit fits door panels up to 90 inches tall.
For door panels greater than 90 inches, extensions can be purchased separately.
Please contact our office for ordering information.
Measurements:
Faceplate Width: 5/8" (16 mm)
Handle Height: 35"
Backsets: 1/3-16" (30 mm)
Handle PZ: 3-5/8" (92 mm)
Overall Length: 79-1/4" (2060mm) The gear can be cut to accommodate shorter door heights.
Handle to Top Hook: 22-3/8" (Measured from the center of handle to the center of hook).
Handle to Bottom Hook: 25-15/16" (Measured from the center of handle to the center of hook).
Cylinder Type: American Cylinder with flat tailpiece.
Lock Body Style: Europa - Key Below Handle
Faceplate Finish: Stainless Steel
Priced and sold as a kit.
