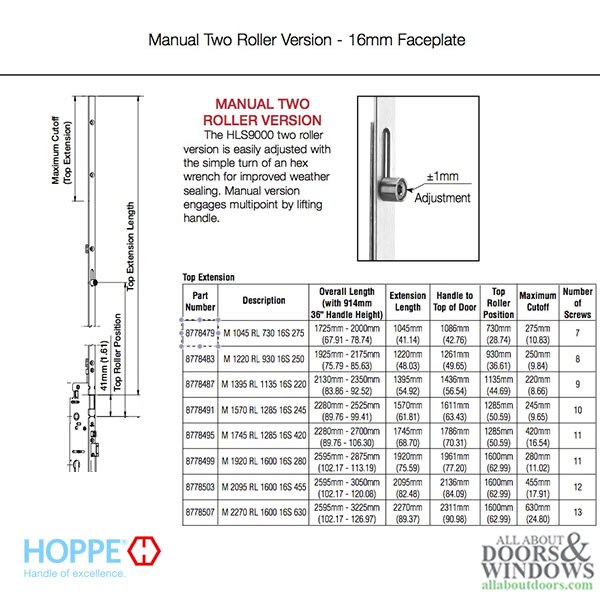

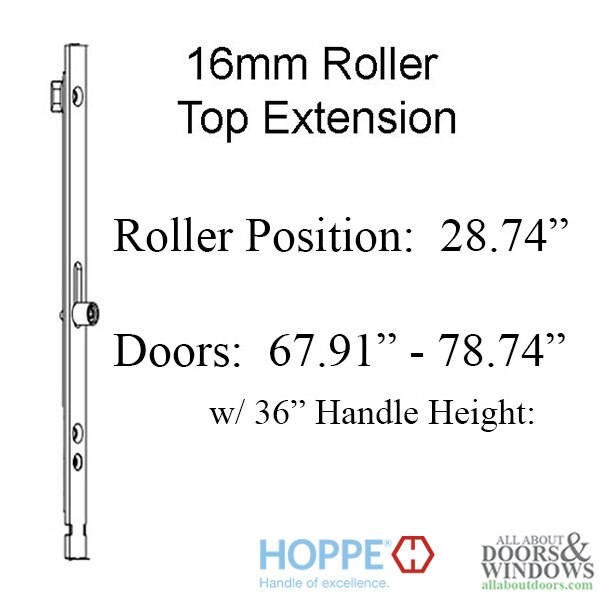

16mm Manual Top Extension, Roller @ 28.74", 41.14" Length
Hoppe HLS9000 Uppper Extensin for Manual Locking Two Roller Version,

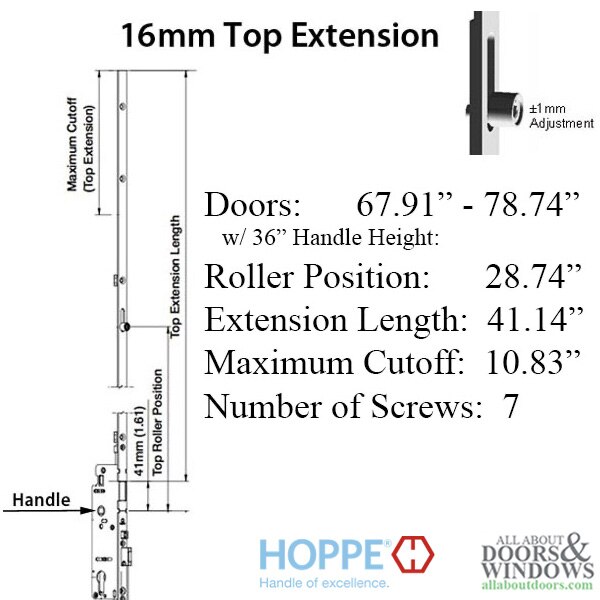

Faceplate Width: 5/8 inch (16mm)
Top Roller Position 28.74 inches
Extension Length: 41.14 inches.
Fits Overall Length (with 36 inch handle Height) Doors 67.91-78.74
inches
Handle Height to top of door: 42.76 inches.
Maximum cut off: 10.83 inches.
To insure you select the correct Multipoint Lock please see our Multipoint Lock Glossary Of Terms
If you are unsure whether or not your lock can be replaced with an Amesbury lock, please fill out this worksheet below:
Hoppe Hinged Door Multipoint Lock Worksheet
When completed, please send it to us here
