16 mm Manual Tongue-Shootbolt 45/92 Gear, Bottom Tongue @ 26.42"

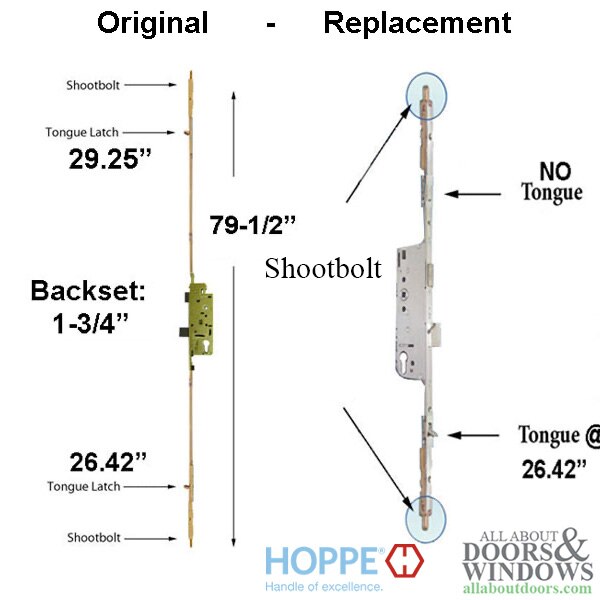

Replacement Multipoint lock for 79-1/2 inch 5-point tongue with shootbolts.
This is a 4-point lock with 1 tongue and shootbolts. The original 1 piece top extension is not available and the top tongue and shootbolt are to close together to use the new hardware.
Faceplate: 5/8"(16mm),

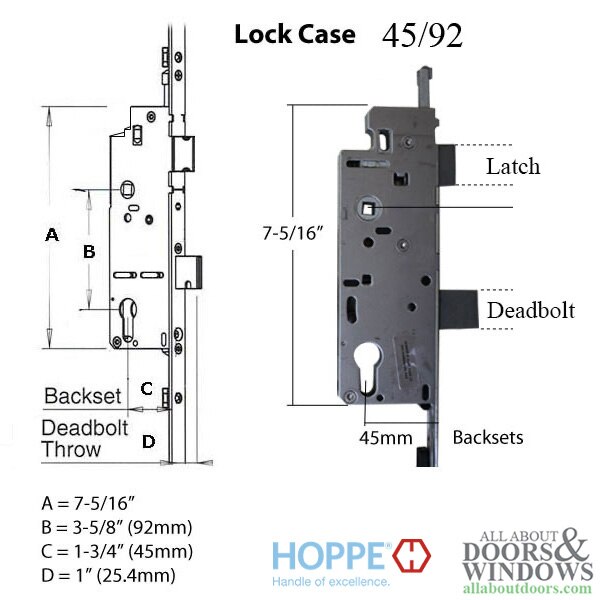

Backset: 1-3/4" (45mm),
DeadboltThrow: 1" (25.4mm),

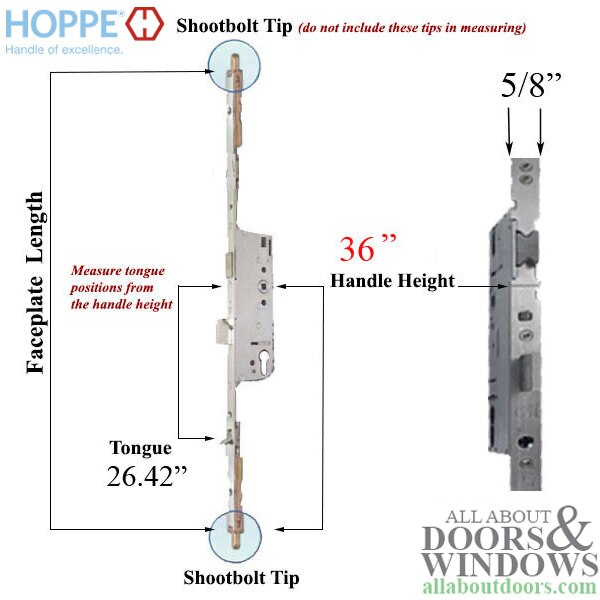

Handle Height: 36" (914mm),
Bottom Tongue Position: 26.42 inches (671mm),
Top Tongue Position: NONE
Top and bottom Shootbolts: Yes
Croppable for different height doors: Yes
Fits doors from 76.61 to 80.55 inches ( 1946-2046mm) with 36" handle height
Hoppe Components for this # 4990214 Kit:
2107477 - 16 mm Manual Tongue with Shootbolt 45/92 Gear, Tongue @ 26.42" (671mm)
8778691 - 16 mm Manual Shootbolt Middle Extension, 27.20 Inch (691mm)
8778611 - 16 mm Manual Shootbolt Top Extension, 15.75 inch (400mm)
2875118 - Cover Plate for Shootbolt Extension
8785695 - Stainless Steel installation Screws (13)
