New Style 90 degree HOPPE non-keyed profile cylinder with Cresent Knob
Used on doors that are 1-3/4 inch or thicker.
Overall housing Length: 40.5mm / 10mm (2 inch)
The New Style 90 degree allows homeowner to look at thumb turn and know if door is locked or unlocked.
This is a Non-keyed cylinder and typically used on inactive / passive doors.
This cylinder can be converted to a 360 degree cylinder.

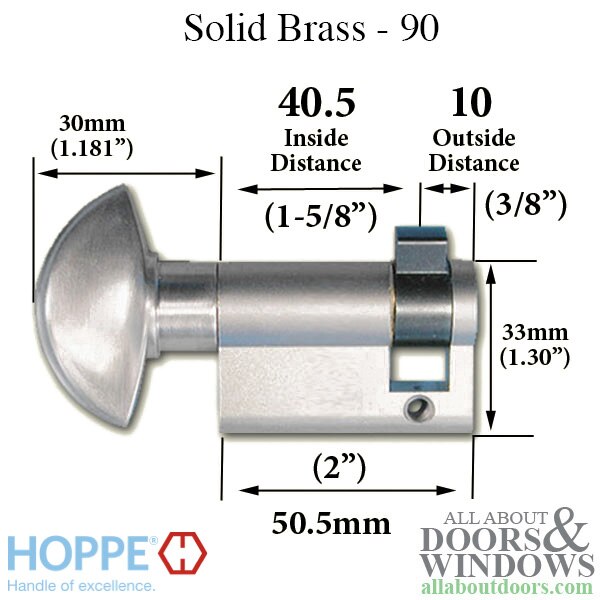

Some finishes are a ''Resista'' : No-Tarnish FinishMeasurements:
Inside Distance = 1-5/8 inch (40.5mm)
Outside Distance = 3/8 inch (10mm)
Overall (inside + outside) = 2 inches (50.5mm) Installation Instructions:
1. Remove Thumb Turn
2. Insert Aux. Tool and pull down on Release Tab
3. Turn cam and insert into lock.

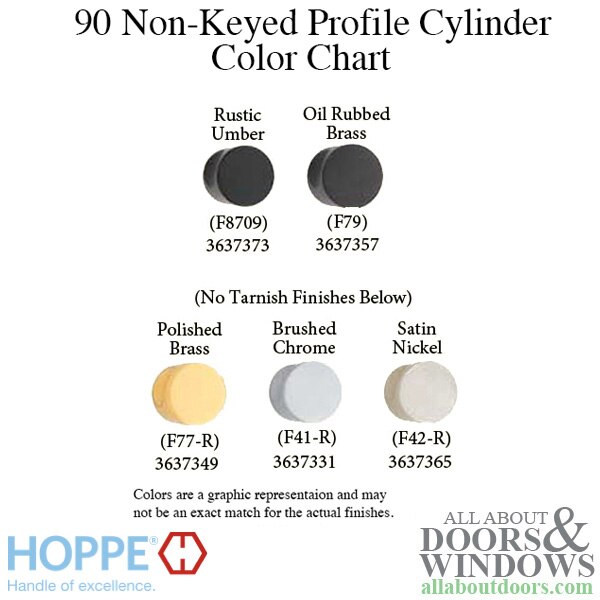

4. Replace Thumb turn.Color / Finish Options:
Rustic Umber (F8709)
Oil Rubbed Brass (F79)
Flat/Matte Black (F9714)
(No Tarnish Finishes)
Polished Brass (F77-R)
Brushed Chrome (F41-R)
Satin Nickel (F42-R)NOTE:
Some colors may be special order, resulting in longer shipping times.Guides: Installing a 90 Degree Cylinder HOPPE Cylinder Installation and Rekeying Converting a HOPPE 90 Degree Cylinder into a 360 Degree Cylinder
