35.5/10 New Style HOPPE Inactive 90° Non-Keyed Profile Cylinder Lock, Solid Brass, Choose Finish

New Style 90° HOPPE Non-Keyed Profile Cylinder with Crescent Knob (Used on doors that are 1-3/4 inch or thicker.)

Overall housing Length: 35.5mm/10mm (1-13/16 inch)

The New Style 90° allows the homeowner to look at the thumb turn and know if the door is locked or unlocked.

This is a Non-keyed cylinder and typically used on inactive/passive doors.

This cylinder can be converted to a 360 degree cylinder.

Some finishes are a ''Resista'', No-Tarnish Finish.

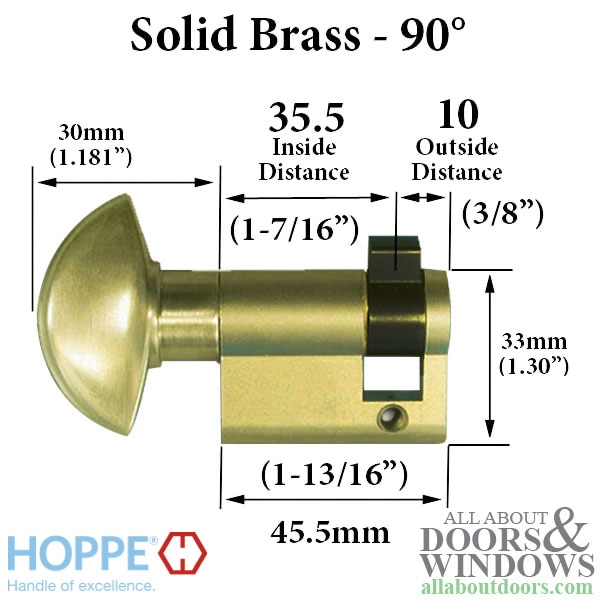

Measurements:
Inside Distance = 1-3/8 inch (35.5mm)
Outside Distance = 3/8 inch (10mm)
Overall (inside + outside) = 1-13/16 inches (45.5mm)

Installation Instructions:
1. Remove Thumb Turn
2. Insert Aux. Tool and pull down on Release Tab
3. Turn cam and insert into lock.
4. Replace Thumb turn.

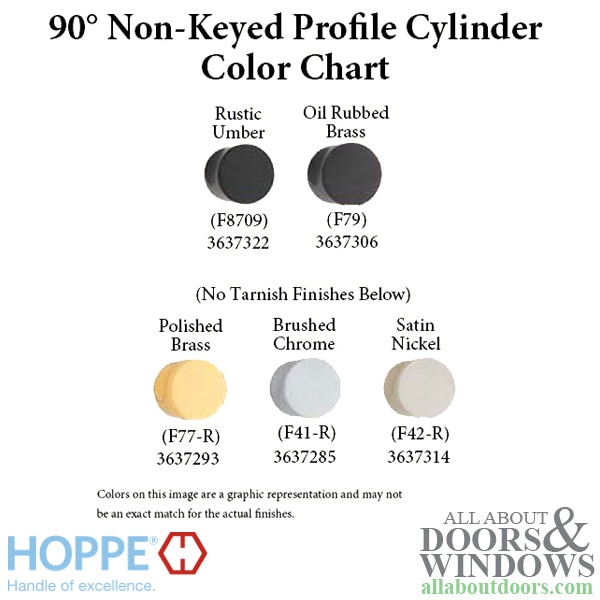

Color / Finish Options:
Rustic Umber (F8709)
Oil Rubbed Brass (F79)

(No Tarnish Finishes)
Polished Brass (F77-R)
Brushed Chrome (F41-R)
Satin Nickel (F42-R)

NOTE:
Some colors may be special order, resulting in longer shipping times.
