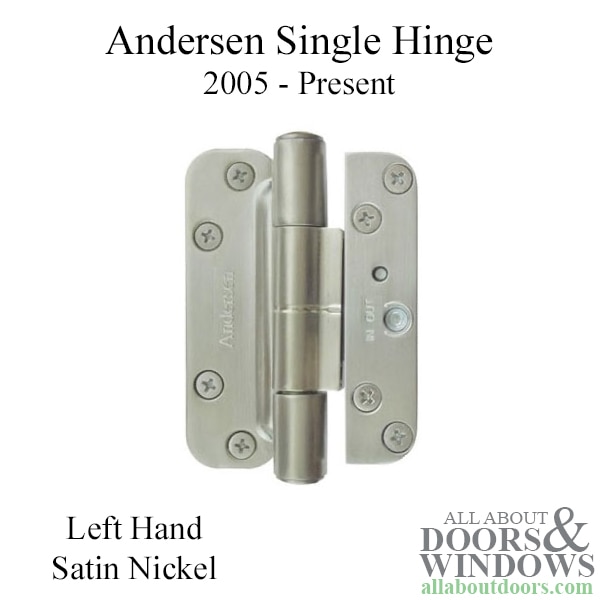

Andersen Single Hinge, Left Hand (2005-Present) - Satin Nickel

Left-hand Hinge for 400 Series Frenchwood Hinged Patio Doors in Satin Nickel Finish

Contents: Includes single hinge (leaf and hinge receiver), screws, and instruction guide.

Specifications:

• Overall Width: 3-1/16 Inches
• Door Panel Length: 3-15/16 Inches
• Door Jamb Length: 4-1/4 Inches
• Handed: Yes
• Color(s): Satin Nickel

NOTE:

If replacing one hinge, replace all hinges on the panel as well.

Andersen has 3 generations of hinges:
1. 1989-1991: These hinges had one hole in the center of the tab.
2. 1992 to November 2005: This generation had two holes.

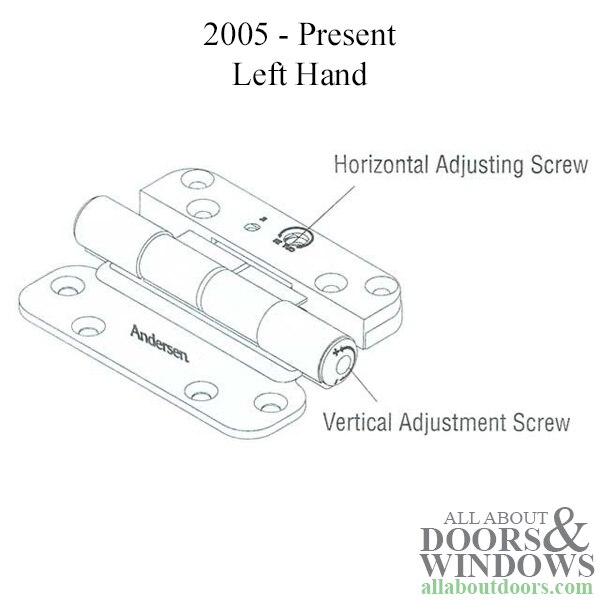

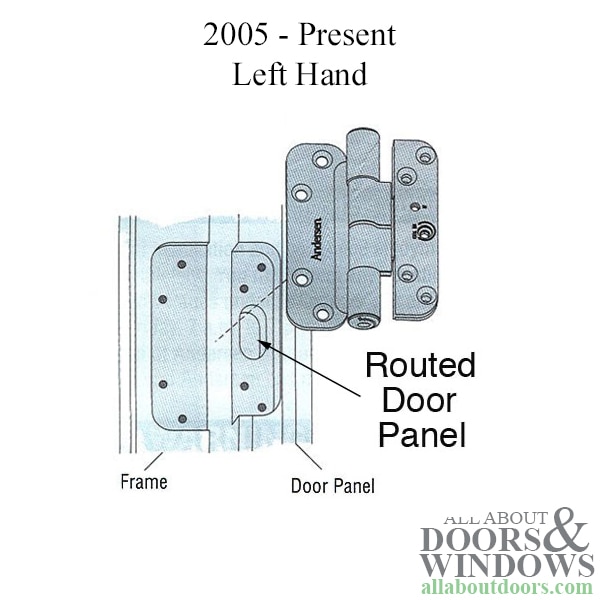

3. November 2005 to present: These hinges are totally different and require modification if being used to replace older hinges. See the first article below for more information.

All About Doors Guide:How to Replace Old-Style Andersen Hinges with New-Style
Manufacturer's Guide 0005105:Adjusting Andersen Hinges Made Pre-November 2005
Manufacturer's Guide 0000127:Adjusting Andersen Hinges Made Post-November 2005
General Information:How to Identify Andersen Hinges
