Sliding Door Roller Assembly with Adjustable Steel Housing 1.125 Inch Steel Ball Bearing Wheel Diameter
Priced each, sold each
1-1/8 inch steel ball bearing roller assembly
Adjustable steel housing assembly
Used by many glass door manufacturers

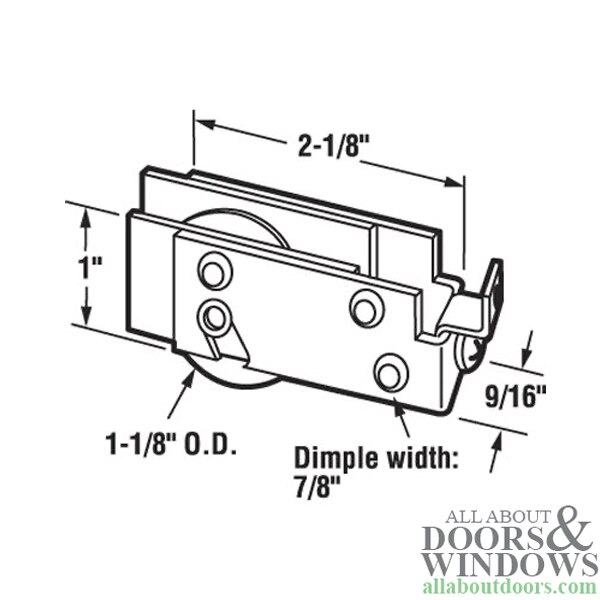

Housing dimensions: thickness, 9/16 inch; length, 2-1/8 inch; height, 1 inch; overall thickness, 25/32 inch.
Diameter: 1-1/8-inch
Housing Tab Style: F-Tab
Housing Width: 9/16-inch
Material: Steel
Roller Diameter: 1-1/8-inch
Roller Edge Type: Concave
Roller Material: Steel
Roller Width: 5/16-inch
Type: Concave
Width: 9/16-inch
Helpful Article:How to Replace Rollers in an Aluminum Sliding Glass Door
1-1/8 inch steel ball bearing roller assembly
Adjustable steel housing assembly
Used by many glass door manufacturers
Housing dimensions: thickness, 9/16 inch; length, 2-1/8 inch; height, 1 inch; overall thickness, 25/32 inch.
Diameter: 1-1/8-inch
Housing Tab Style: F-Tab
Housing Width: 9/16-inch
Material: Steel
Roller Diameter: 1-1/8-inch
Roller Edge Type: Concave
Roller Material: Steel
Roller Width: 5/16-inch
Type: Concave
Width: 9/16-inch
Helpful Article:How to Replace Rollers in an Aluminum Sliding Glass Door
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: D 1699
SlideCo: 13394
Prime-Line Products: D 1699
SlideCo: 13394
